High Strength Floating PV Mounting

Our Floating PV Mounting is designed to install on the water surfaces to reduce evaporation and electricity generation, such as lake, reservoir etc.

It can solve the  traditional mounting station problem of large areas


  • SHIPPING PORTXIAMEN
  • PRODUCT ORGINXIAMEN CHINA
  • BRANDXHFSOLAR
  • MAX WIND SPEED60m/s
  • TILT ANGLEAS PER ROOF
  • COLORGRAY
  • APPLICATIONFIX THE SOLAR PANEL
  • SNOW LOAD 1.4KN/m²
  • DELIVERY7-30 DAYS
  • SERVICE LIFE20-25 YEARS
  • WARRANTY10 YEARS
  • PAYMENT TT/LC
  • MATERIALPLASTIC

XHF Floating Solar Mounting Systems made by HDPE material, through the Hunter water absorption test, anti aging test, anti UV test, and can withstand much higher than other products tensile strength.

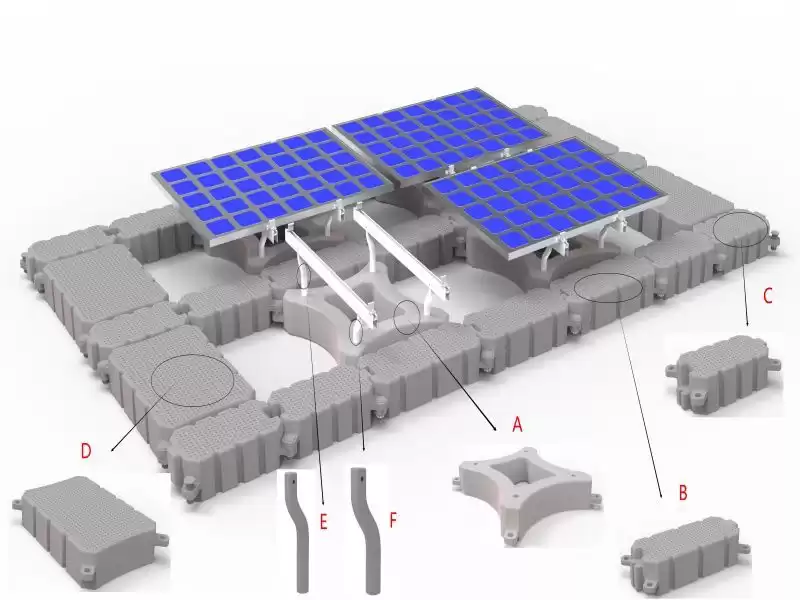

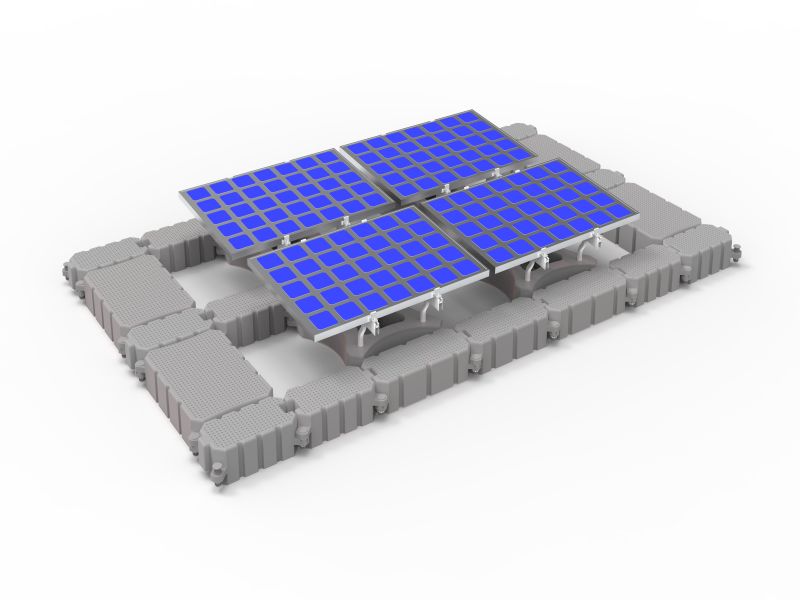

Floating Solar Mounting System

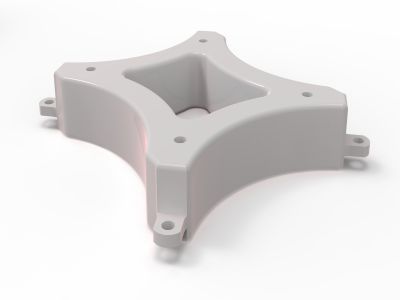

Main Floator/12 1100x1000x441mm

A

Main Floator/12 1100x1000x441mm

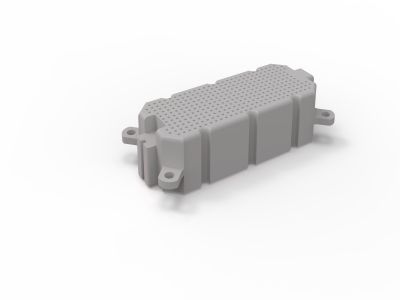

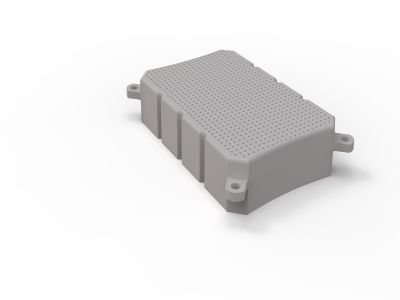

1 # Vice Floator , 1000X500X200 mm

B

1 # Vice Floator , 1000X500X200 mm

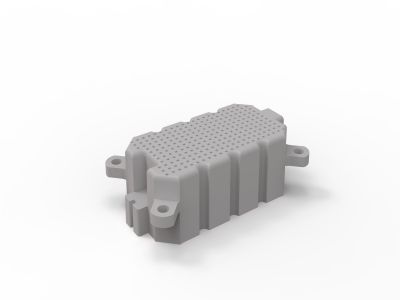

2 # Vice Floator , 1100X500X200 mm

C

2 # Vice Floator , 1100X500X200 mm

3 # Vice Floator 1100X500X200 mm

D

3 # Vice Floator 1100X500X200 mm

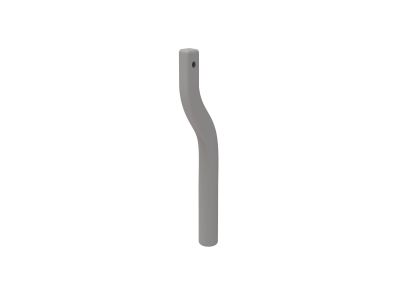

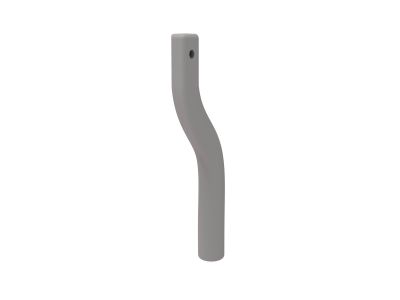

non-kicking front foot

E

non-kicking front foot

non-kicking rear foot

F

non-kicking rear foot

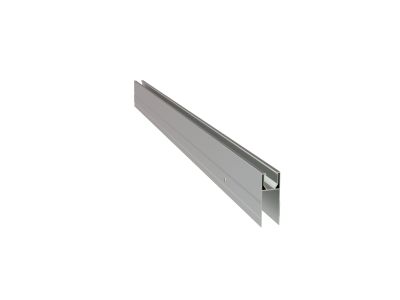

Panel Rail

G

Panel Rail










Parameters
Install Site
Lake, Reservoir
Tilt angle
12 degree
Module Type
Framed or Frameless module
Panel Orientation
Landscape
Material
Plastic
Service life
25 years.

1: Modular design make installation easy and convenient.
2: Cover water surfaces to reduce evaporation.
3: Floater is made by HDPE which ensure long service time.
4: Strong weather ability, easy to operation and maintenance.
5: Decrease occupation of land resource.
6: Cooling module and Increase 10%-15% generation.
7:Compatible with various solar module, save the cost; Various array design, easier to combine;


HDPE material, through the Hunter water absorption test, anti aging test, anti UV test, and can withstand much higher than other products tensile strength. The float and the main float adopt the new module design, which can realize the double row in the same direction or symmetric direction, improve the efficiency and installed capacity of solar power generation, easy installation and cost saving. It has a lifespan of more than 25 years.



Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.


We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.


Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.


Price
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
Quality
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
Market
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
Delivery time
7-30 days
Payment term
Flexible
Tech support
OEM,OGM
After Service
10 years warranty+ 25 long service
