Standard size z purlin features
☆ Optional quality standards for choices:
You can require GB,ASTM,AS or EN standards.
☆ Saving cost:
Compared to hot rolled purlins,Saving up to 35-40% in weight and 20% in cost
☆ Stable size:
Yumisteel assure precise dimensions and straightness.Tailor made section lengths lead to no wastage and speedy erection.Close tolerances on sectional dimensions due to process of cold roll forming.
☆ Fast and easy installation:
The purlins are supplied in customized lengths with pre-punched holes.In this way,reduction in constrained time and cost in fabrication & erection and no wastage.
☆ Eco-friendly material:
Zed purlins can be used for several times and be recycled.

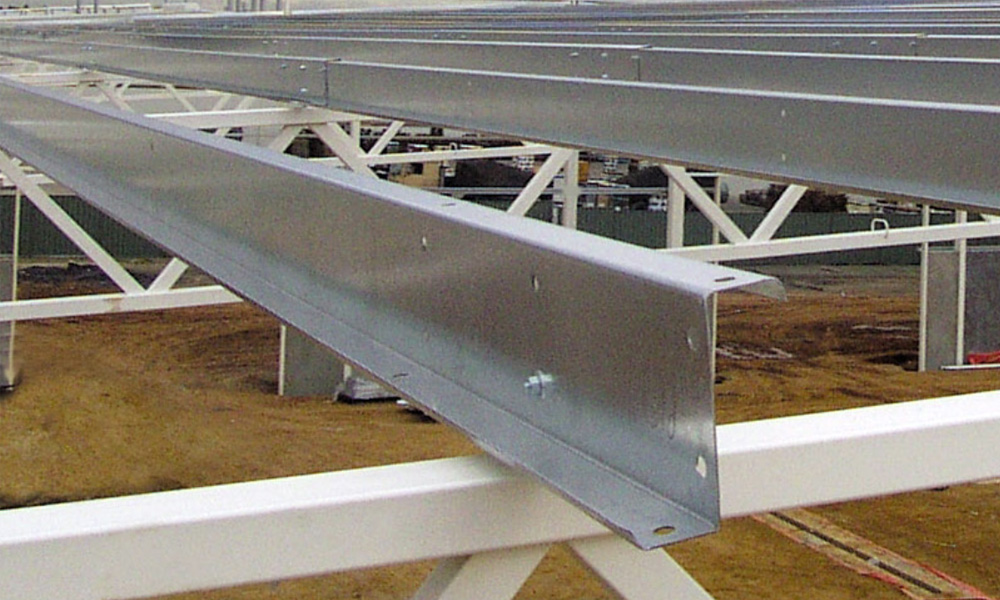

Shed purlins application
It's widely use for industrial buildings, garages, verandahs, and carports, in fact anywhere that strong reliable steel framing is required,especially for the roof system with large slope.

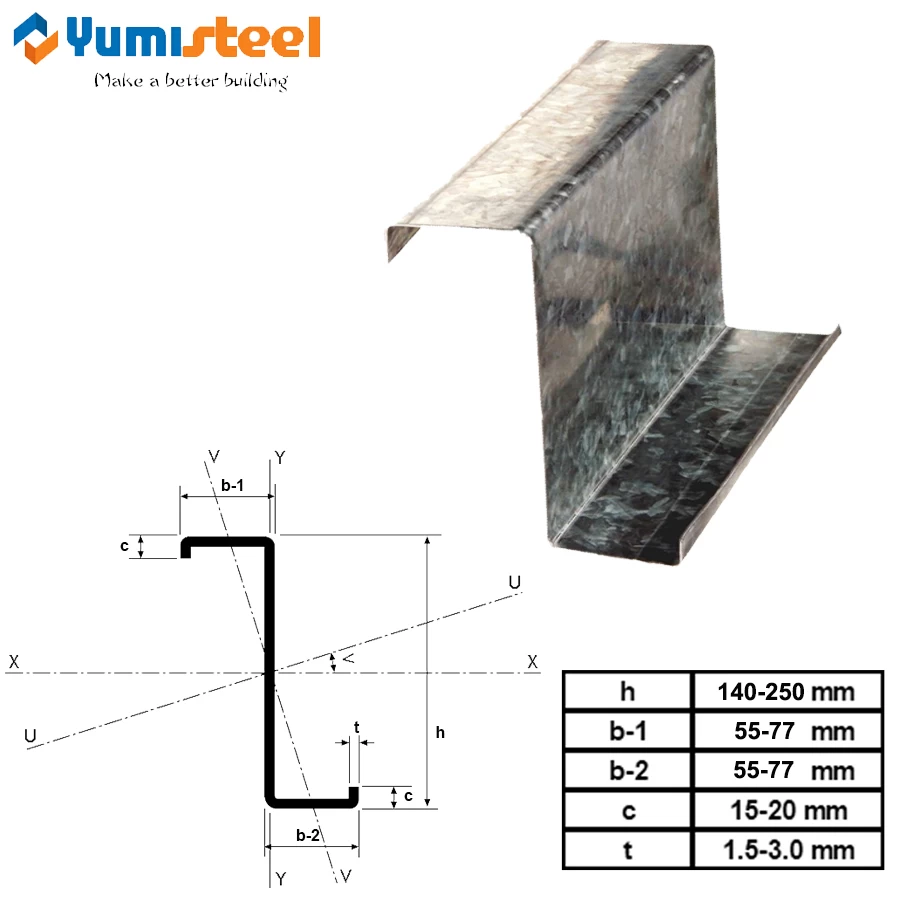

Z purlin regular specifications
|
Model NO.
|
Size details
|
Thickness(mm)
|
Punching Holes
|
|
h
|
b-1
|
b-2
|
c
|
|
Z140
|
140
|
55
|
55
|
20
|
1.7-3.0
|
Could be punched,as per customer's requirement
|
|
140
|
53
|
57
|
20
|
1.7-3.0
|
|
Z160
|
160
|
53
|
57
|
20
|
1.7-3.0
|
|
160
|
55
|
55
|
20
|
1.7-3.0
|
|
Z180
|
180
|
63
|
67
|
20
|
1.7-3.0
|
|
180
|
57
|
63
|
20
|
1.7-3.0
|
|
Z 200
|
200
|
57
|
63
|
20
|
1.7-3.0
|
|
Z220
|
220
|
57
|
63
|
20
|
1.7-3.0
|
|
220
|
63
|
67
|
20
|
1.7-3.0
|
|
Z 250
|
250
|
63
|
67
|
20
|
1.7-3.0
|
|
250
|
68
|
72
|
20
|
1.7-3.0
|
|
250
|
73
|
77
|
20
|
1.7-3.0
|
For more data details，please download our catalog.Thank you.

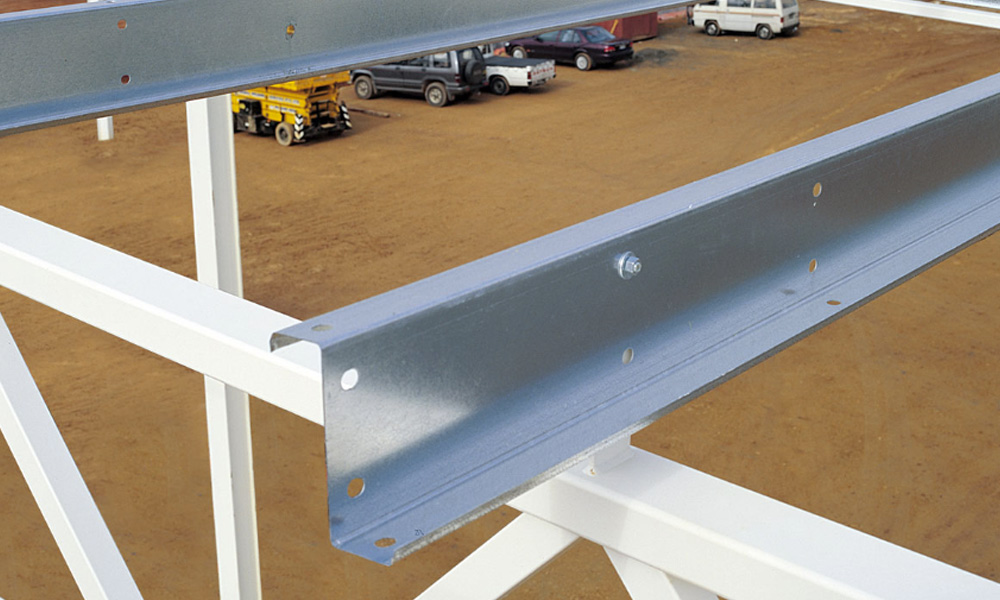

Zee purlins renderings
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
Packed in stack with steel strips,and then loaded in containers.If you have special packing requirement,please feel free to discuss with us,thank you.
☆ Delivery:
Delivery time for small order with stock material: 7-10 days ;
Delivery time for special requirement and thickness: 20-30 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
