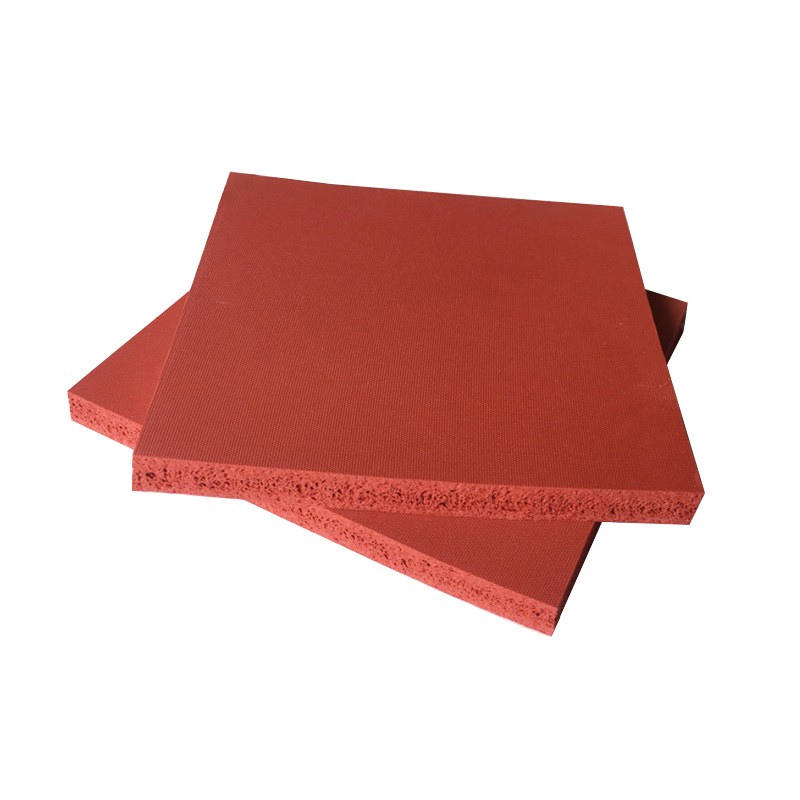

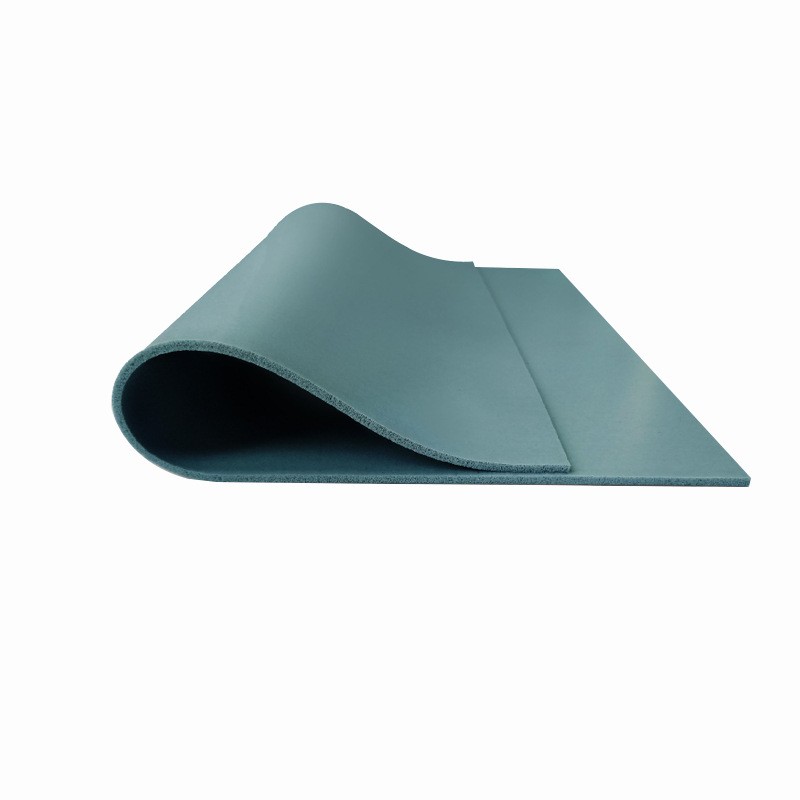

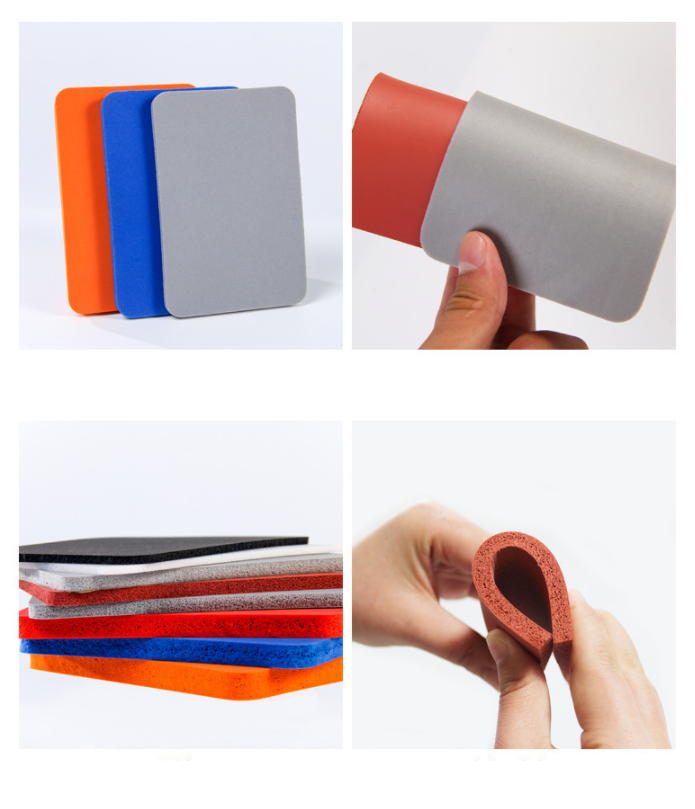

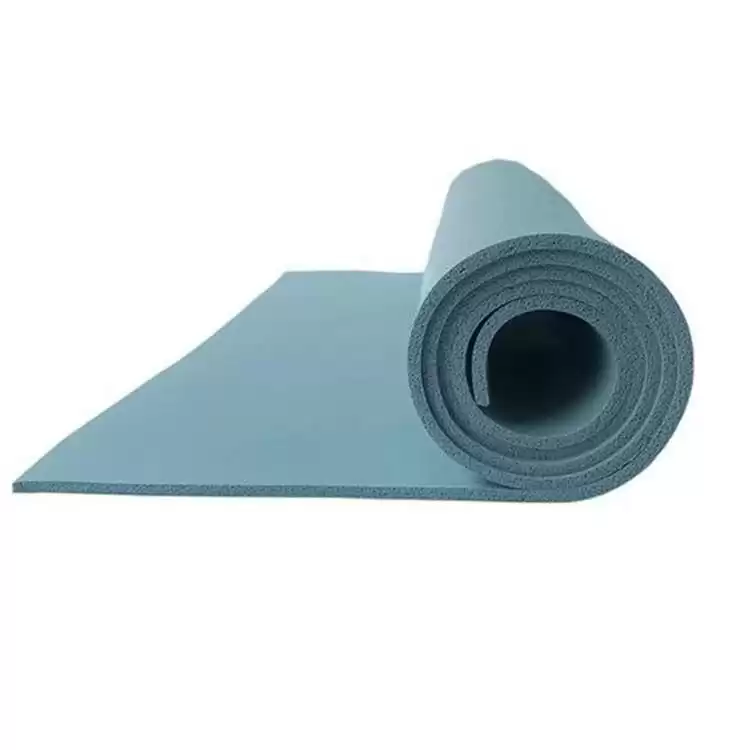

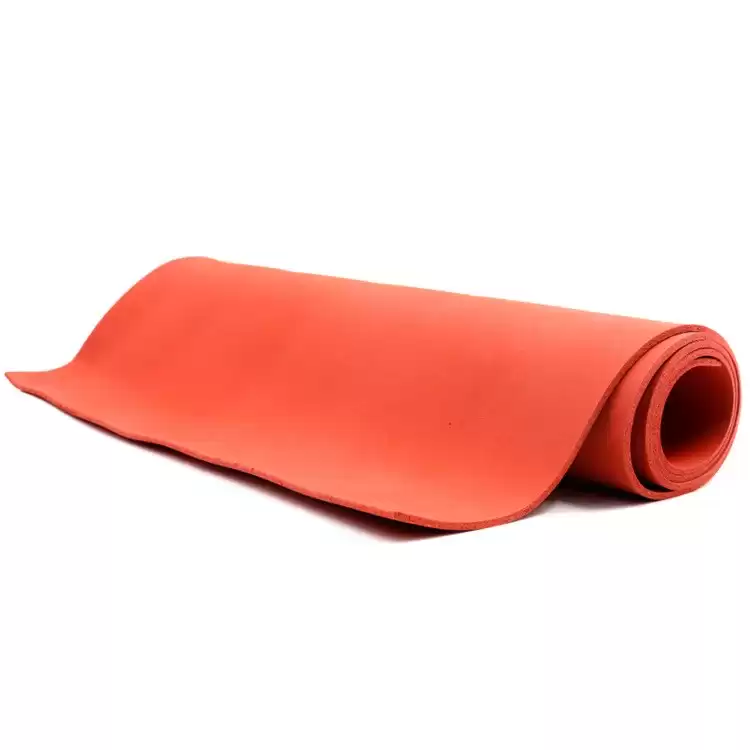

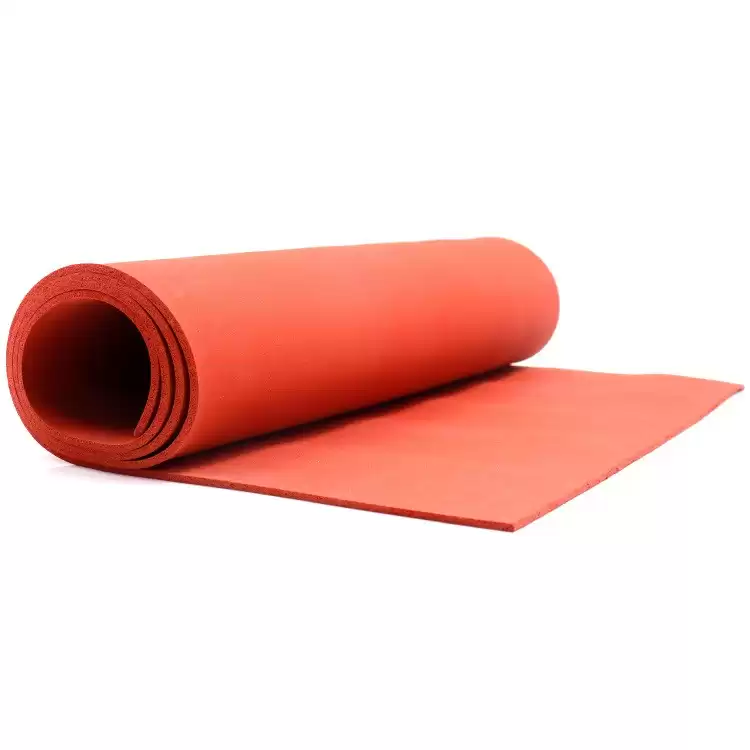

High Temperature Corrosion Resistant Foam Flame Retardant Fabric Silicone Foam Sheet

Material Silicone

Color Translucence

Function High temperature resistant

Feature Environmentally friendly and nontoxic

Usage Industrial products




  • ThicknessCustomer
  • WidthCustomer
  • LengthCustomer

High Temperature Corrosion Resistant Foam Flame Retardant Fabric Silicone Foam Sheet



  • Silicone rubber sponge parts have better toughness than silicone rubber sponge parts. Wide operating temperature Silicone rubber sponge has a temperature range of -58°f to 500°f (-50°c to 260°c). Water Enclosure - The closed cell structure allows for good water enclosure with relatively low compressive forces. Resistance to Compression Set - Silicone offers excellent resistance to compression set (ability to spring back to original thickness), especially at higher temperatures, compared to most rubber materials.





 Product Description



  • Low compression set silicone rubber sponges have better performance than general purpose sponges. UV and Ozone Resistance - Silicone products have excellent UV and ozone resistance, in part due to their inorganic backbone. This provides long-term performance.



 Product Use

  • Silicone foam is one of the raw materials for the finished pulp. It is often used with fabric cover cloth and felt cloth, and the bottom is silicone rubber. Finished cotton is used in various machines such as autoclave, ironing table, vacuum ironing table, etc. It also has applications in aviation, shipping, etc.





Physical Properties



NO.  Test Item  Test Method  Result  Conclusion
1 Compression Deflection  ASTM D1056-14Section 17~23  12.7psi  /
2  Compression Set With reference to ASTMD1056-14 Section50~56 and client's requirement 4%  /
3 Density With reference to ASTM D792-13 Method Band client's requirement  0.385g/cm3  /
4  Dielectric Strength GB/T 1695-2005 5.51kV/mm  /
5 Low TemperatureResistance Test Provided by client No damage  /
6  Tensile Test With reference to ASTM D412-16 Method A and client's requirement
 Tensile Test   0.651MPa
Elongation at Break  230%
/
7 Volume Resistivity  GB/T1692-2008  4.23x1016Ω·cm  /
8 Water Absorption ASTMD570-98(2018) 0.68% /
