Description:

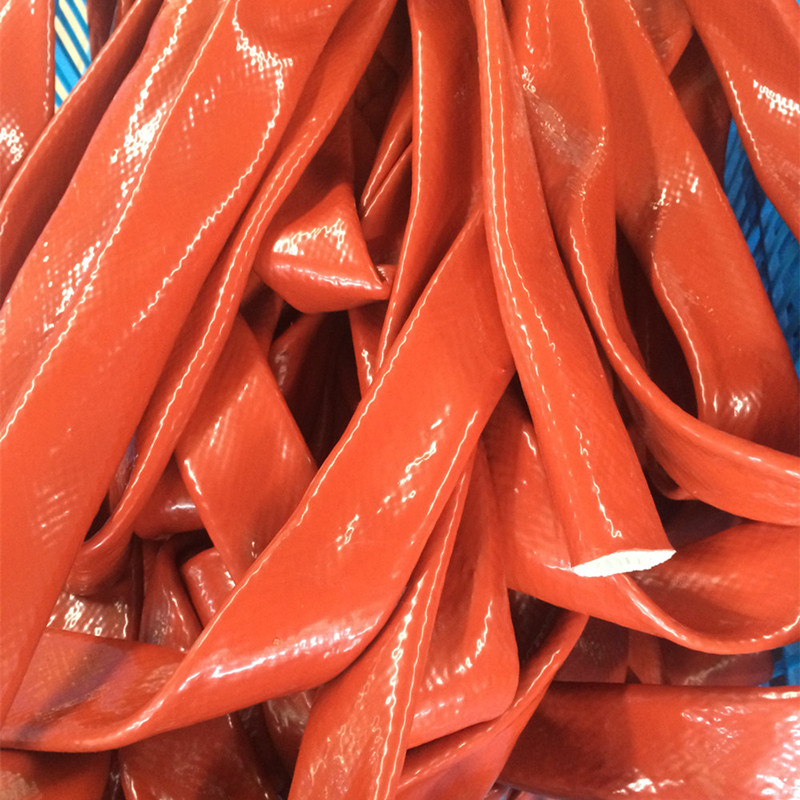

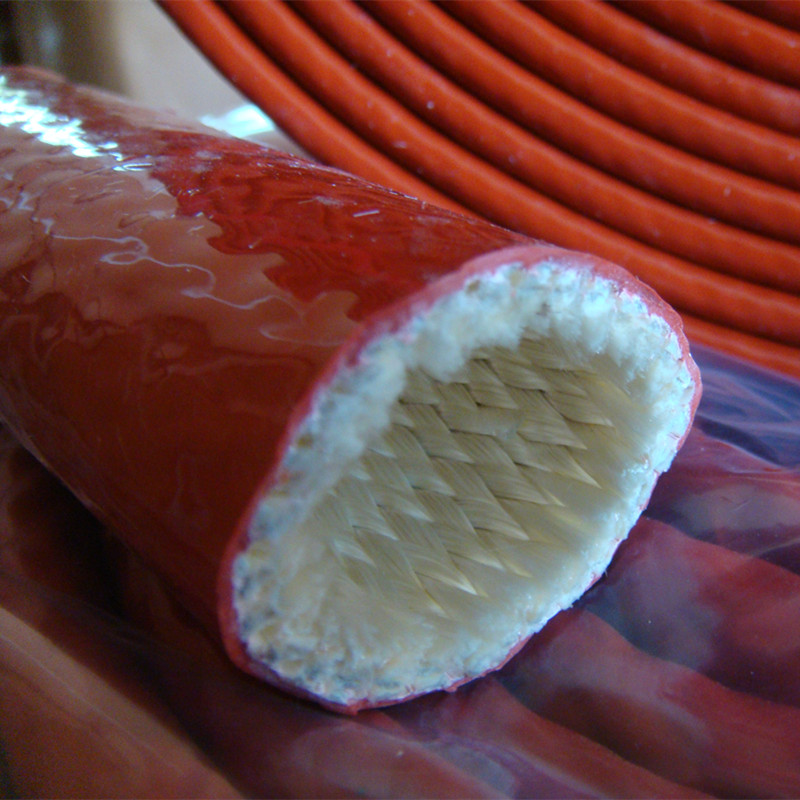

EFRS standard high temperature hose sleeve firesleeve is a perfect solution to protect cables, wires and hoses with very high temperature. Made of braided fiberglass yarns in a flexible substrate, then coated with a high grade silicone rubber.
Features:
It offers excellent short term flame protection and great insulation properties for high temperature.
Resistant to hydraulic fluids, oils and fuels and can protects against molten splash and flames.
Application:

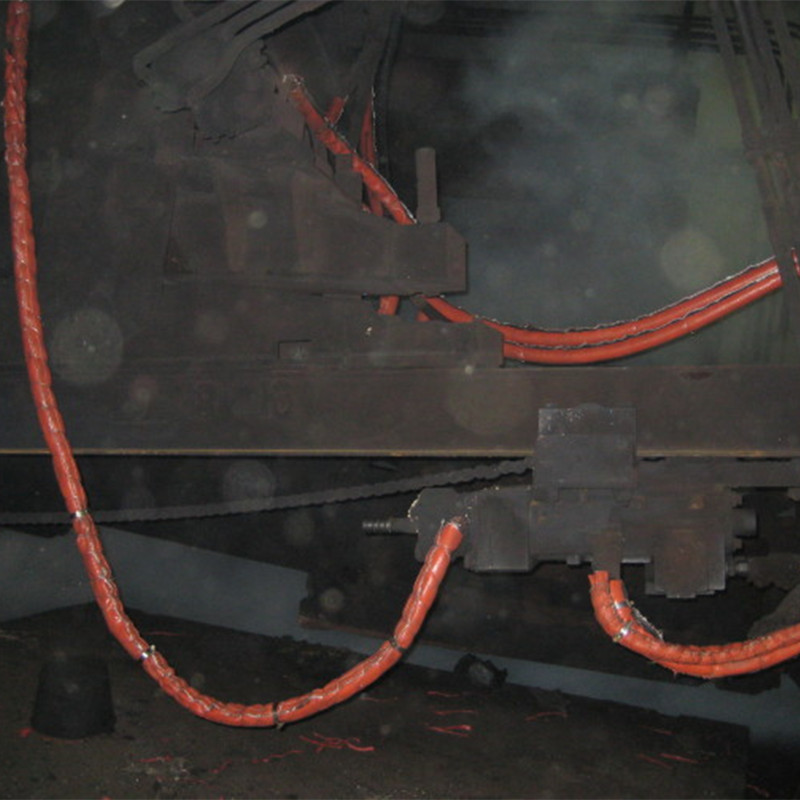

It’s mainly used in steelworks, glass and ceramic industry, in railway and some other fields.
Used to protect fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer.
Specifications:
|
Part Number
|
Normal Inside diameter
|
Meter for spool
|
|
Inches
|
mm
|
Dash #
|
Meter
|
|
EFRS-6
|
1/4
|
6
|
-4
|
20
|
|
EFRS-8
|
5/16
|
8
|
-5
|
20
|
|
EFRS-10
|
3/8
|
10
|
-6
|
20
|
|
EFRS-11
|
7/16
|
11
|
-7
|
20
|
|
EFRS-13
|
1/2
|
13
|
-8
|
20
|
|
EFRS-16
|
5/8
|
16
|
-10
|
20
|
|
EFRS-19
|
3/4
|
19
|
-12
|
20
|
|
EFRS-22
|
7/8
|
22
|
-14
|
20
|
|
EFRS-25
|
1
|
25
|
-16
|
20
|
|
EFRS-29
|
1 1/8
|
29
|
-18
|
20
|
|
EFRS-32
|
1 1/4
|
32
|
-20
|
20
|
|
EFRS-35
|
1 3/8
|
35
|
-22
|
20
|
|
EFRS-38
|
1 1/2
|
38
|
-24
|
20
|
|
EFRS-41
|
1 5/8
|
41
|
-26
|
20
|
|
EFRS-44
|
1 3/4
|
44
|
-28
|
20
|
|
EFRS-48
|
1 7/8
|
48
|
-30
|
20
|
|
EFRS-51
|
2
|
51
|
-32
|
20
|
|
EFRS-57
|
2 1/4
|
57
|
36
|
20
|
|
EFRS-60
|
2 2/5
|
60
|
-38
|
20
|
|
EFRS-64
|
2 1/2
|
64
|
-40
|
20
|
|
EFRS-67
|
2 5/8
|
67
|
-42
|
20
|
|
EFRS-70
|
2 3/4
|
70
|
-44
|
20
|
|
EFRS-73
|
2 7/8
|
73
|
-46
|
20
|
|
EFRS-76
|
3
|
76
|
-48
|
20
|
|
EFRS-83
|
3 1/4
|
83
|
-52
|
20
|
|
EFRS-89
|
3 1/2
|
89
|
-56
|
20
|
|
EFRS-95
|
3 3/4
|
95
|
-60
|
20
|
|
EFRS-102
|
4
|
102
|
-64
|
20
|
|
EFRS-114
|
4 1/2
|
114
|
-72
|
20
|
|
EFRS-121
|
4 3/4
|
121
|
-76
|
20
|
|
EFRS-127
|
5
|
127
|
-80
|
20
|
|
EFRS-152
|
6
|
152
|
-96
|
20
|
|
Technical Datasheet
|
|
Material
|
Silicone, fiberglass
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+1650℃
|
|
Standard Color
|
Iron oxide red
|
|
MOQ
|
20 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:

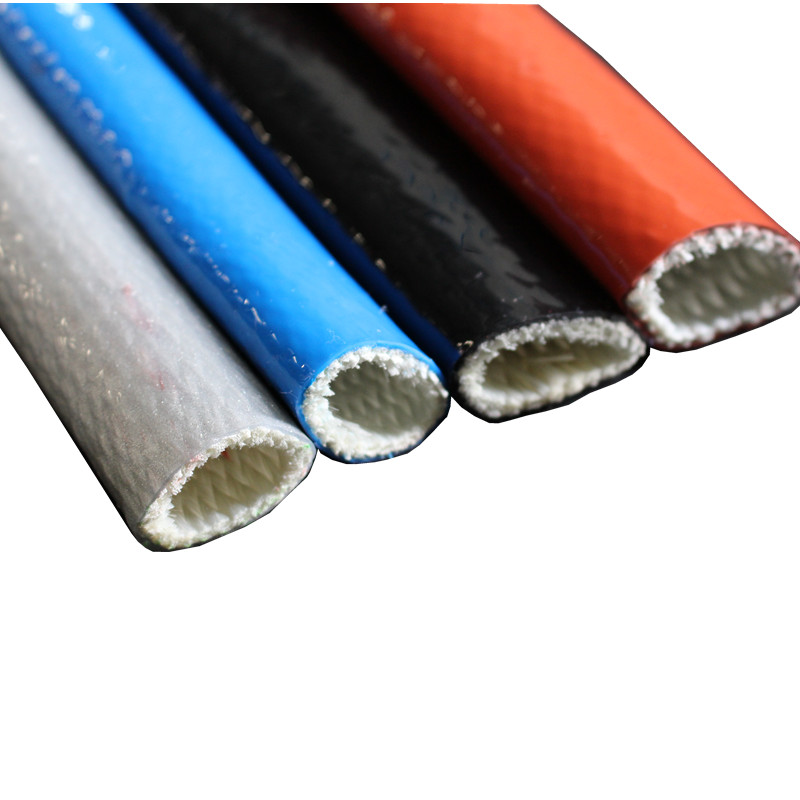

The part NO. will be followed by BK for black color, GR for gray color, OR for orange color, BL for blue color.
Special thickness upon request
Special length or packing upon request.
Customs LOGO upon request.
