High Temperature Textiles Silica Fabric With Adhesive Backed

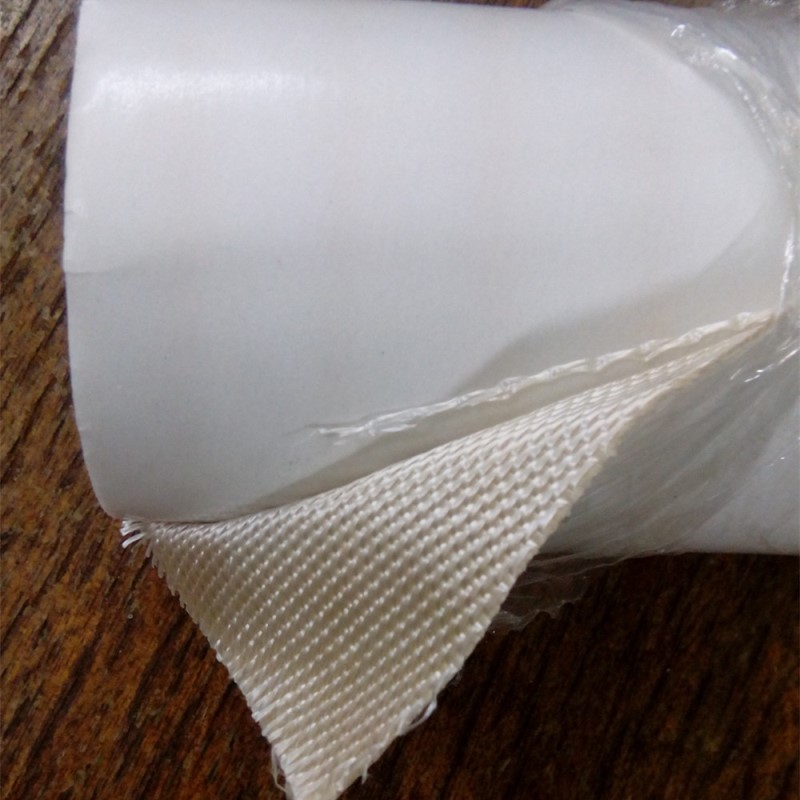

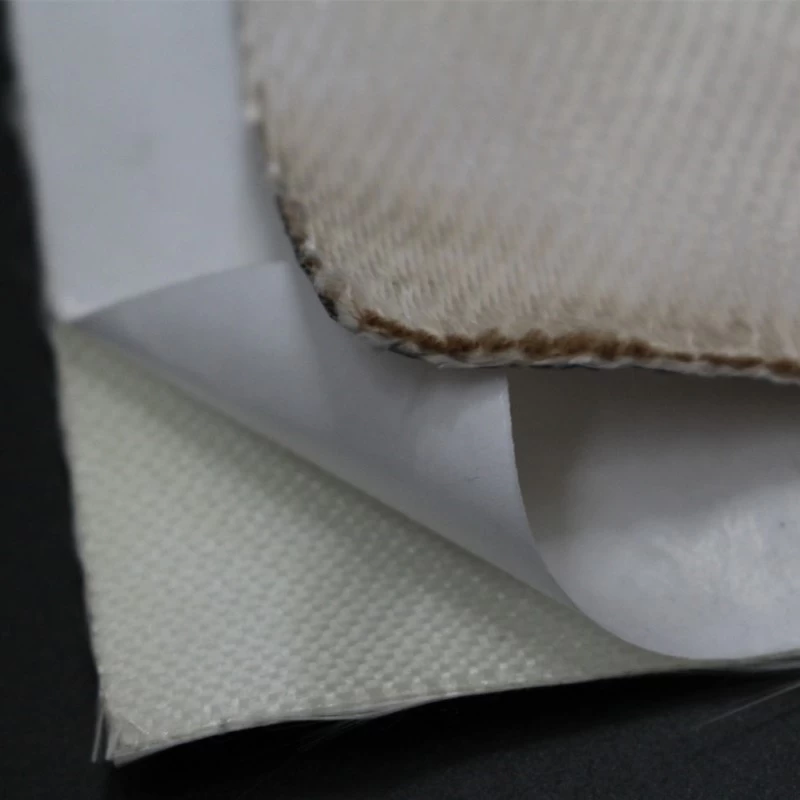

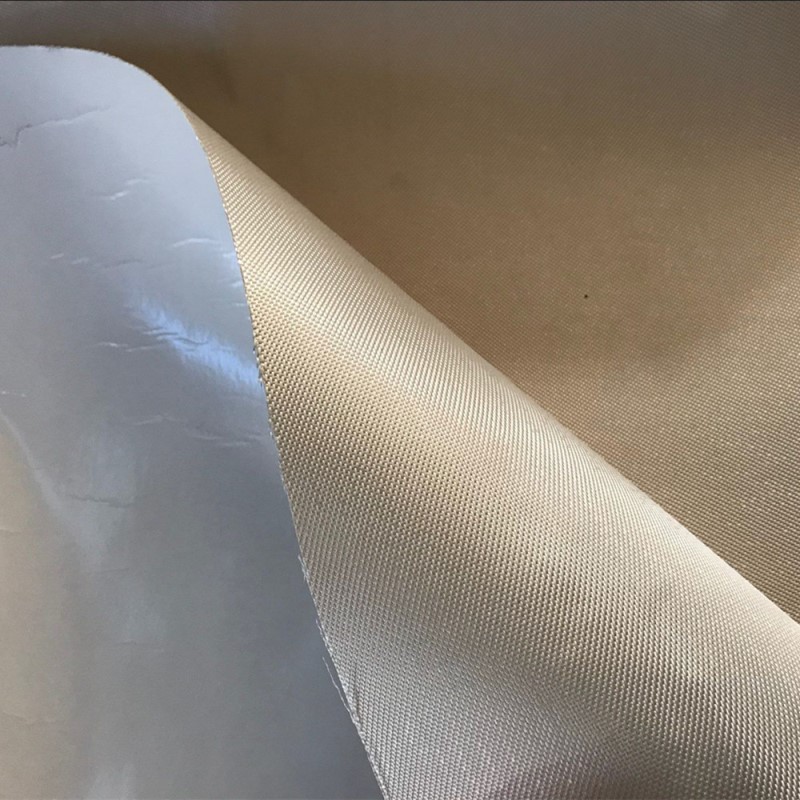

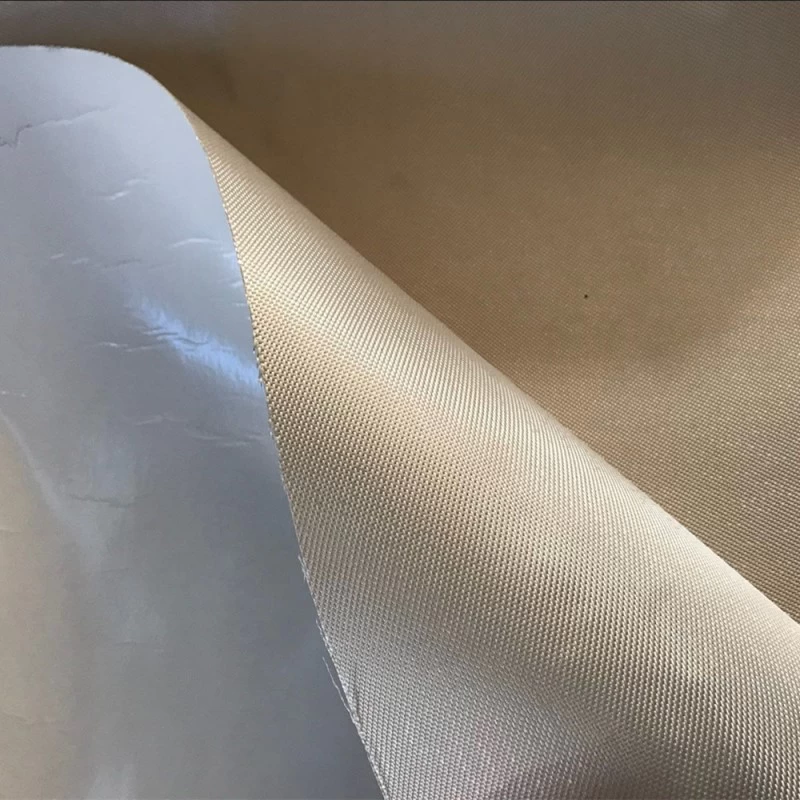

High Temperature Textiles Silica Fabric With Adhesive Backed suitable for use at 1800°F (982°C), and able to withstand short term exposure up to 3000°F (1650°C), adhesive backed woven silica textile blanket is constructed from a 96% pure SiO2 silica fiber, coated one side with pressure-sensitive adhesive. adhesive backed silica blankets can be cut on site to almost any shape.

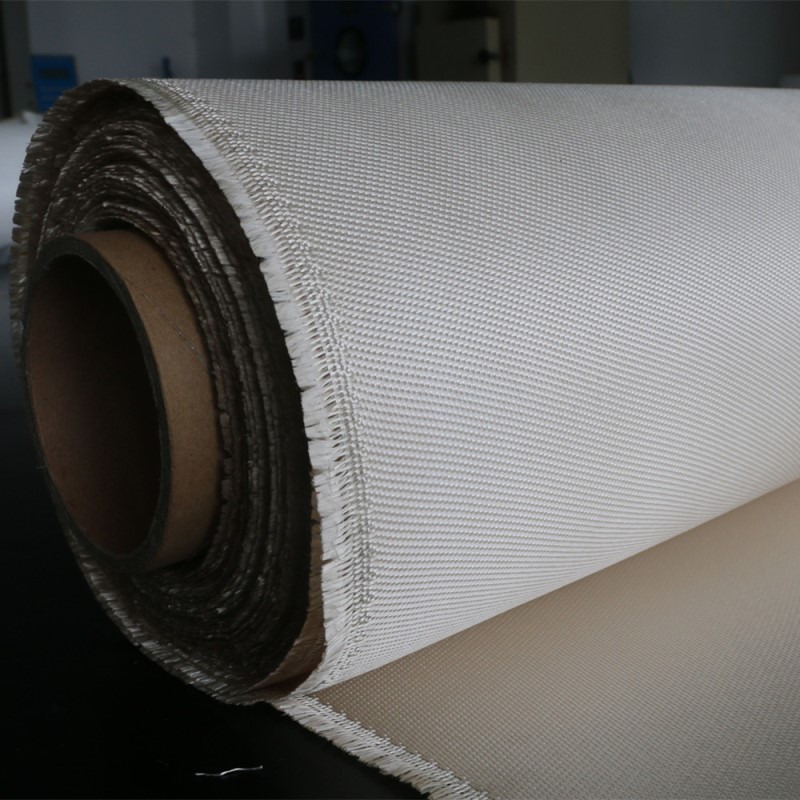

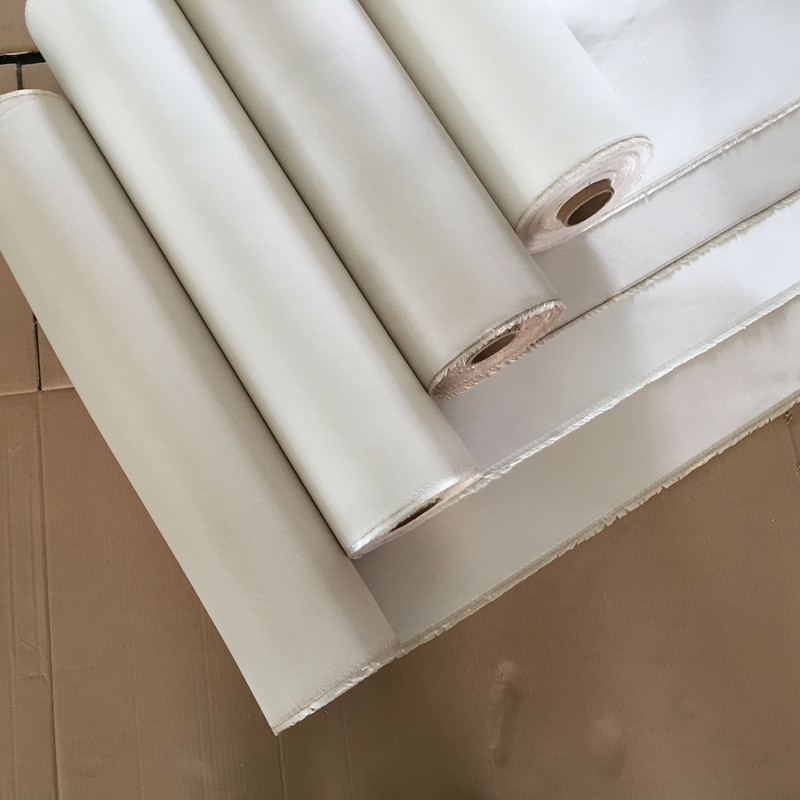

SIF-AB Adhesive backed Silica Fiber Cloth is a high temperature fabric with adhesive backed which is made by 96% silica fibers and can almost cover most of industrial demands for temperature resistance, and with pefect tensile strength and abrasion resistant property.
70% silica fabric with pressure-sensitive adhesive coating one side upon request.
Features
Suitable for use at 1800°F (982°C), and able to withstand short term exposure up to 3000°F (1650°C)
Application
It is used for equipment protection, welding curtains and blankets.
Specifications
| DATASHEET | |||||||
| Part NO. | Weight | Thickness | Width | Wrap | Weft | Tensile strength(N/INCH) | |
| g/m2 | mm | cm | yarns/cm | yarns/cm | Wrap | Weft | |
| SIF-AB-0.75 | 600 | 0.75 | 92/100 | 18 | 13 | ＞1200 | ＞1000 |
| SIF-AB-1 | 880 | 1.00 | 92/100 | 18 | 13 | ＞1300 | ＞1100 |
| SIF-AB-1.3 | 1100 | 1.30 | 92/100 | 18 | 13 | ＞1500 | ＞1200 |
| Technical Datasheet | |||||
| Material | Silica | ||||
| Working temperature | -40℃ - +1000℃ | ||||
| Flammability | VW-1 | ||||
| Melting point | +1650℃ | ||||
| Standard Color | Nature | ||||
| MOQ | 100 meter each size | ||||
| Cutting tool | Scissors | ||||
Notes:
Special thickness upon request
Special length or packing upon request.
