High

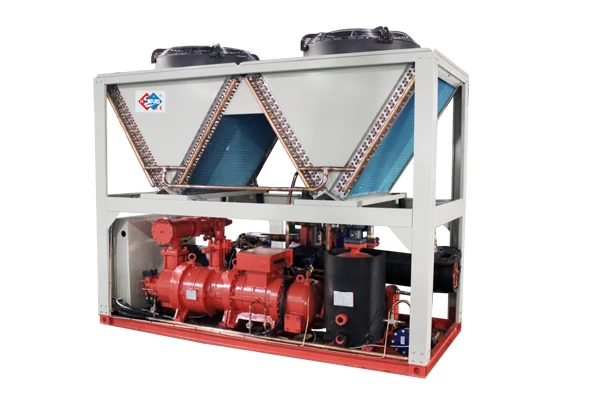

temperature type ultra-low temperature air source heat pump unit
Introduction: High temperature type ultra-low temperature air source heat pump unit uses
air energy as a heat source and is designed for the traditional radiators in
the north. It is made of 85 °C high temperature hot water through heat pump,
which is suitable for the renovation of radiator system or new radiator
project. The high-temperature ultra-low temperature air energy heat pump unit
operates in the environment of -25 ° C ~ 10 ° C, using air as a heat source, no
pollutant discharge, and obtaining hot water of 55 ° C ~ 85 ° C. It is
specially designed for use in high altitude areas.
Brand:
H.Stars
Heating
capacity: 88KW~
Applications:
Heating, cooling, and heating in all occasions
Technical
Parameters:
Rated
heating capacity 88KW Input power 37.5KW Hot water temperature range 55°C-85°C
Low
ambient temperature -25°C Ambient dry and wet bulb temperature -12/14°C
Refrigerant R134a
Power
Specifications 3N-380V-50HZ
Unit
features:
1.
Vertical top-out wind design, the unit is small, no need to set up another
machine room, the project installation is simple;
2.
The unit adopts Hanzhong's new single-machine twin-screw compressor, and other
major components are all internationally renowned brand components;
3,
with intelligent control and defrosting function, 24-hour constant temperature
heating;
4.
Freely set the required water temperature from 55 °C to 85 °C according to the
needs of the place of use to meet the engineering needs;
5,
the use temperature range: -25 ° C -10 ° C
