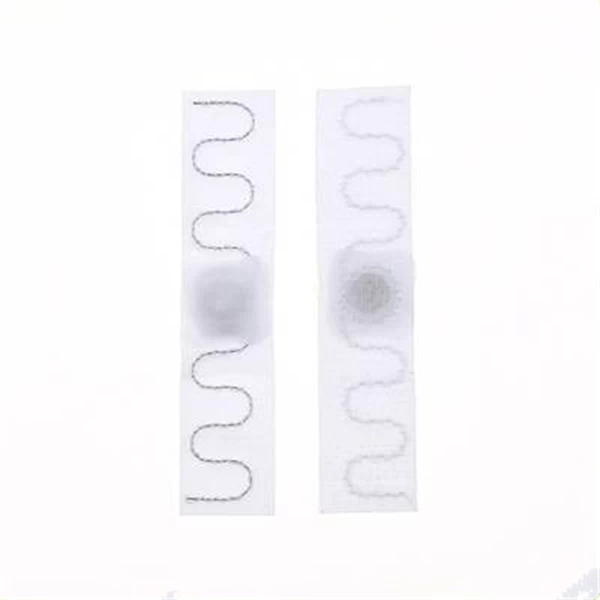

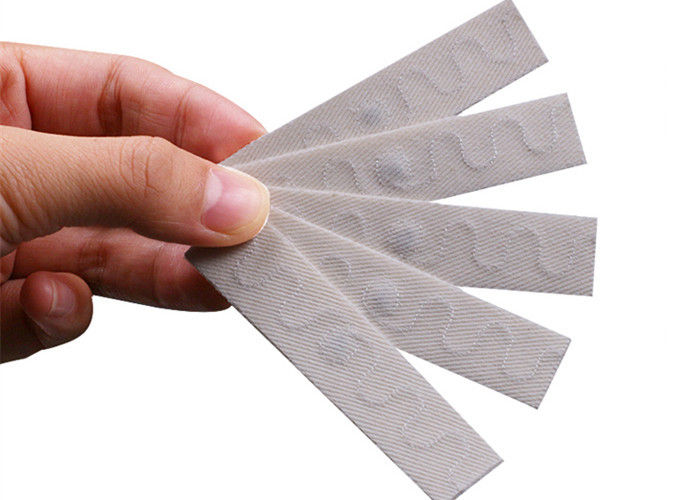

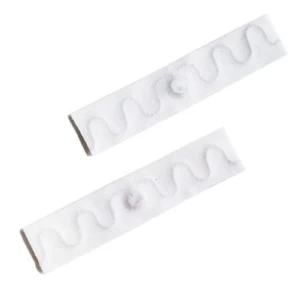

High Temperature Waterproof Fabric Textile Washable UHF RFID Laundry Tag
Features
1) Flexible Read/Write Range: Maximum 0.5 M write, 1.5 M read. Distance varying upon the tested Reader.
2) Non-line-of-sight data transmission: Allows tags to be identified without the need of visual contact.
3) Substrate Material: Enable the tag to be durable in high-temperature condition and harsh environment.
4) Operating Frequency: Ultra High Frequency (UHF).
5) Extensive Usage: Available for Laundry / Waterproof /High Temperature Applications.
|
Specification
|
|
Material
|
Nylon
|
|
Avilable Size
|
60*22*1mm/70*15*1.5mm/80*15*1.5mm
|
|
Frequency
|
860-960MHZ
|
|
Working protocol
|
EPC Class1 Gen2/ISO 18000-6C
|
|
Working environment
|
Working life: 5-10 years; Store temperature: -25 °C ~50 °C; Humidity 20% ~ 90%RH; Working temperature: -20 °C~ 70°C.
|
|
Available Crafts
|
4 color offset printing;
Serial Number,Barcode,QR or UID number printing;
Encoding/Programmable
|
|
Optional Technique
|
-Special function option Anti-metal layer for metal environmental using;
-Custom logos/artworks printing/ Laser engrave;
-UID Number Printing Jet dot printing;
-URL, text, number etc;
-Encoding/lock to read only.
|

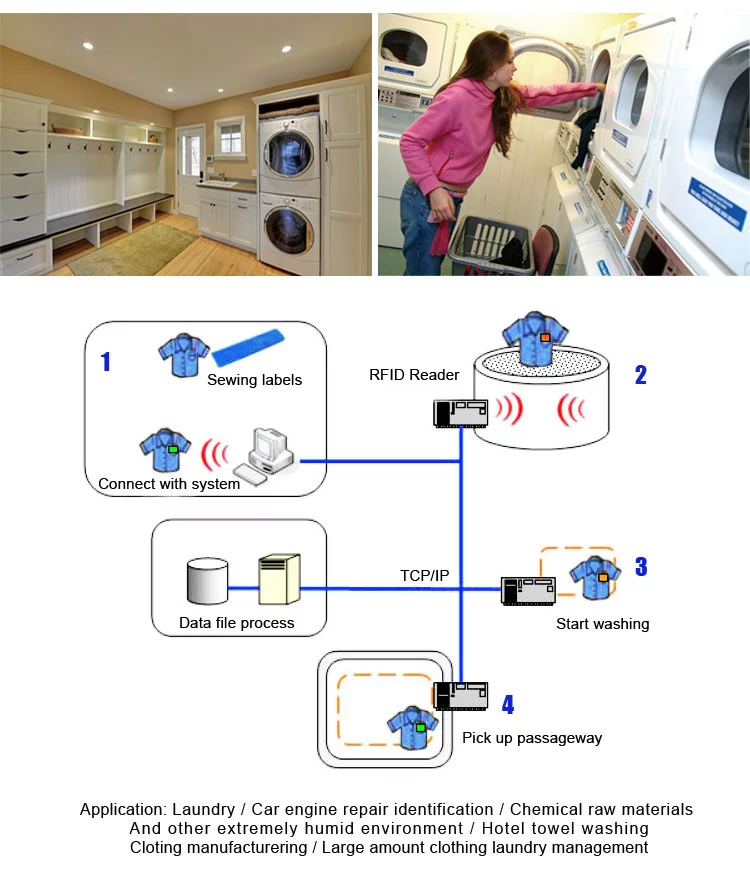

Application
