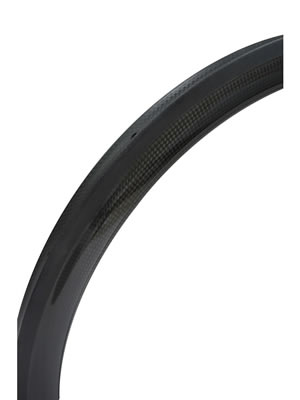

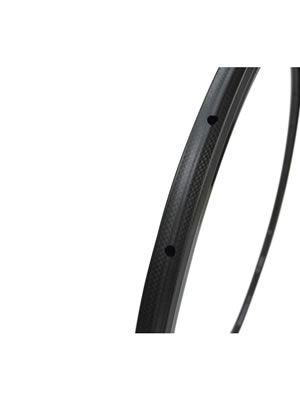

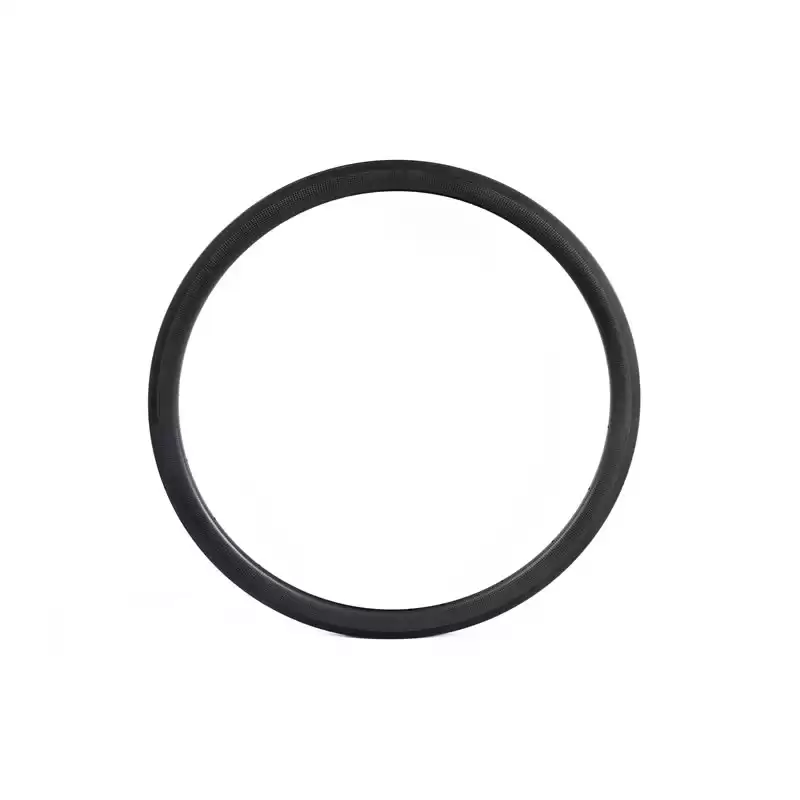

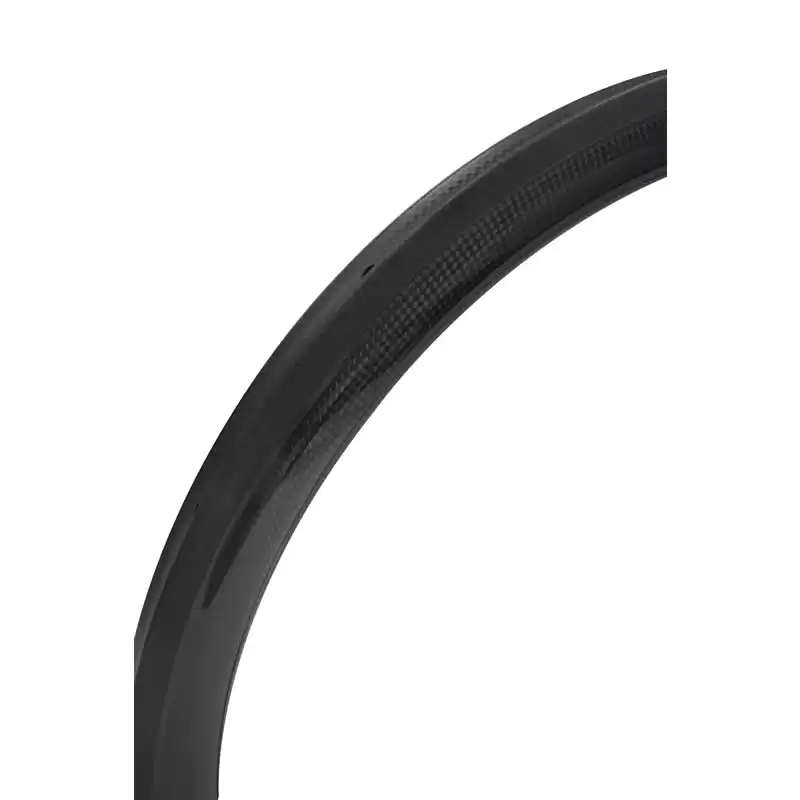

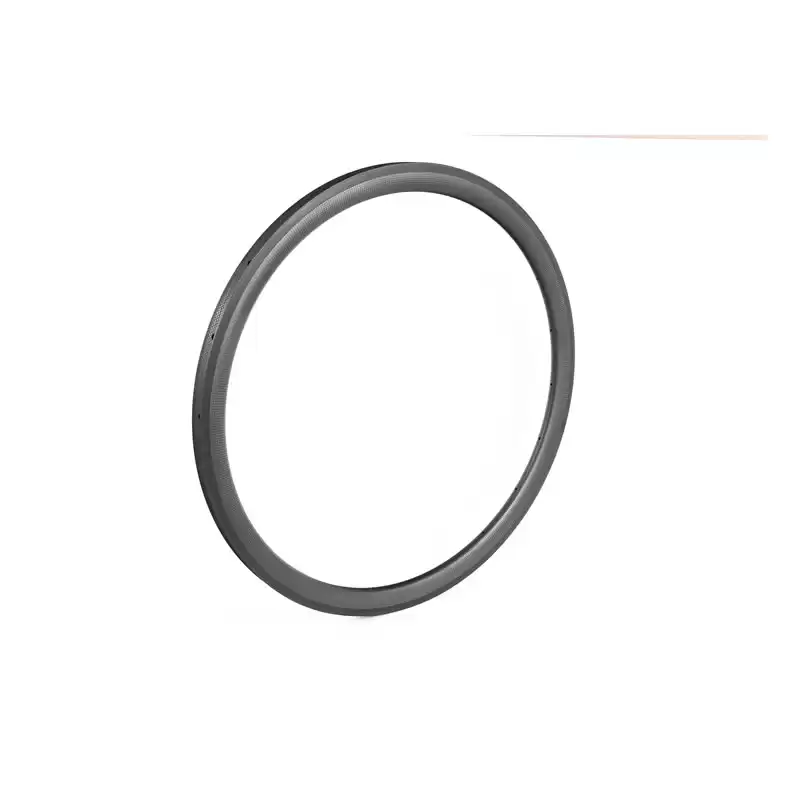

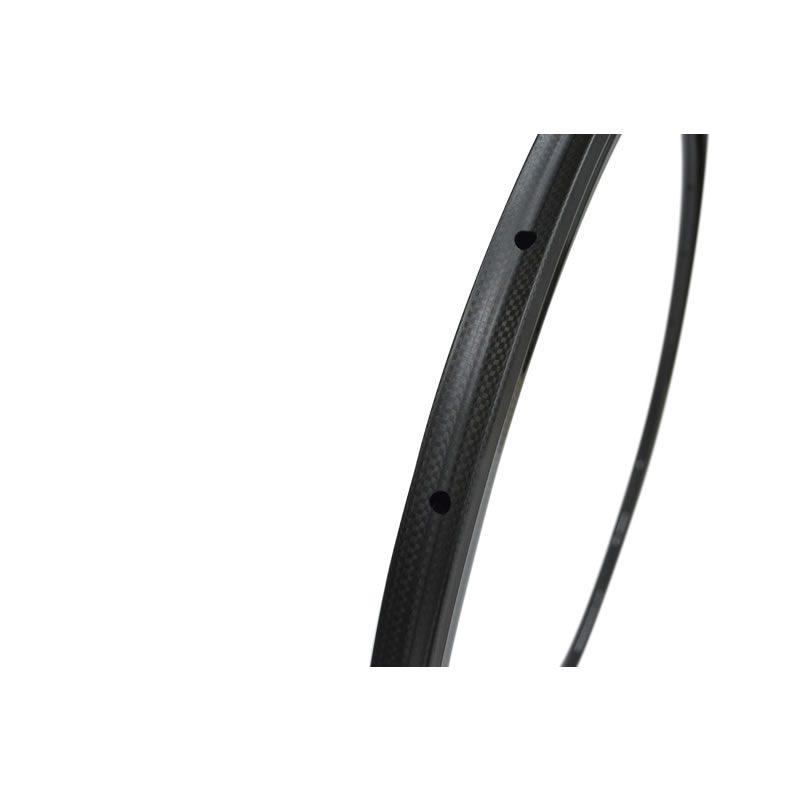

Product Model：toray T700 38mm Deep 700C tubular carbon rims road bicycle wheels
This 38mm Depth tubular carbon rims with U shape,better for ride.
This tubular carbon rims made of Toray T700 and T800 carbon fiber.better aerodynamics and sitffness.
High TG Tubular carbon rims use high TG basalt brake surface,can tolerate high temperature from braking.
High quality tubular carbon rims with the wholesale price.
Features:
1.High TG resin system,can tolerate max 250°C high temperature from braking.
2.High quality wheels,Super lightweight,made of Full Toray T700 & T800 carbon fiber,as far as possible less weight and easier for ride.
3.U shape design,making the rim less susceptible to cross winds and improves aerodynamics in a range of real life wind conditions.
4.Best tubular carbon rims use basalt brake track,high temperature resistance,brake system is important for riding,more safety for cyclist.
5.Use TI design,rim flange incl circle titanium,stronger and stabilized structure.
6.We have not MOQ limit,sample order are avaliable,we also can mixed product to order.
7.We offer decal and painting service for OEM your brands.
8.We can customized Different patterns of brake surface .
9.High quality carbon wheels with reasonable prices, good service and fast delivery.
10.5 years warranty
Specification:
|
Model
|
T38-20.5
|
T38-23
|
T38-25
|
|
Size
|
700C
|
700C
|
700C
|
|

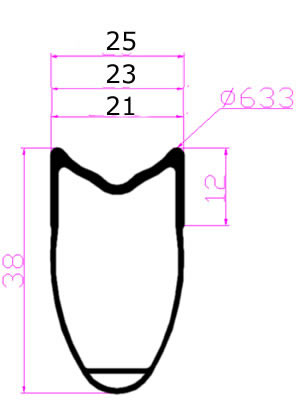

Sectional Drawing
|
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
38mm
|
38mm
|
38mm
|
|
Wide
|
20.5mm
|
23mm
|
25mm
|
|
Weight
|
330+/-15g
|
340+/-15g
|
345+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
564mm
|
564mm
|
564mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>280kg
|
>280kg
|
>280kg
|
|
Ultimate Strength
|
>85kg
|
>850kg
|
>850kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
>50kg
|
|
Max Tire Pressure
|
125psi/8.6bar
|
125psi/8.6bar
|
125psi/8.6bar
|
Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
