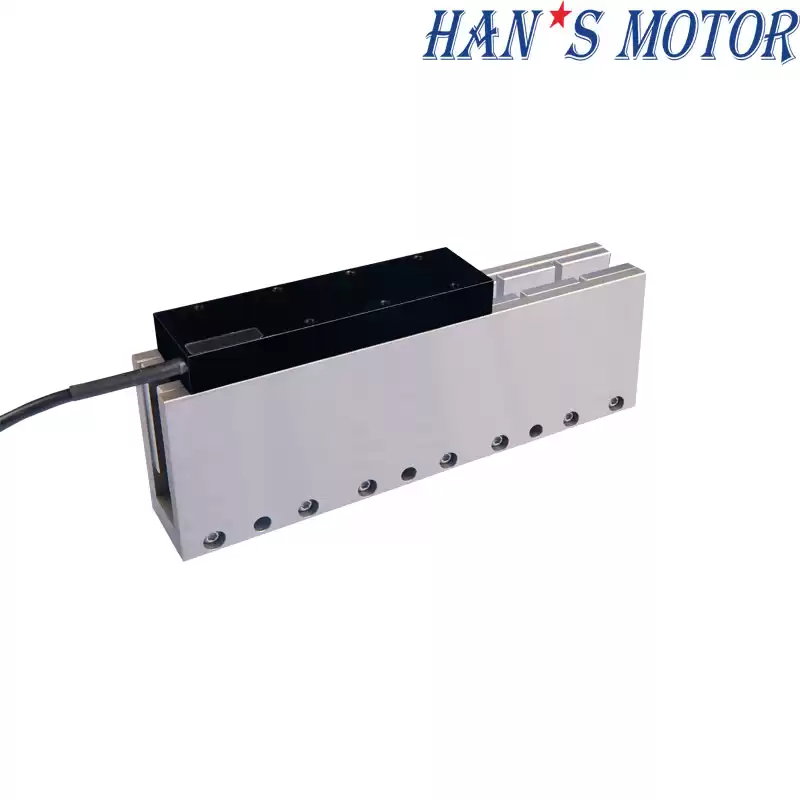

Product name：High thrust coreless linear motor LSMUC for linear motion system
Specifications
Mover Spec.: LSMUC10xxxx-x-H-NC-N-D00.5
|
101A-S
|
201A-S
|
301A-S
|
401A-S
|
501A-S
|
Performance Parameters
|
Symbol
|
Unit
|
Series
|
Series
|
Series
|
Series
|
Series
|
Continuous Force (Tmax）
|
Fc
|
N
|
3
|
6
|
9
|
12
|
15
|
Peak Force
|
Fp
|
N
|
12
|
24
|
36
|
48
|
60
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
1.5
|
2.2
|
2.8
|
3.2
|
3.6
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
5.4
|
9.9
|
14.5
|
19.1
|
23.7
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
1.7
|
1.7
|
1.7
|
1.7
|
1.7
|
Peak Current (1S)
|
Ip
|
Arms
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
1.8
|
3.5
|
5.3
|
7.0
|
8.8
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/rad/s
|
0.6
|
1.2
|
1.7
|
2.2
|
2.9
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
0.9
|
1.7
|
2.4
|
3.2
|
4.0
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
0.1
|
0.2
|
0.3
|
0.4
|
0.5
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
21
|
21
|
21
|
21
|
21
|
Magnetic Attraction
|
Fa
|
KN
|
0.0
|
0.0
|
0.0
|
0.0
|
0.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
60
|
60
|
60
|
60
|
60
|
Vmax,Fc@Vbus=310Vdc
|
Vmax,Fc
|
m/s
|
29.2
|
14.2
|
8.9
|
6.3
|
4.7
|
Vmax,Fp@Vbus=310Vdc
|
Vmax,Fp
|
m/s
|
23.6
|
8.9
|
4.0
|
1.4
|
0.0
|
Vmax,0@Vbus=310Vdc
|
Vmax,0
|
m/s
|
31.0
|
15.9
|
10.6
|
7.9
|
6.3
|
Mover Mass
|
Mp
|
kg
|
0.04
|
0.06
|
0.08
|
0.10
|
0.12
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
2.4
|
2.4
|
2.4
|
2.4
|
2.4
|

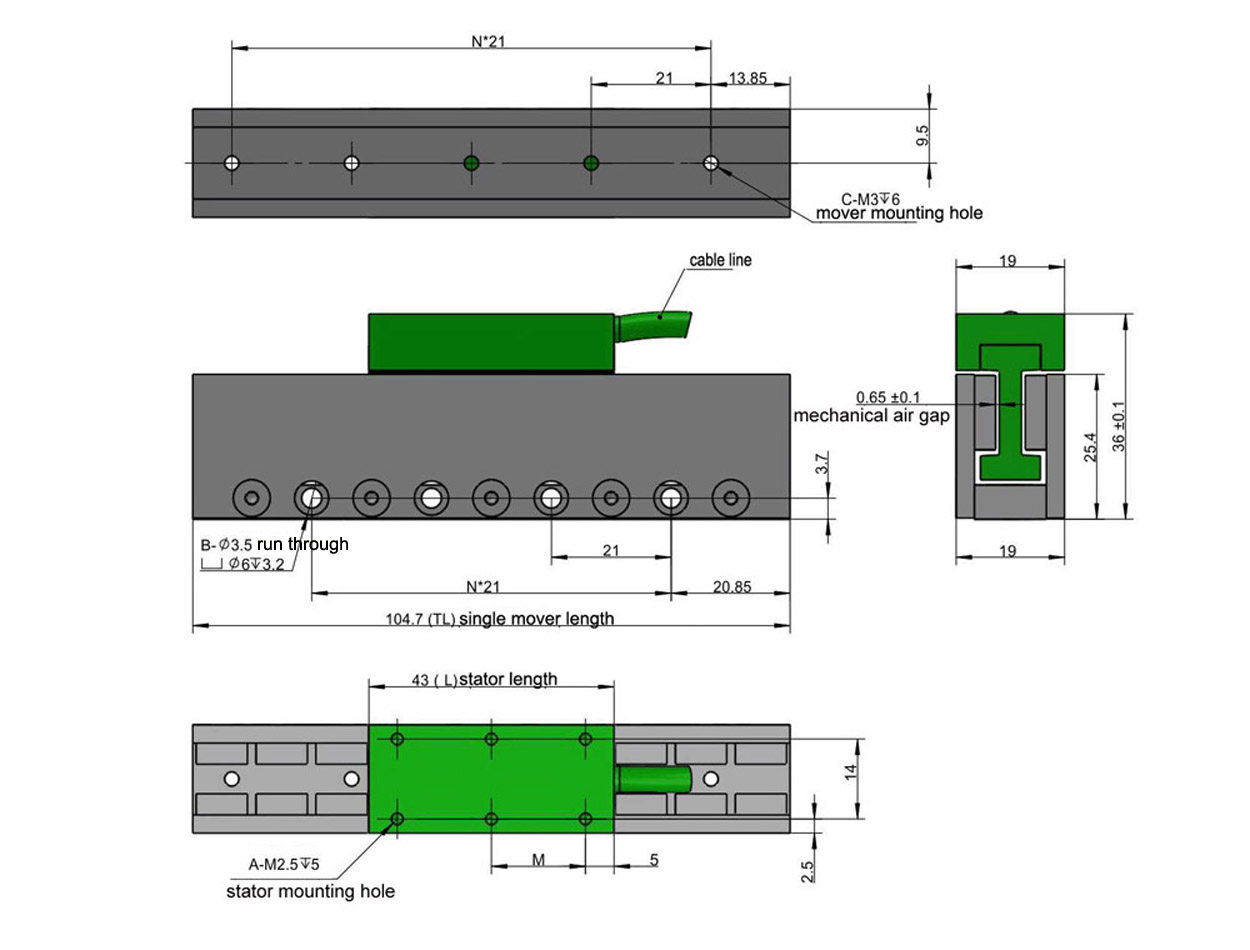

Dimension
Mover Size
|
|
Mover model
|
Mover length
|
M
|
Mover mounting hole
|
|
LSMUC10101A-S-H-NC-D00.5
|
22
|
12
|
4
|
LSMUC10201A-S-H-NC-D00.5
|
43
|
16.5
|
6
|
LSMUC10301A-S-H-NC-D00.5
|
64
|
18
|
8
|
LSMUC10401A-S-H-NC-D00.5
|
85
|
28
|
8
|
LSMUC10501A-S-H-NC-D00.5
|
106
|
32
|
8
|
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.

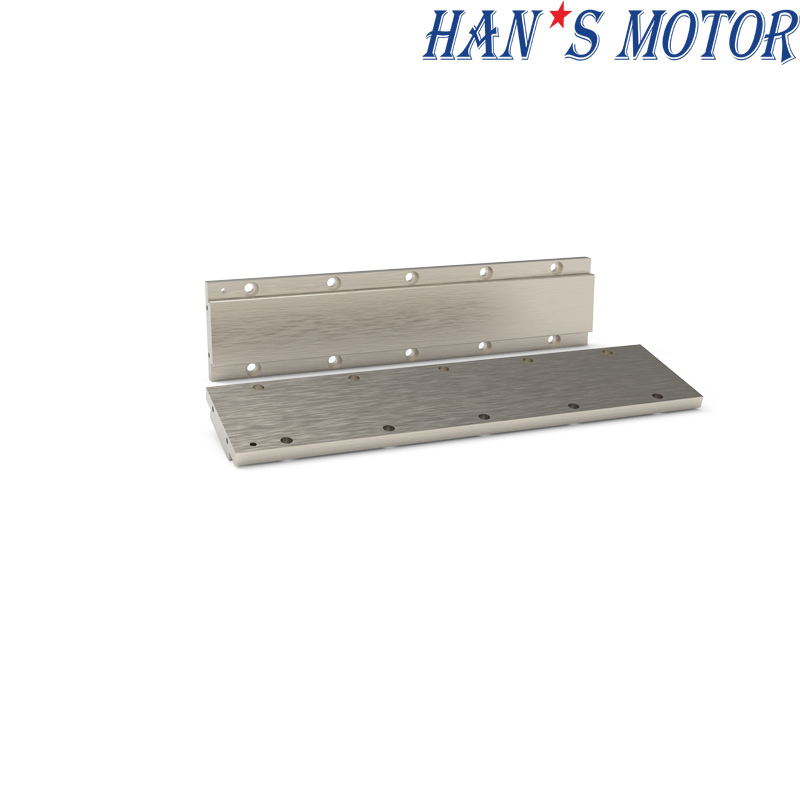

Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
Stator mounting hole C
|
LSMUC2063A
|
62.7
|
1
|
2
|
3
|
LSMUC2084A
|
83.7
|
2
|
3
|
4
|
LSMUC2105A
|
104.7
|
3
|
4
|
5
|
Suitable for any mover of this series, stator installation mode can be selected
Advantages:
1. High responsiveness, high precision
2. High transmission stiffness, thrust smoothly
3. High speed, short acceleration and deceleration process
4. Unlimited stroke length
5. Low noise during operation

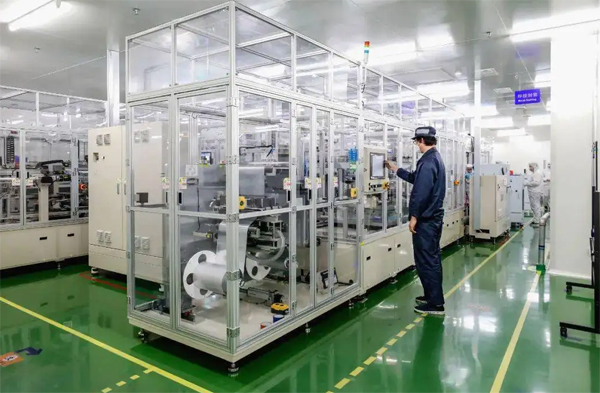

Application Case：New Energy Lithium Industry
In the lithium industry, the production efficiency is becoming higher and higher.Linear motor is widely used in lithium electric equipment because of its high speed, high precision and high response.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order .
