High Vacuum Road Sweeper Isuzu

High performance vacuum road sweeper truck, vacuum street sweeper truck, Isuzu road sweeper truck, road cleaning truck, vacuum street sweeper,



High performance vacuum sweeper Isuzu

High performance vacuum sweeper Isuzu pictures

Vacuum Road Sweeper Truck Isuzu (also called vacuum truck sweeper, truck mounted sweeper car, road cleaning sweeper truck, road sweeper truck, vacuum cleaning truck, road brush sweeper truck, customer made road sweeper, street collection sweeper, new road sweeping trucks) can be widely used in sweeping city roads, highways, construction sites, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.



Features:

1, Simple structure: there is no hydraulic motor rotation mechanism, no sweeping brush , no roller brush or other accessories;

2, Easily operate: through the motion wheelhouse Control Panel, you can control the working conditions of under engine, blowers, vacuums, door, Cabinet, sprinkler shapes easily and quickly.

3, No secondary dust pollution: pure suction operation, using a unique, advanced HEPA filter systems, waste won’t fall out or affect the work efficiency.

4, Low maintenance costs: there is no need to frequently change sweeping like a Sweeper, and only a small amount for rubber wear parts, and lower maintenance costs;

5, Better dust removal effect: dozens of Micron dust ,small stones, leaves, even coal, brick can be effectively removed, cleaning effect is above 98%;

6, High cleaning efficiency:the cleaning efficiency of a vacuum truck is equivalent to more than 30 employees’, which greatly reduce the management costs, reduce labor costs, saves procurement costs of cleaning tools.

7, Environment friendly: dry absorption mode, dust cleaning without sprinkling water, energy saving.

Remark:

This truck is also a sample for your reference, if you have any special requirements on the truck, please feel free to contact us. we can give you the most practical suggetions based on your descriptions to meet your demands since our company has a specialized product development design team.



Main specifications of ISUZU ROAD SWEEPER:



Model

PT5100TSL

Driving Type

4x2    (Left hand drive)

Wheelbase

4175 mm

Overall Dimension

6925X2200X2550 mm

Cab

Forward control over engine, all-steel-welded construction

Sweeping System

Auxiliary engine

Isuzu tech engine

Stainless Steel Hopper Effective Volume

8 CBM

Stainless Steel Water Tank Volume (L)

2000

Sweeping Width (mm)

3200

Sweeping speed (km/h)

3~25

Sweeping Capacity (m2/h)

16500~82500

Blower rated rotation speed (rpm)

1800

Blower air capacity (m3/h)

8000

Blower air pressure (Pa)

7000

Side Brush Sweeping Brush Drive and Control

Electric control lever and switch control, Hydraulic driving

Engine

Model

4HK1-TCG40

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

139 KW (195 HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

8.25-20

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h



Custom made examples

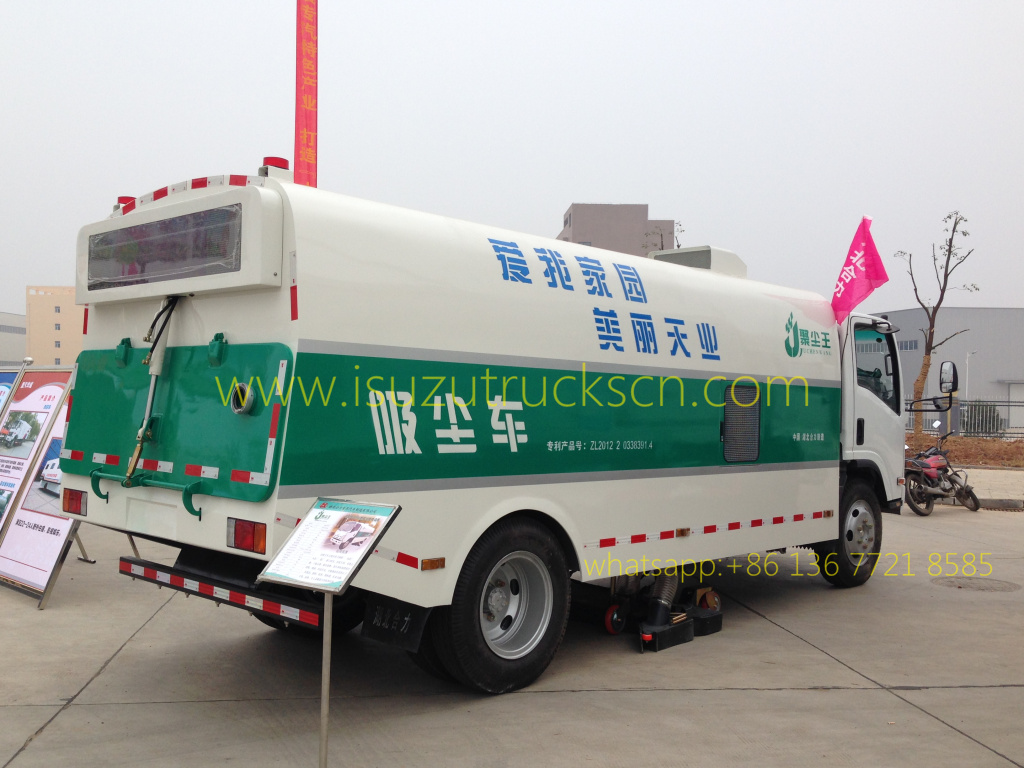

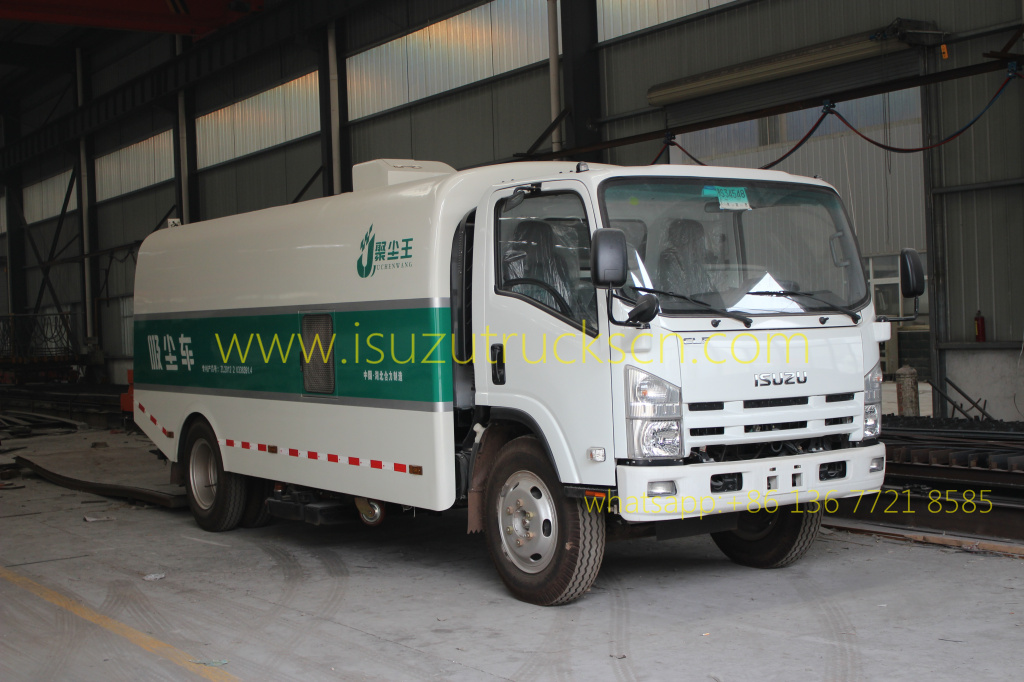

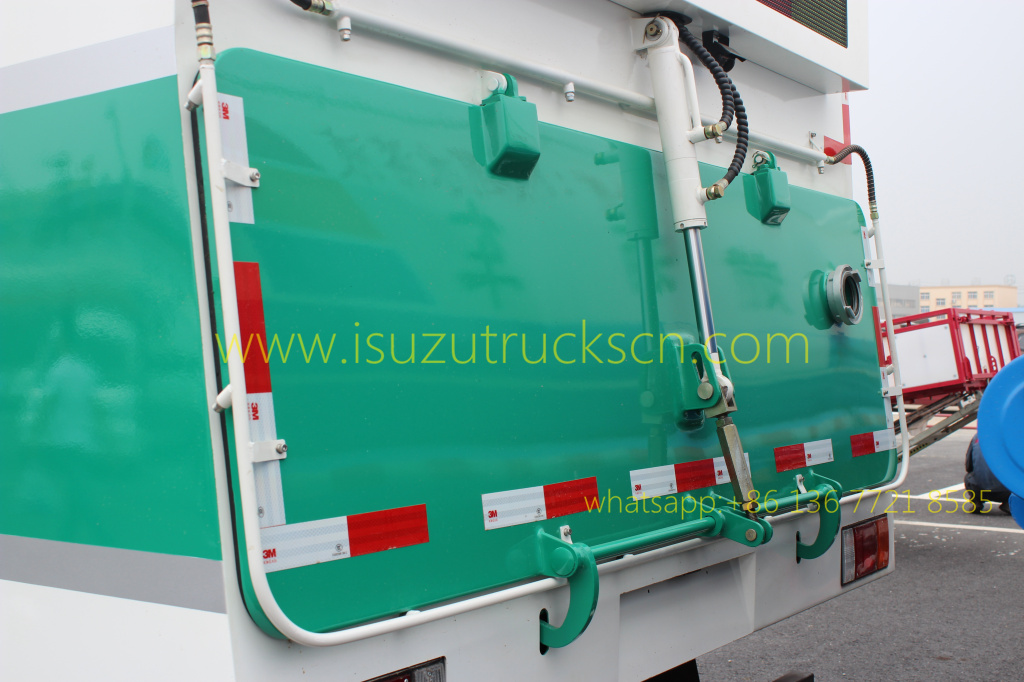

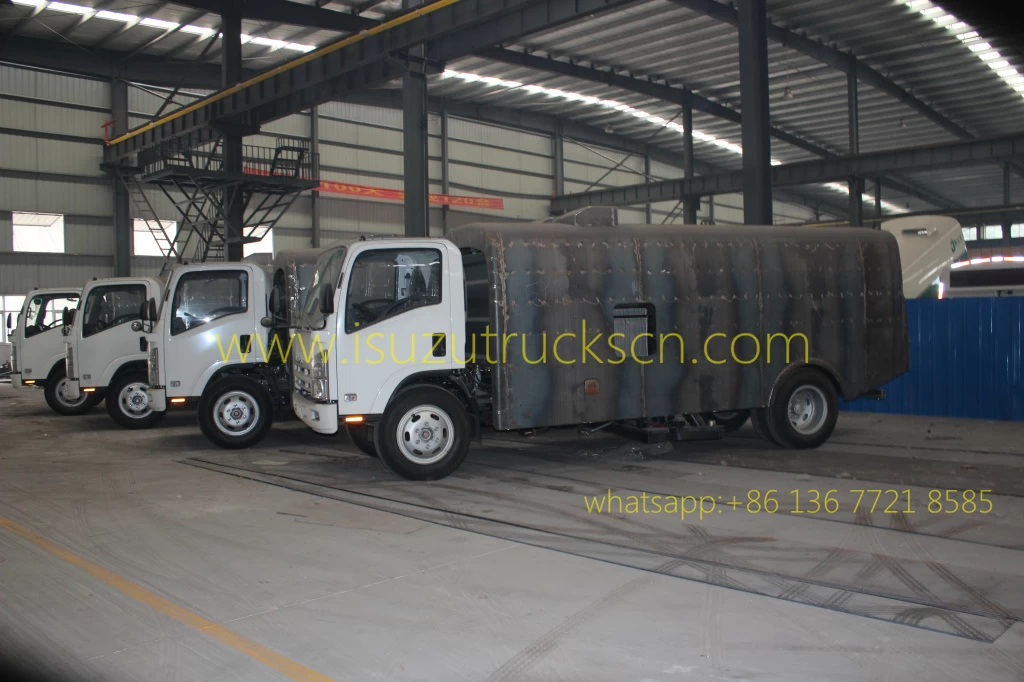

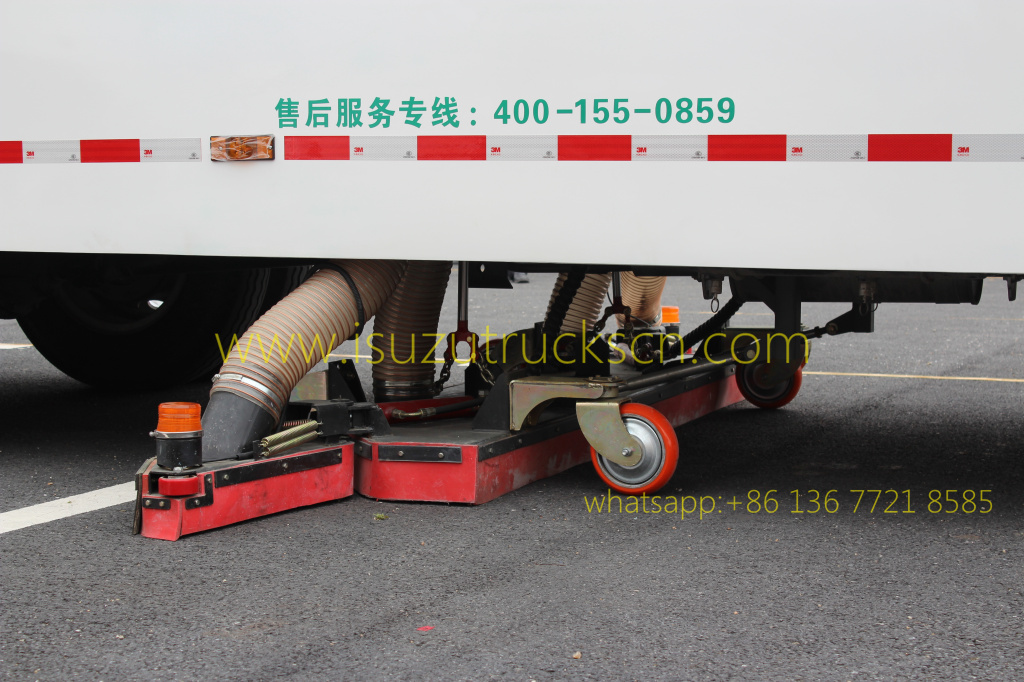

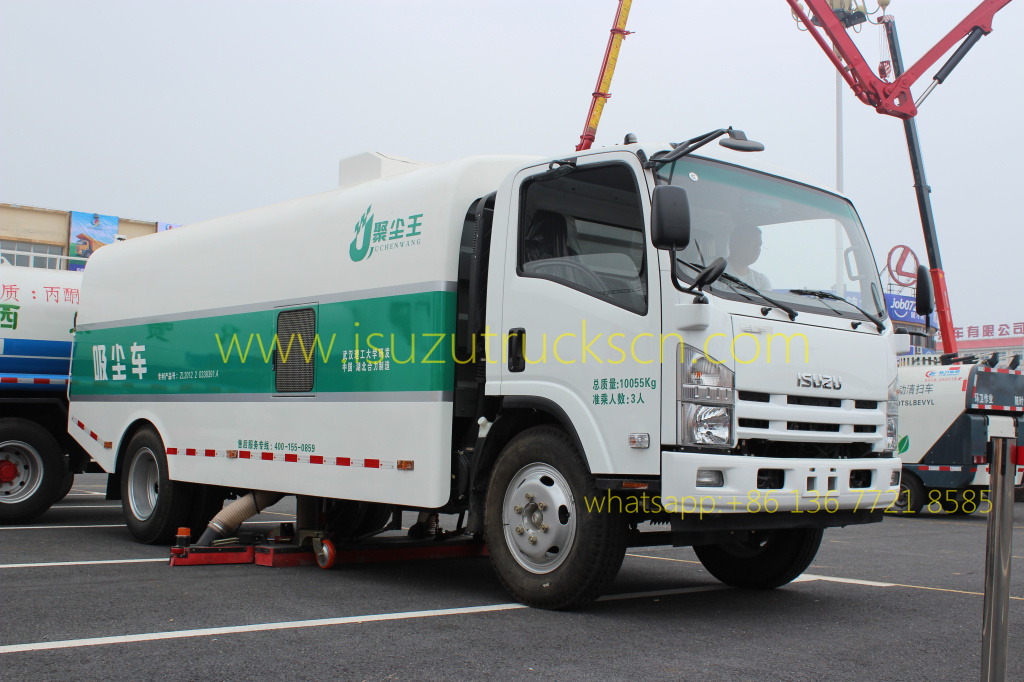

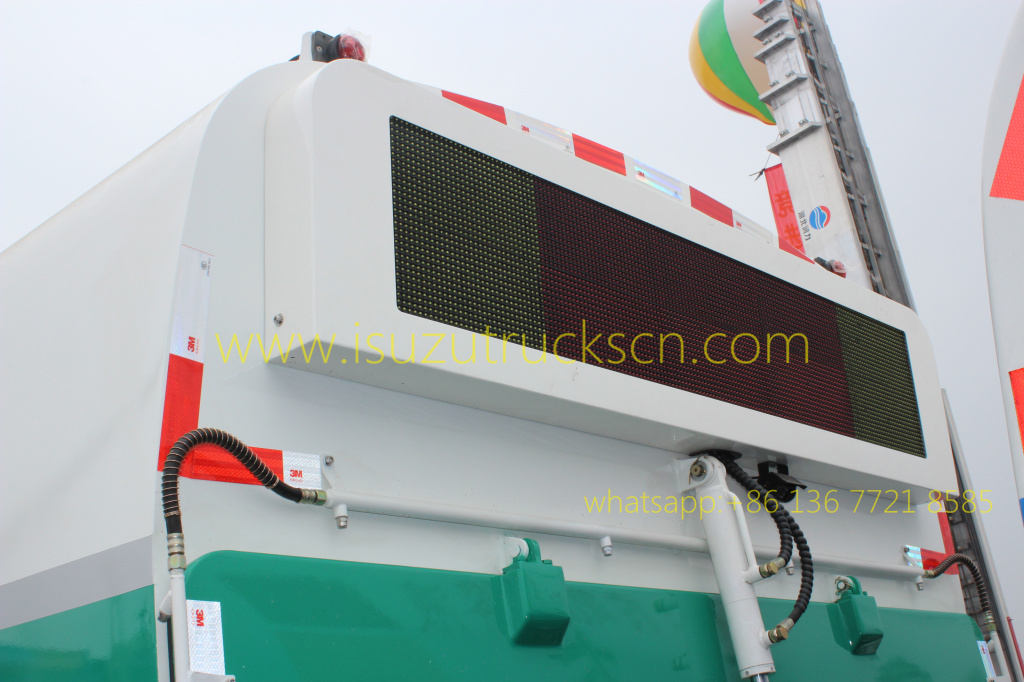

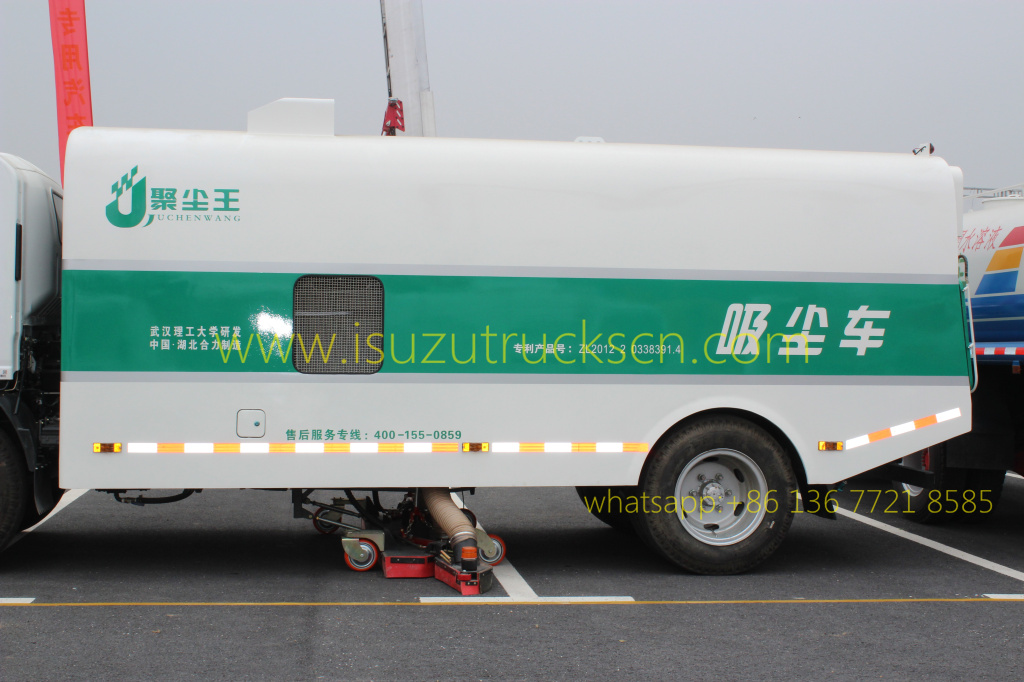

ISUZU Vacuum Truck Mounted Road Sweeper specifications and pictures

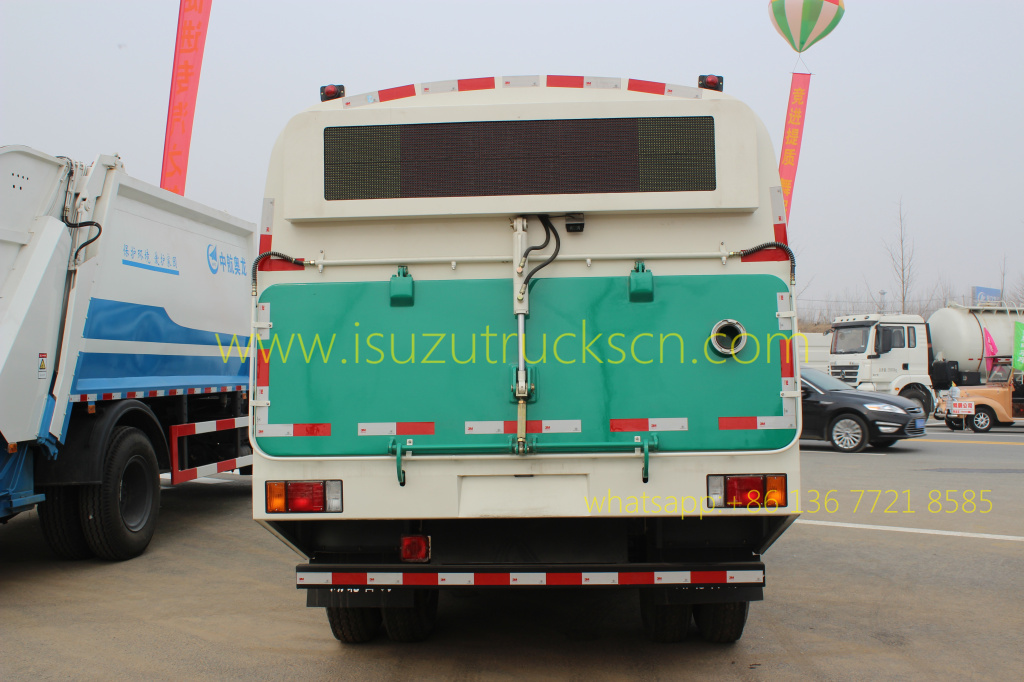

ISUZU Vacuum Truck Mounted Road Sweeper specifications and pictures

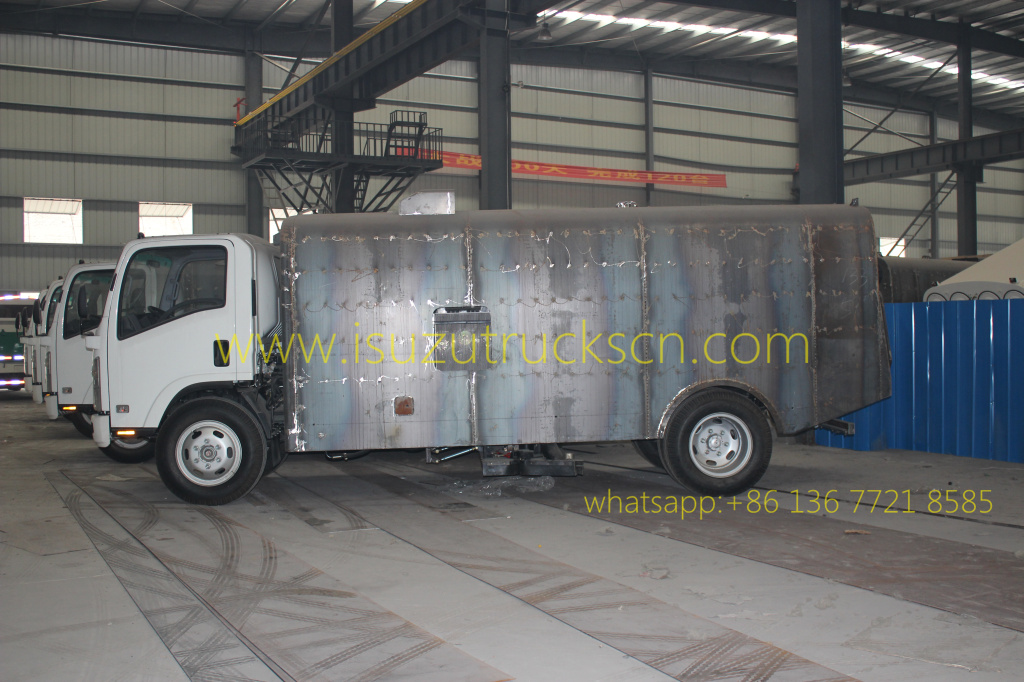

ISUZU Vacuum Truck Mounted Road Sweeper specifications and pictures

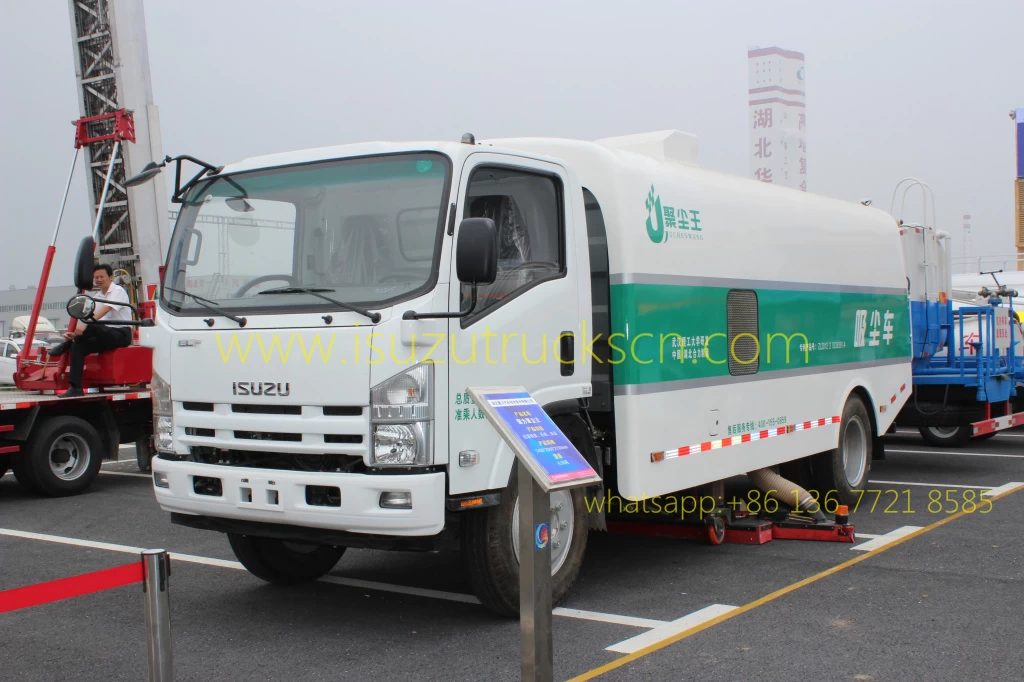

ISUZU Vacuum Truck Mounted Road Sweeper specifications and pictures

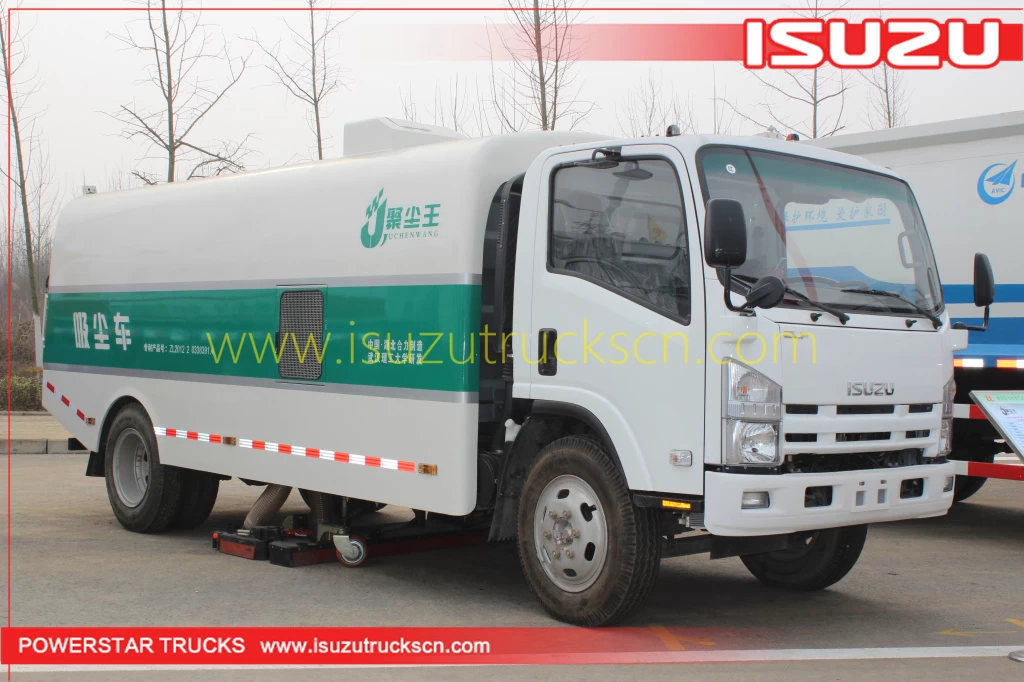

ISUZU Vacuum Truck Mounted Road Sweeper specifications and pictures

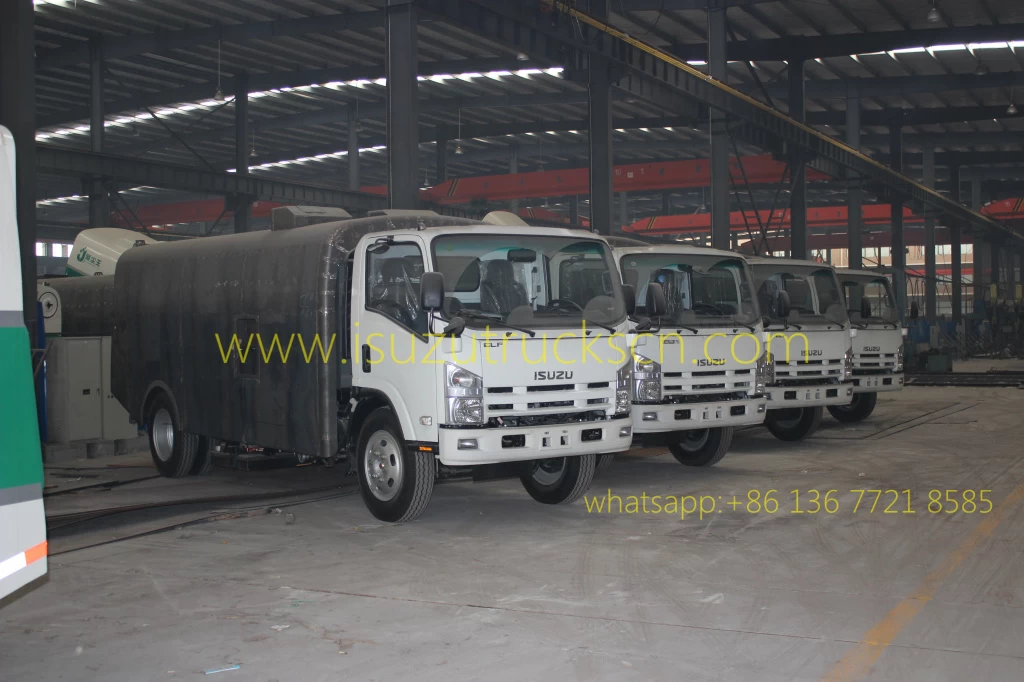

ISUZU Vacuum Truck Mounted Road Sweeper specifications and pictures

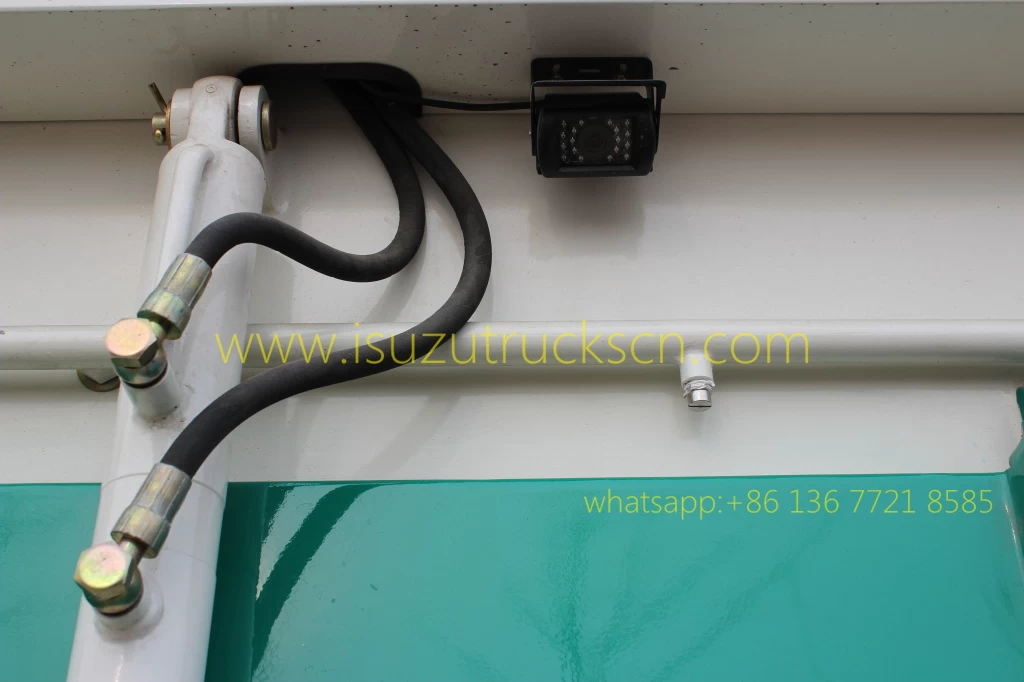

ISUZU Vacuum Truck Mounted Road Sweeper specifications and pictures

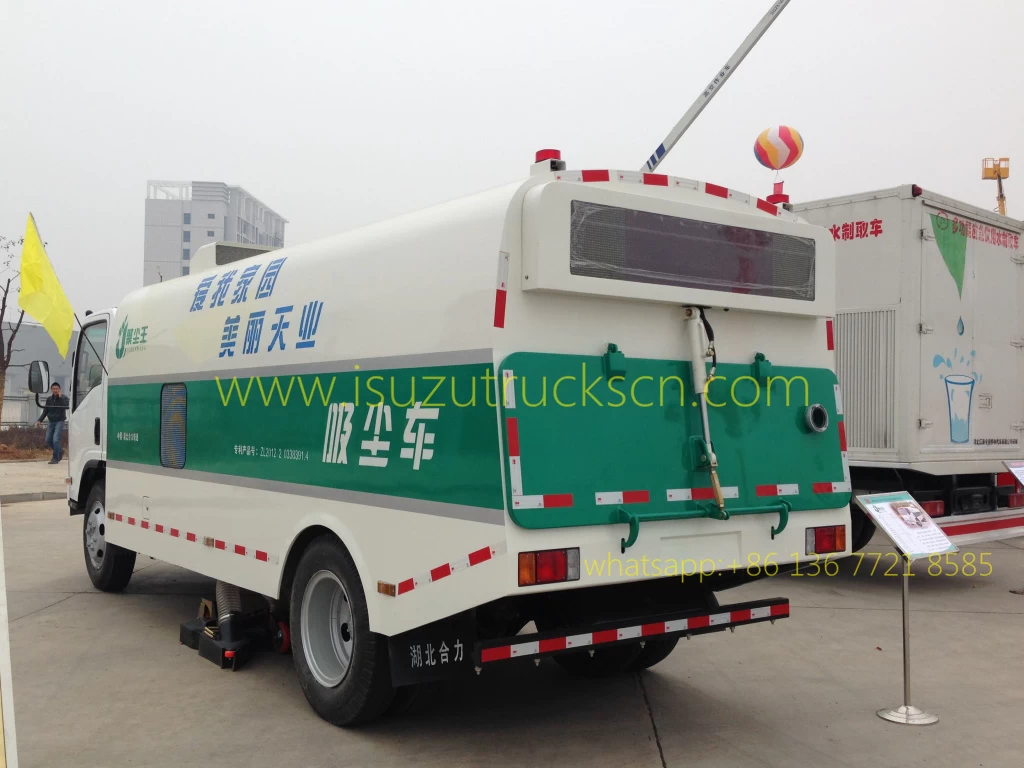

ISUZU Vacuum Truck Mounted Road Sweeper specifications and pictures
