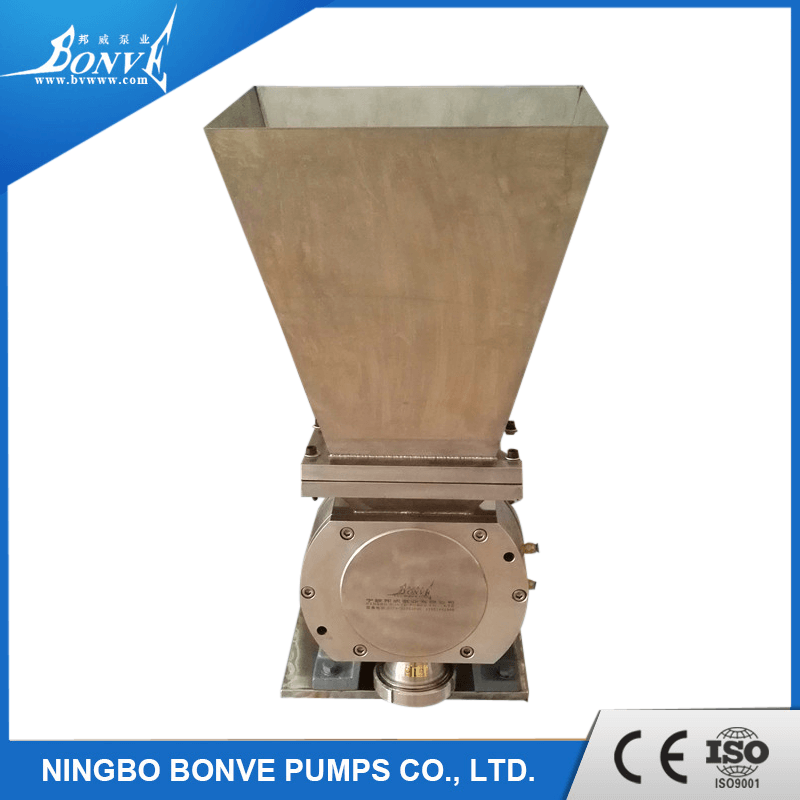

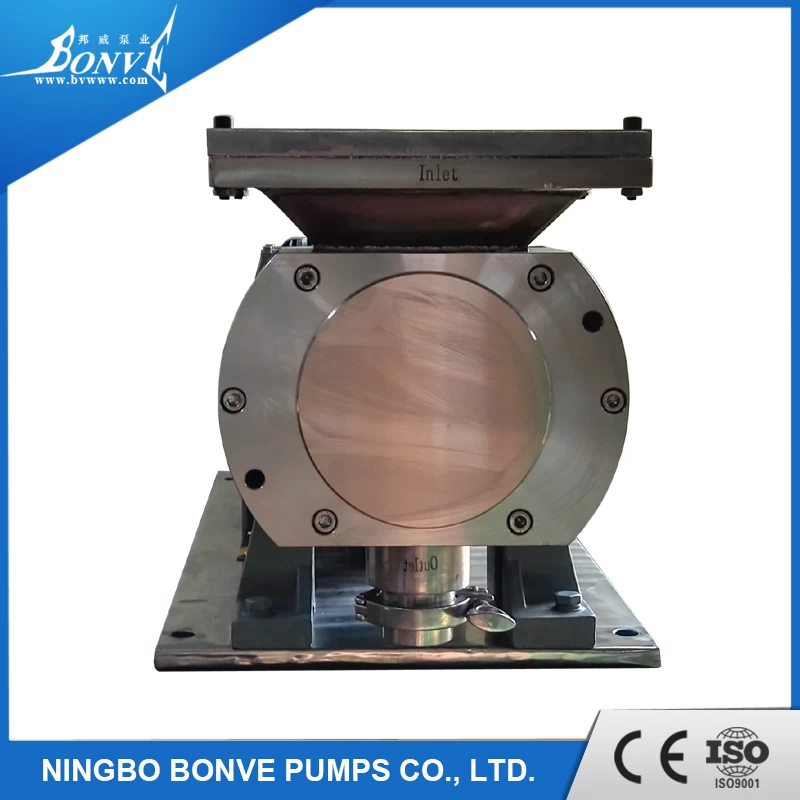

With the characteristics of volume pump, low rotation speed, high output torque, Bonve lobe pump plays a very important role in feeding high viscosity liquids, we named this pump as high viscosity liquid transfer pump. Bonve lobe pump has a unique operation principle, matching a powerful driving system with low speed, ensures liquid feeding consistently, without stagnancy. With enlarged rectangular inlet, semi-solid pastes or mixtures containing semi-solid pieces can be pumped. Viscosity can reach 1,000,000CP.
WORKING PRINCIPLE FOR ROTARY LOBE PUMPS

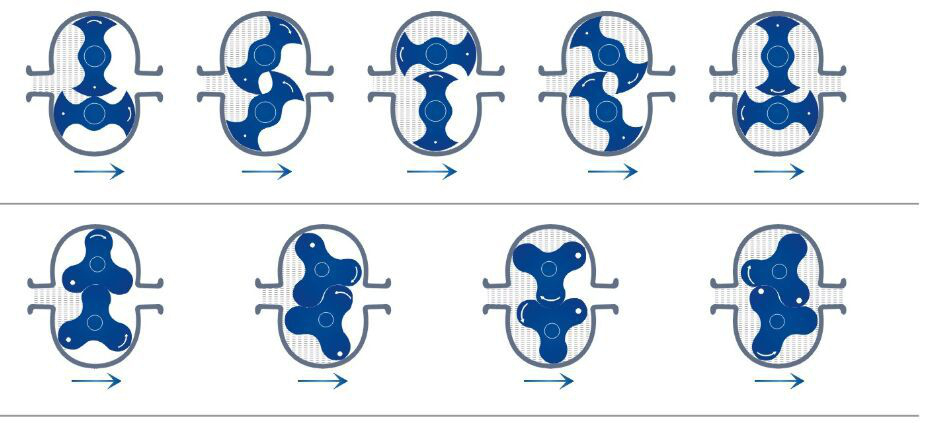

The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a standstill, the pump seals off almost completely.

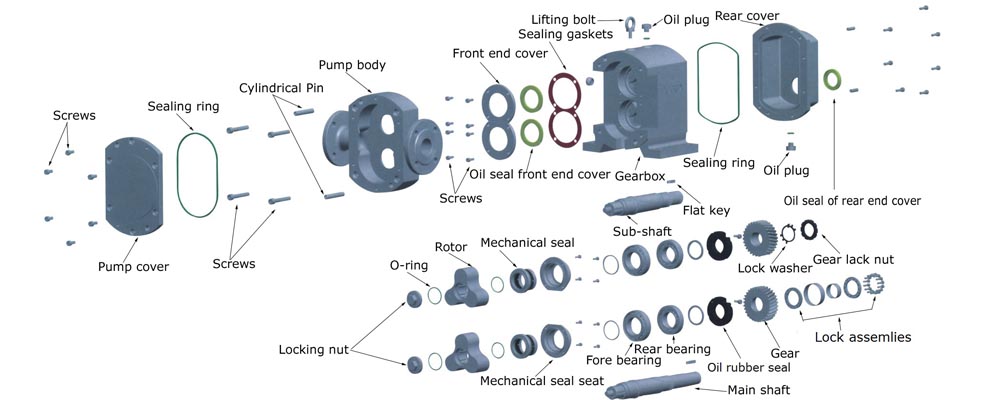

PUMP STRUCTURE DIAGRAM

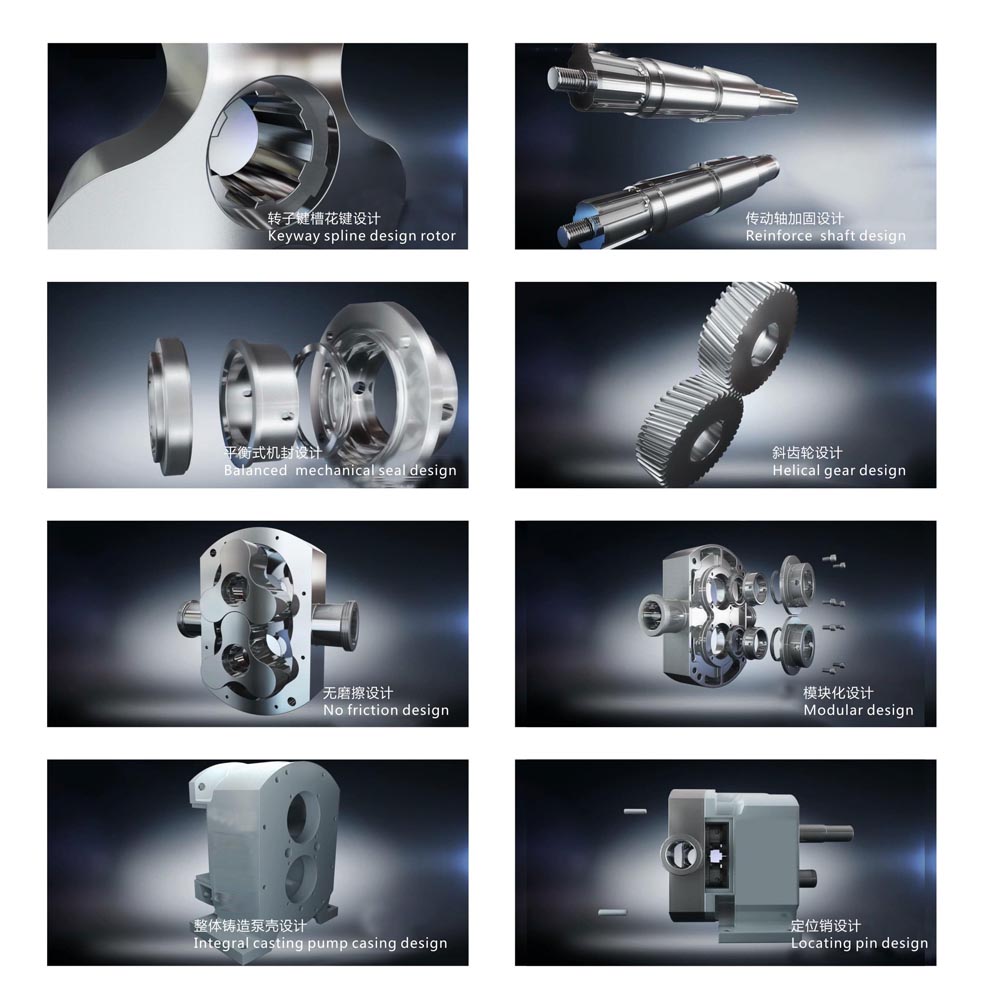

PUMP STRUCTURE ADVANTAGES
DRIVING TYPE
Step-less speed regulator +motor: The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.

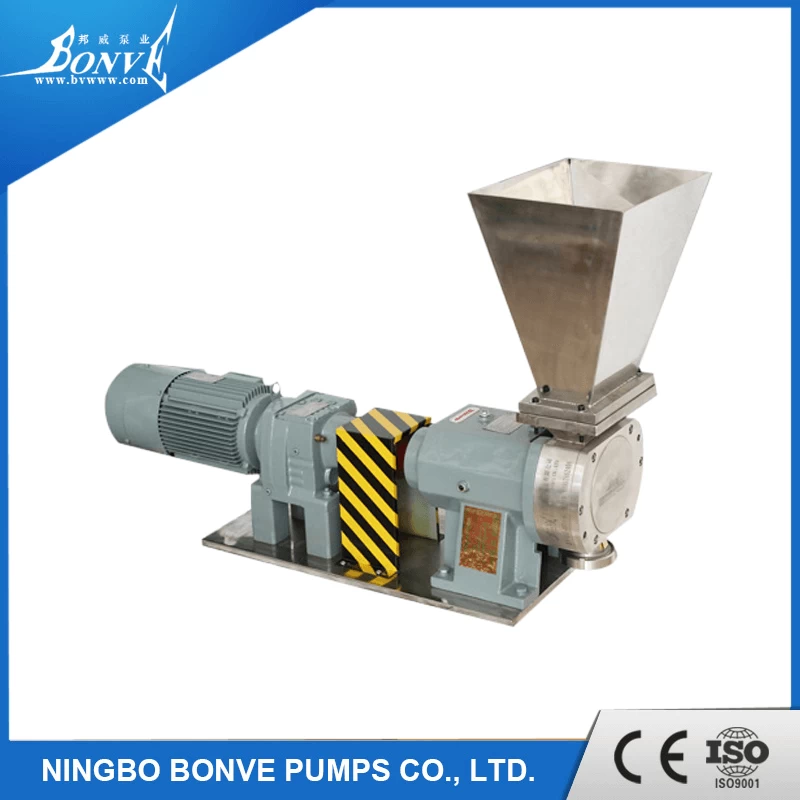

Gear reducer + motor: the driving is easy with constant rotary speed of the rotor, which also leads to non adjustability of flow.
Frequency transformed motor + transducer: it realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.
PUMP TECHNICAL PARAMETERS
|
Model
|
Displace
-ment
(L/r)
|
Rotation
speed
(r/min)
|
Flow
rate
(M³/h)
|
Dis.
Pre.
(Mpa)
|
Electrical
power
(Kw)
|
Suc.
Pre.
(Mpa)
|
Dia. of inlet and outlet (mm)
|
|
25BV6 /12-2
|
0.15
|
20-600
|
2
|
0.1-1.2
|
1.1-2.2
|
-0.095
|
25
|
|
40BV6 /12-5
|
0.32
|
20-550
|
5
|
0.1-1.2
|
1.5-4
|
-0.095
|
40
|
|
50BV6 /12-10
|
0.65
|
20-550
|
10
|
0.1-1.2
|
2.2-7.5
|
-0.095
|
50
|
|
65BV6 /12-20
|
1.74
|
20-550
|
20
|
0.1-1.2
|
4-15
|
-0.095
|
65
|
|
80BV6 /12-30
|
2.48
|
20-550
|
30
|
0.1-1.2
|
5.5-22
|
-0.095
|
80
|
|
80BV6 /12-40
|
3.65
|
20-550
|
40
|
0.1-1.2
|
7.5-30
|
-0.095
|
100
|
|
125BV6 /12-50
|
4.60
|
20-550
|
50
|
0.1-1.2
|
11-45
|
-0.095
|
125
|
|
125BV6 /12-70
|
6.10
|
20-550
|
70
|
0.1-1.2
|
15-55
|
-0.095
|
125
|
|
125BV6 /12-80
|
7.63
|
20-550
|
80
|
0.1-1.2
|
18.5-75
|
-0.095
|
125
|
|
150BV6 /12-120
|
11.56
|
20-420
|
120
|
0.1-1.2
|
22-90
|
-0.095
|
150
|
|
150BV6 /12-150
|
14.22
|
20-420
|
150
|
0.1-1.2
|
37-110
|
-0.095
|
150
|
|
200BV6 /12-200
|
18.10
|
20-420
|
200
|
0.1-1.2
|
45-132
|
-0.095
|
200
|
|
250BV6 /12-250
|
22.92
|
20-420
|
250
|
0.1-1.2
|
55-160
|
-0.095
|
250
|
|
300BV6 /12-300
|
32.00
|
20-420
|
300
|
0.1-1.2
|
75-200
|
-0.095
|
300
|
Parameters are based on water as medium, only for your reference. Pls fill in below table. It is model selection guideline. Once receive, our technical quotation will be offered. Thanks for your love to our pump.
|
Liquid information
|
|
Your industry: __________ Liquid name:___________
|
|
Features: Sanitary[ ] Corrosive[ ] Poisonous[ ]
|
|
Viscosity:_______cp Density:_______ Temperature:_____℃ PH value:________
|
|
Solid content:_______ Max. size of particle:_______
|
|
Using condition
|
|
Capacity: Max. required__________ L/H Working required__________ L/H
|
|
Discharge pressure: Max. required__________Mpa Working required__________ Mpa
|
|
Suction pressure: Max. required__________Mpa Working required____________ Mpa
|
|
Delivery head required:____________ Vacuum:________ Mpa
|
|
Heating jacket required: Yes[ ] No. [ ] Heating temp.:_____℃
|
|
Liquid inlet/outlet direction: Horizontal [ ] vertical [ ]
|
|
Pipe size: Inlet___________ Outlet____________
|
|
Connection type required: Flange [ ] Thread [ ] Clamp [ ]
|
|
Installation type: Fixed [ ] Movable [ ]
|
|
Operating status: Continuous [ ] Interruption [ ]
|
|
Liquid contact material: SS304 [ ] 316 [ ] 316L [ ] Others________
|
|
Special request_____________________________________
|
|
Order qty.
|
CONTACT US
Bonve is Chinese leading manufacturer of Lobe Pumps for high viscosity liquid products. Pls contact us for a pump solution to your targeted application.
Email: cathy@bonvepumps.com
skype : pump-girl
Tel : 0086-574-87769810
Mobile/whatsapp : 0086-13616639068
