HIGH VOID RATIO UNDER DRIVEWAY MODULAR SOAKAWAY CELLS
The connected locker hole between each modular soakaway cells can connect the adjacent plates closely by coordinating with small accessories, to reinforce the firmness f the whole plates.
According to the different rainwater sources, the rainwater collection system can be roughly divided into two categories:
1.Roof rainwater, the roof rainwater is relatively clean and with less foreign matters, mud and other pollutants, it can be drained directly into water storage system through split-flow and simple filtration for the utilization after processing.
2.Ground rain water, there are many foreign matters in the ground rainwater with complex pollutant source, after the split-flow and rough filtration, it must be treated through sediment then to be drained into the water storage system.
 |
Item No.: #M2014
Size: 680x410x450mm
Material: 100% Recycled PP
Load Capacity: 25T-35T/m2
Tanks: 8tanks/cbm
Void Ratio: 88%-92%
Water Storage: 110L/tank
Weight: 8kg/tank
|
 |
Item No.: #M2015H
Size: 800x490x250mm
Material:100% Recycled PP
Load Capacity: 28T-38T/m2
Tanks: 10tanks/cbm
Void Ratio: 88%-92%
Water Storage: 90L/tank
Weight: 7.5kg/tank
|
 |
Item No.: #M2015F
Size: 800x490x530mm
Material: 100% Recycled PP
Load Capacity: 28T-38T/m2
Tanks: 5tanks/cbm
Void Ratio: 90%-93%
Water Storage: 185L/tank
Weight: 12.7kg/tank
|
 |
Item No.: #M2016S
Size: 1000x500x500mm
Material: 100% Recycled PP
Load Capacity: 30T-40T/m2
Tanks: 4tanks/cbm
Void Ratio: 90%-93%
Water Storage: 235L/tank
Weight: 15kg/tank
|
 |
Item No.: #M2016B
Size: 1200x600x700mm
Material: 100% Recycled PP
Load Capacity: 35T-45T/m2
Tanks: 2tanks/cbm
Void Ratio: 90%-95%
Water Storage: 475L/tank
Weight: 27kg/tank
|
APPLICATION AREA
Can be mainly used for rainwater storage, recycle or soakaway. The drainage system and water storage-permeation and filtration system along side the roads, parking lot, water storage and drainage for the ecological shallow ridges, living community, factories and enterprises, municipal roads, viaducts and bridges, park and scenic sport, it shall be the necessity for construction of sponge city.
RAINWATER HARVEST MODULES
Rainwater harvesting module shall be the core part of rainwater collection system, it can be used for water storage but no occupying the space as the new product; it has the ultra strong pressure bearing capacity; the 95% hollow space can accomplish the water storage with better efficiency.
FEATURE
RAINWATER HARVEST MODULES
Outlines Characteristics of GS Tank
1.The original space could be recycled, thus to save the space accordingly.
2.Quite low cost.
3.Optimized water storage efficiency.
4.Quick installation, saving the time and improving the construction schedule.
5.Do not need the post maintenance.
Structure Characteristics of GS Tank
-95% hollow space, with the sufficient utilization and realizing the fasting water storage, the water can be flowed through the modules freely.
-Fully utilizing the dynamics and logistics principles, with a large number of applications if “triangle’s stability”, and the round shape could resist the stretch and extrusion accordingly.
-Uniquely using the hollow circular column at the key supporting points, both saving the space and improving the load capacity
-Distributing the loaded weight on to all the plates, fully utilized the effect of each plate.
-The preserved socket and ports among the plates bring the convenience for quick installation.
-The connected locker hole between each module can connect the adjacent plates closely by coordinating with small accessories, to reinforce the firmness f the whole plates.
The Unique Characteristics of GS Tank
-With the use of high-purity regenerated PP polypropylene, to reach the service life more than 40 years.
-No precipitate after soaked in water, odorless, and with the ultra strong property of anti-strong acid and anti-strong alkali.
-Multiple sizes could adapt to the demand of different engineering(the height of modules 250mm, 450mm, 500mm, 530mm, 700mm).
-Certified by American TRI testing institution, meeting the HS-20 standard in US market.
-Bearing capacity in even 35tons/sqm, much higher than the 25tons/sqm as well as the other peers.
-Being purchased widely by international customers, mainly exported to the US, Europe and Australia.
STRUCTURE COMPOSITION GS TANK
M2015 Series
-Simple structure, be composed of two kinds of plate parts
-Economical and practical, adjust the number of plates according to the load-bearing requirements.
-Flexible matching, be equipped with a half-size module

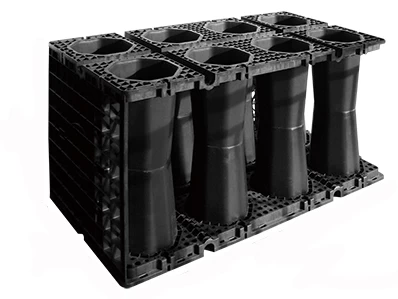

M2016 Series
-Quick installation, large volume and great load bearing value of a single module
-Columnar structure, be composed of three parts
-High void ratio, dust is washed away more easily.
