European standard 0-10v led controller dimmer touch panel led light dimmer
This
0-10v led dimmer controller provide 50mA,user can calculate led driver consumption to know how many led driver can be controlled （eg:100w led driver consumption is 0.15mA,50/0.15 which mean can control about 300pcs led driver by this dimmer.）
Description:
|
Model
|
SMT50-R-D1
|
|
Supply voltage
|
AC100-265V
|
|
Frequency
|
50/60Hz
|
|
Output Voltage
|
0-10VDC
|
|
Output current
|
50mA
|
|
output wattage
|
0.5w
|
|
Product dimension
|
L86*W86*H51mm
|
|
Weight
|
190g/NW;
|
Funtion Description

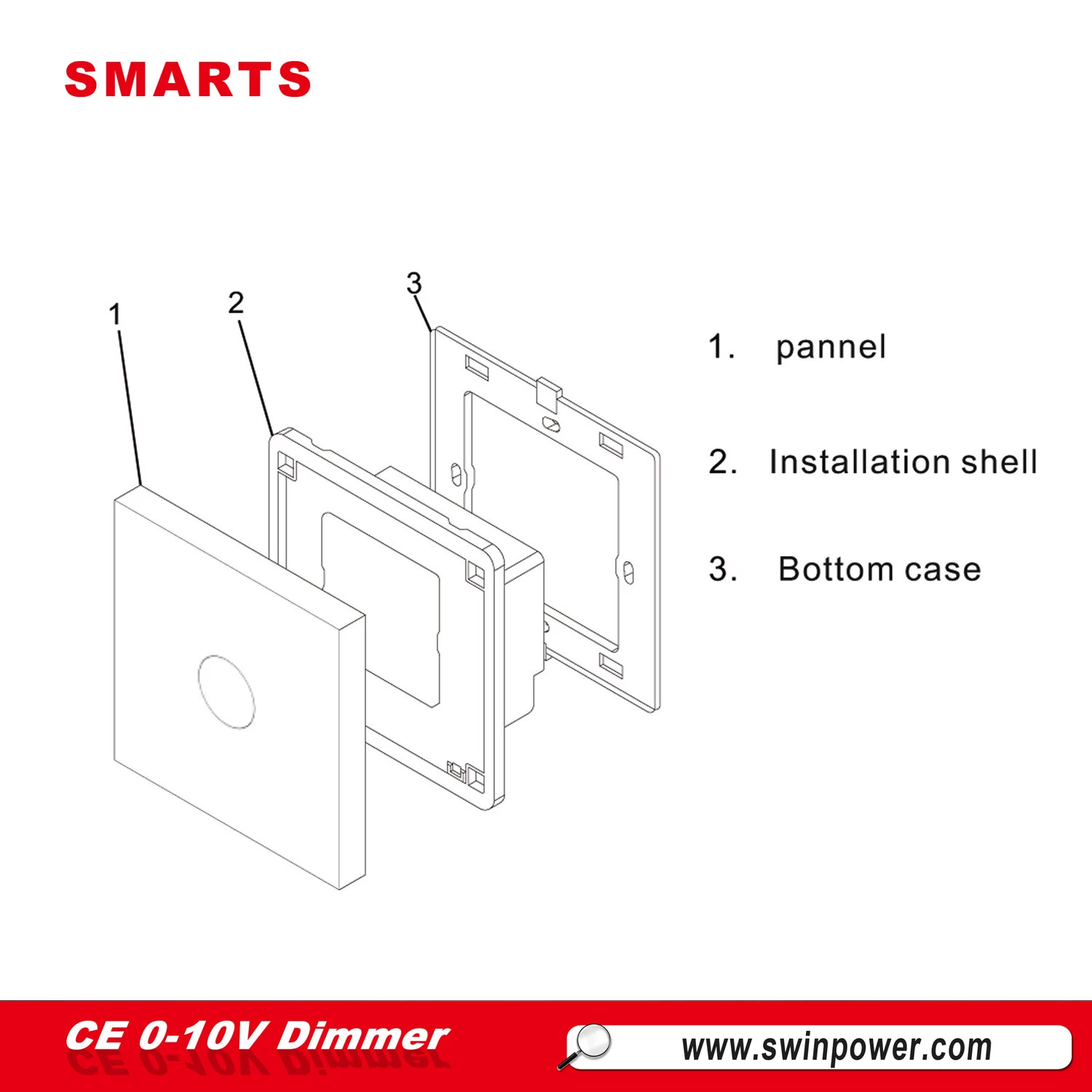

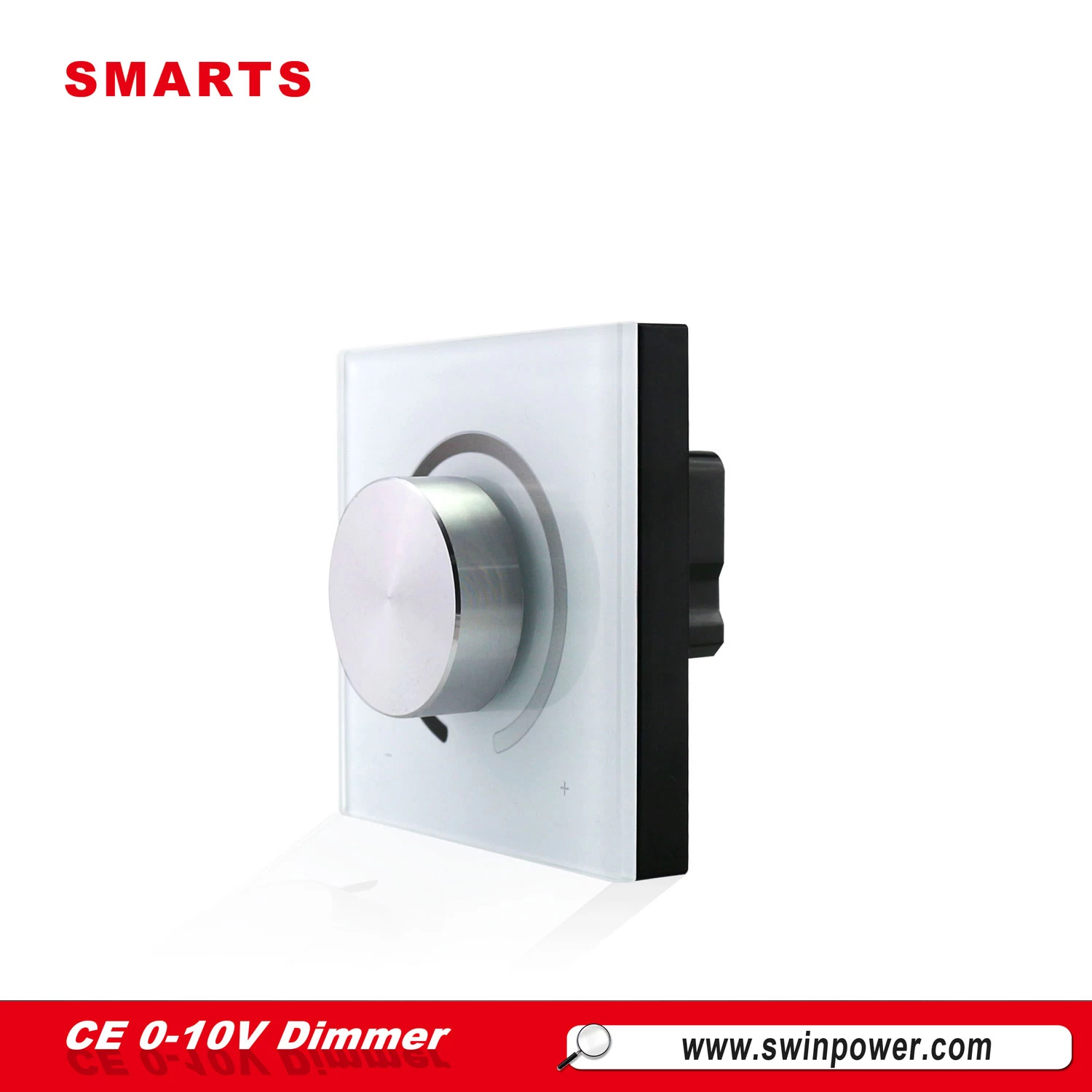

Part of device
Wiring diagram

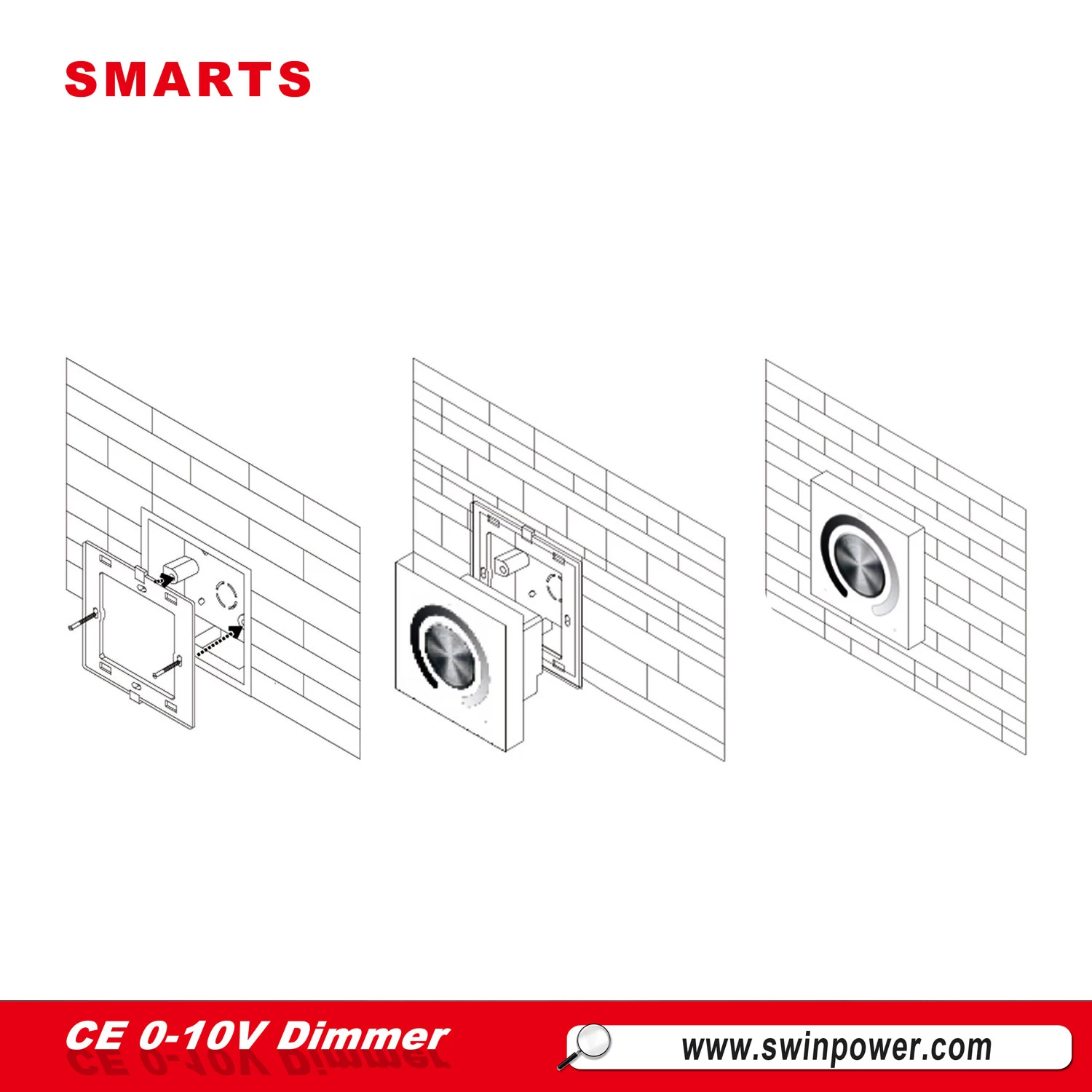

Operation:
Problem analysis:
1) The Static power of 0-10v dimmer is < 1.2w, while the Static power of the knob is < 0.5w.why is it set like this?What kind of relationship between How does the amount of power relate to how many power sources it can control?
Static power consumption refers to the power consumption of the dimmer when it works alone. Because the circuit structure of the knob is different, the scheme used is different, so its static power consumption will be lower, and because the touch dimmer needs more chips. Realize its function, so its power consumption is large. The amount of power consumption does not matter how many power supplies it can control.
2) why is the Output current of 0-10v dimmer is 50mA, How to calculate the dimming output current loss of the power supply?
Each manufacturer do dimmer output current is different, 50 mA is our own design, without any reference guide, mainly aimed at the dimmable led power supply absorption of light to calculate,If the power source needs to absorb 0.5mA, then the dimmable led power supply can control 100pcs of power supply at the same time. Only in theory, no one actually use it, because the output DC voltage of the dimmer is 10V, the signal line length causes the voltage drop, and the synchronization difference is also very big
Company information
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd??
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.

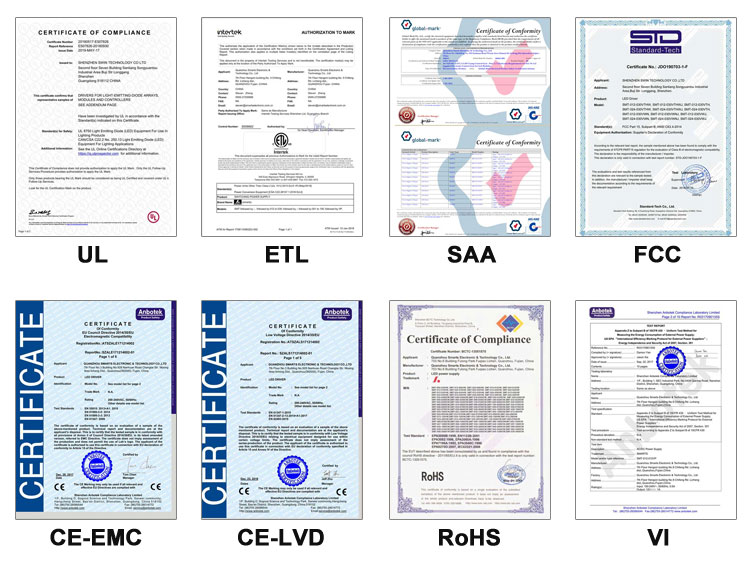

2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
