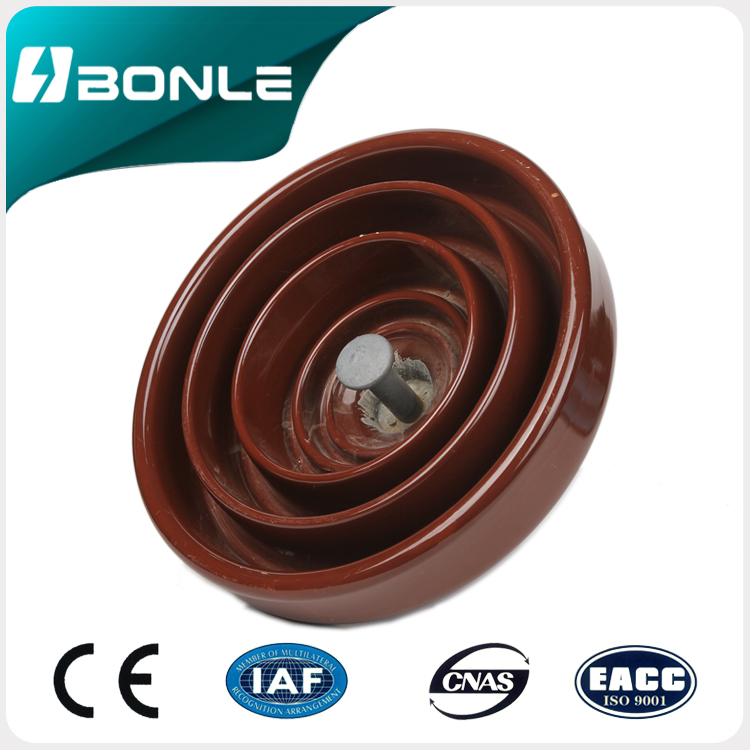

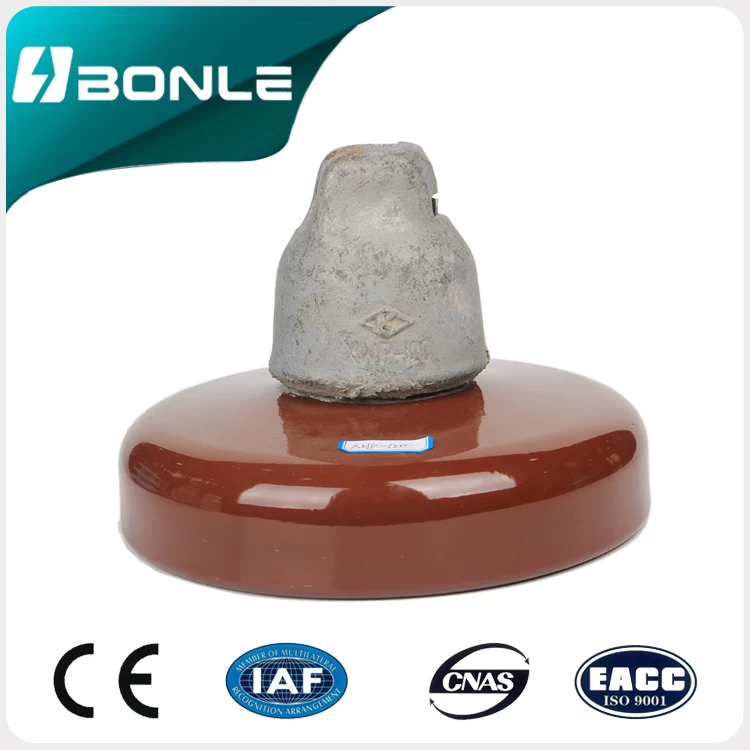

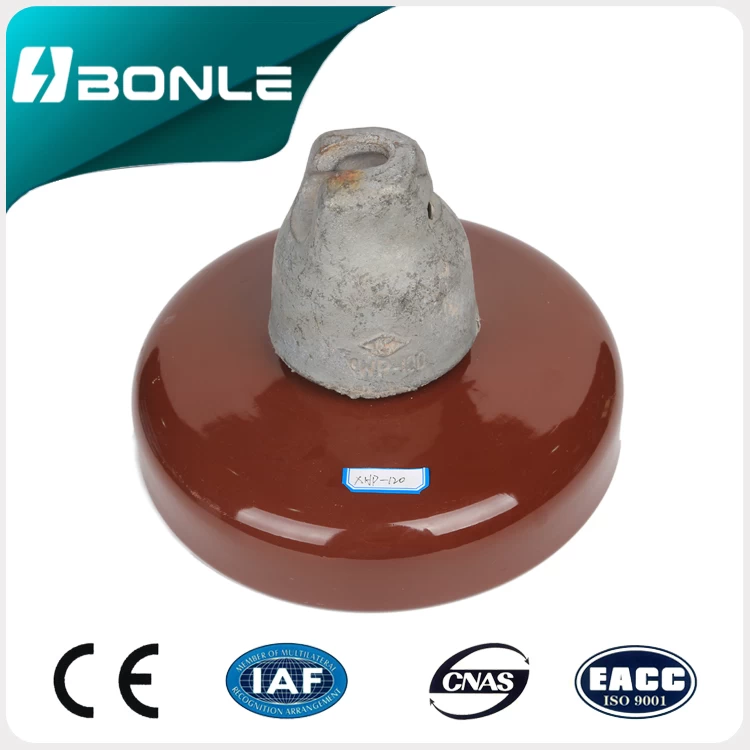

High voltage Anti-fog suspension disc cap XHP 120 insulator

  • High quality standard(IEC,BS,ANSI,AS,DIN,GB)
  • Competitive price
  • ISO9001:2008/ISO14001:2004/GB/T 28001-2011/



High voltage Anti-fog suspension disc cap insulator  XHP 120



  Product Description

Product Name

 Elegant Top Quality Custom-Tailor Overhead Line Insulators

Product No.

 XHP-120

Type

 fog & aerodynamic

Material

 porcelain

Color

 brown

Weight(kgs)

 50

Application

 High voltage

Standard

 IEC

Packaging Details

 Woodern cases

Delivery Detail

 30 DAYs

Payment

 L.C,T/T, WU, MG, PayPal

Carton Size(cm)

 48x45x29

 We’re professional high voltage electrical product manufacture,supply various Anti Fog Insulator etc.



Insulator XHP 120

disc insulator

suspension insulator

70kN Anti-fog porcelain disc suspension insulator for high voltage :

IEC CLASS

Fig.

No.

Unit Spacing (H) mm



Disc  Dia.  (D)   mm

Leakage Distance  (mm)

Rated E&M Failing load (kN)

Routine Tension Load (kN)

Impact Failing Load (N.m)

Wet Power-Frequency withstand voltage(kV)

Lightning Impluse Withstand Voltage(kV)

Radio-influence Voltage

Power Frequency Puncture Voltage

Test Voltage To Ground

Max RIV at 1Mhz(uV)

XHP-70

1

146

255

432

70

35

5.6

42

120

10

50

120

XHP-70C

2

146

255

432

70

35

5.6

42

120

10

50

120

XHP-80

1

146

255

432

80

40

5.6

42

120

10

50

120

XHP-80C

2

146

255

432

80

40

5.6

42

120

10

50

120

XHP-100

1

146

255

432

100

50

6.8

42

120

10

50

120

XHP-100C

2

146

255

432

100

50

6.8

42

120

10

50

120

XHP1-100

1

160

280

432

100

50

6.8

45

120

10

50

120

XHP-111

1

146

255

432

111

55.5

7

42

120

10

50

120

XHP-111C

2

146

255

432

111

55.5

7

42

120

10

50

120

XHP1-111

1

146

255

488

111

55.5

7

45

125

10

50

120

XHP-120

1

146

255

432

120

60

7

42

120

10

50

120

XHP1-120

1

146

280

450

120

60

7

45

120

10

50

120

XHP-120C

2

146

280

450

120

60

7

45

120

10

50

120

XHP-160

1

160

300

450

160

80

10

45

130

10

50

130

XHP1-160

1

170

320

525

160

80

10

55

135

10

50

130

XHP-210

1

170

300

450

210

105

10

45

130

10

50

130
