800W single output 118V switching power supplies
Description:
This K18C-UP800S model switching power supplies is suitable for use in telecommunications, networking, test and measurement, IT applications, general electronics, low profile systems, automation, POS, motor based machinery and non patient contact medical equipment.
Features:
1, 800W high efficiency 118v single output power supplies;
2, K18C-UP800S118FA model have small size, high efficiency;
3, International universal full voltage input;
4, 800W single output 118v built-in active PFC function;
5, Built-in filter, low noise, high reliability;
6, Overload, short circuit, under voltage, over voltage, over temperature protections and etc.
|
Parameter
|
|
Item No.
|
K18C-UP800S118FA
|
|
Output
|
Input voltage
|
+118VDC
|
|
Rated current
|
6.8A
|
|
Rated power
|
802.4W
|
|
Ripple & noise
|
1000mVp-p
|
|
Voltage adjustable range
|
110-125V
|
|
Output accuracy
|
±2%
|
|
Line regulation
|
±1%
|
|
Load regulation
|
±1 %
|
|
Set up,rise,keep up time
|
300ms,20ms,12ms
|
|
Input
|
Input voltage range
|
100V~240V AC
|
|
Input current
|
3.8A/230Vac 7.6A@115Vac
|
|
Frequency range
|
47-63Hz`
|
|
Efficiency@230Vac
|
92%
|
|
Power factor
|
PF＞0.98/115V或PF＞0.95/230V
|
|
Inrush current
|
Cold start 60A/230Vac
|
|
Leakage current
|
<0.5mA@240V
|
|
Protection
|
Overload protection
|
105~150% hiccup protection, automatic recovery.
|
|
Short circuit protection
|
Deadlock protection, need to restartfor recovery.
|
|
Output over-voltage protection
|
＞120% Shut down,Locked protection, Return to normal after restart
|
|
Over-temperature protection
|
TS1 position＞105℃it will be protection, then automatic recovery
|
|
Function
|
Fan supply
|
12V@0.3A for driving a fan,tolerance±15%
|
|
Remote control
|
Remote ON/OFF function
|
Power ON: shortcircuit Power OFF：open circuit
|
|
Environment
|
Work temperature,humidity
|
-20~60℃,10~90% RH,No condensation
|
|
Storage temperature humidity
|
-20~85℃,10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety& EMC
|
Safety standards
|
GB4943 EN60950
|
|
Withstand voltage
|
I/P-O/P:3KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
/
|
|
Others
|
MTBF
|
＞50K hrs
|
|
Dimension
|
168*82*55 mm
|
|
Weight
|
0.8 KG
|
|
Note
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

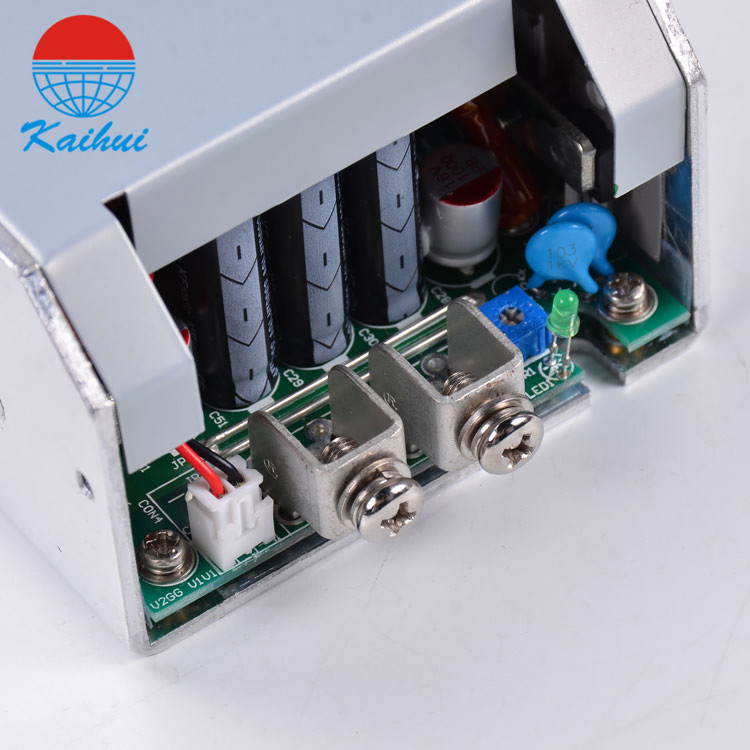

Product picture:
