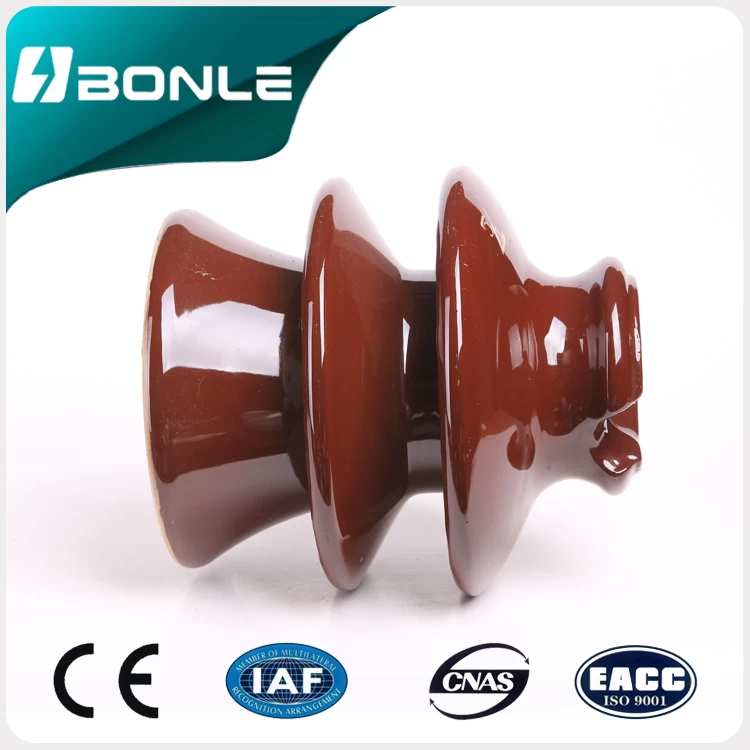

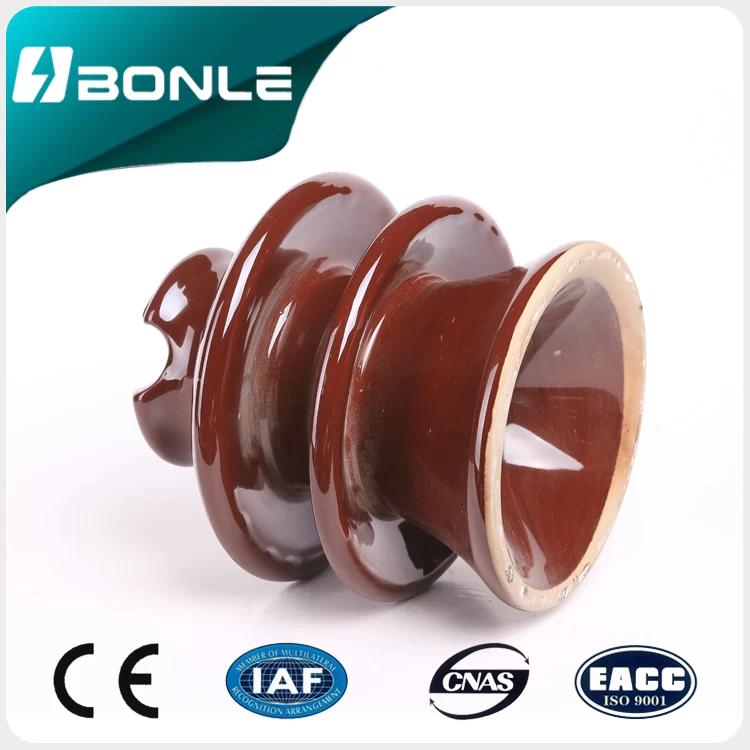

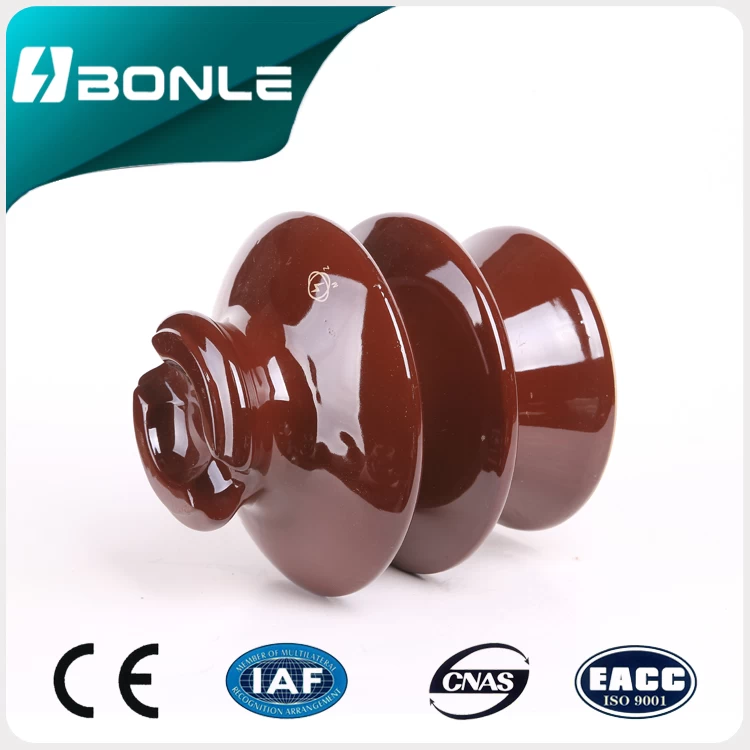

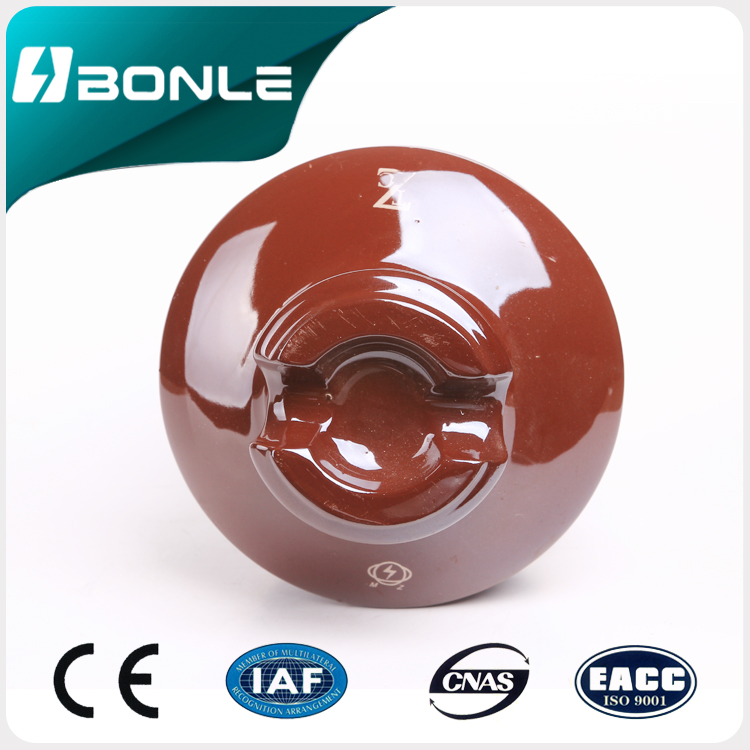

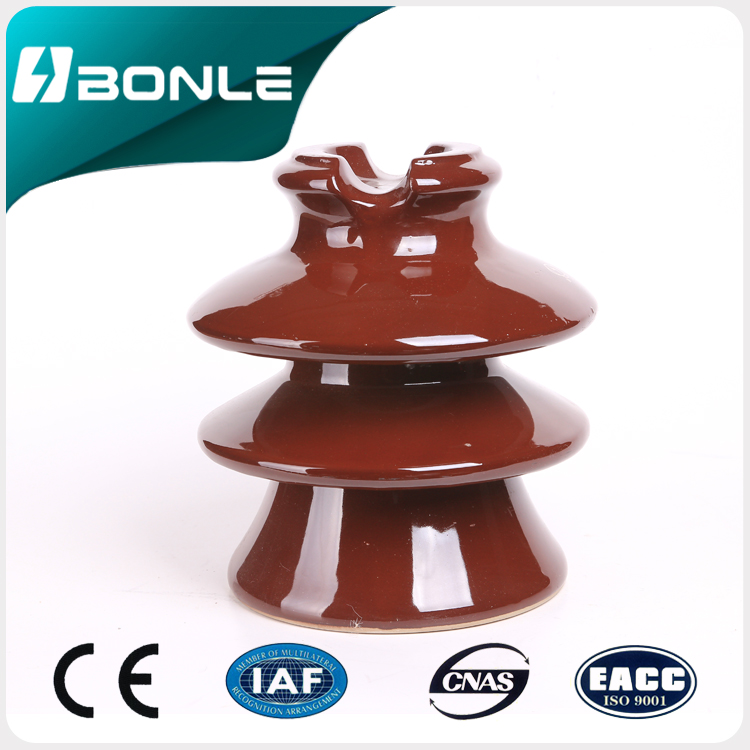

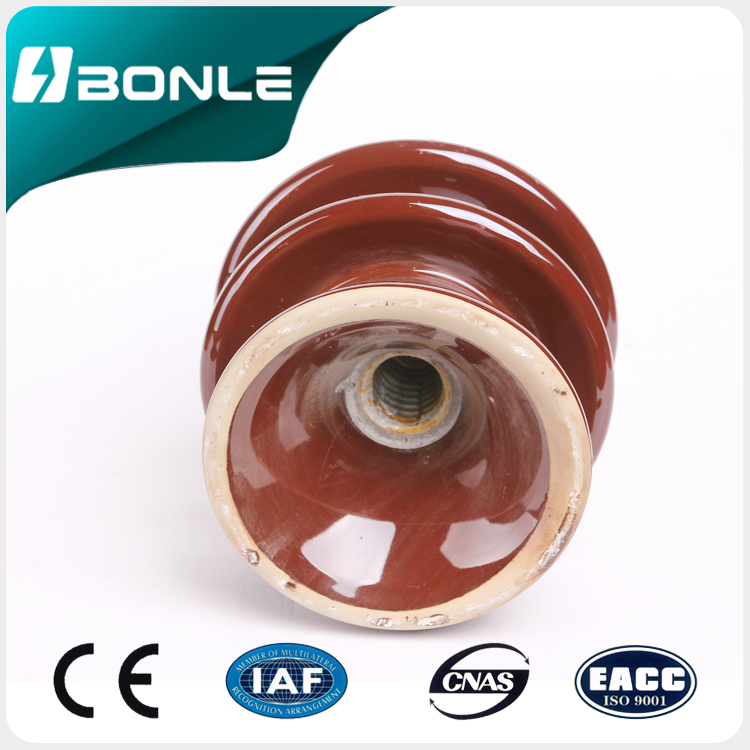

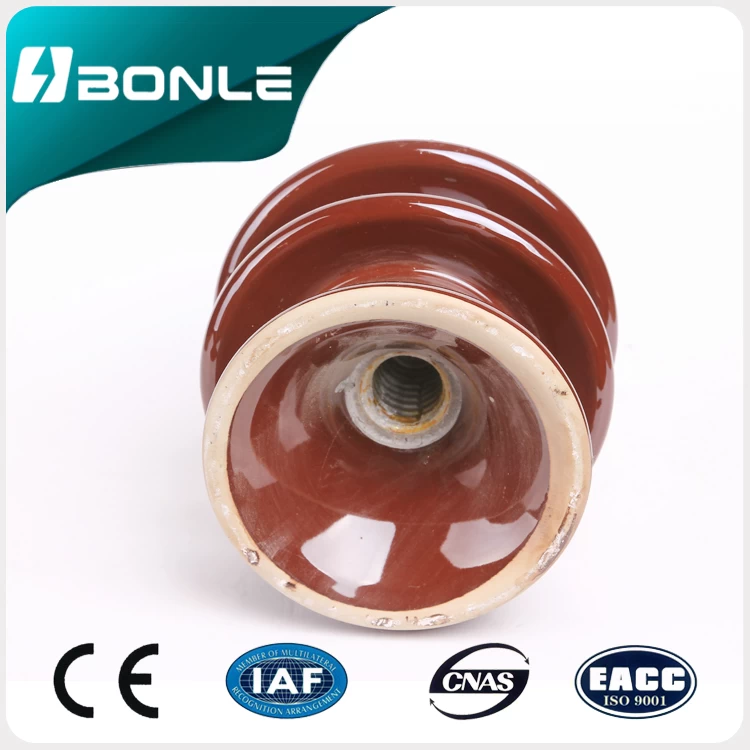

Electrical ceramic pin type insulator P-11-Y pin type insulator
The porcelain insulator are used on substation & transmission Line. It helps to support and hand wire, insulation wires against tower.
Find Pin Insulator manufacturers from China. Import quality Pin Insulator supplied by experienced manufacturers at bonle.net.
Advantage:
1, Strong aging resistance
2, Long service life
3, Reasonable price
4, Porcelain uniform
5, Nice Appearance
6, Superior properties of high and low tempreture resistance, mechnical capability, electrical function.
Our overhead transmission line and substation project,including 11kv Pin Insulator,Power Fitting,Cutout Fuse,Lightning Arrester and Isolate Switch. They have been created for outdoor use.
Standard particulars
CLASS ANSI
|
P-11-Y
|
Main Dimension(mm)
|
D
|
140
|
H
|
133
|
Creepage Distance/mm
|
240
|
Power Frequency Puncture Voltage Average(KV)
|
135
|
Average flashover voltage
|
Power-frequency
|
Dry (KV)
|
75
|
Wet(KV)
|
45
|
50%Impulse
|
Positive (KV)
|
100
|
Negative(KV)
|
110
|
Radio-influence voltage
|
Test voltage to ground (KV)
|
15
|
Maximum RIV at 1000Khz(kv)
|
8000
|
Nominal Voltage/KV
|
11
|
| Impulse/KV |
-
|
Cantilever Failing Load
|
1080
|
Weight(kg)
|
1.8
|
| |
|
