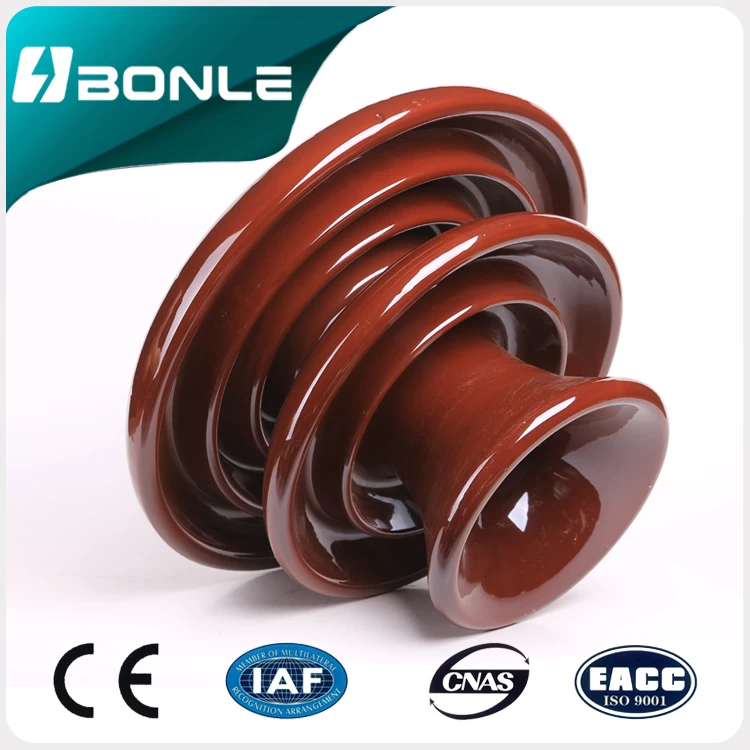

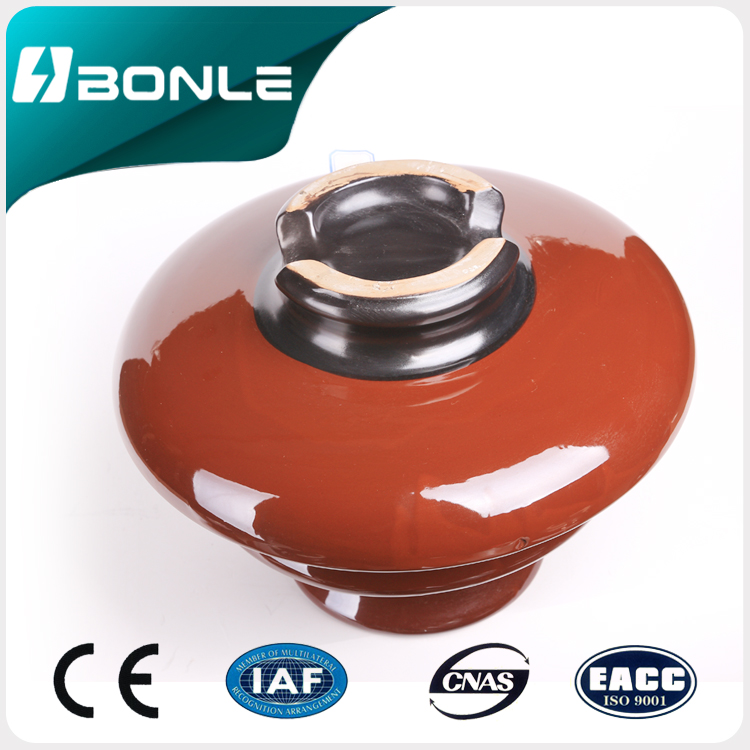

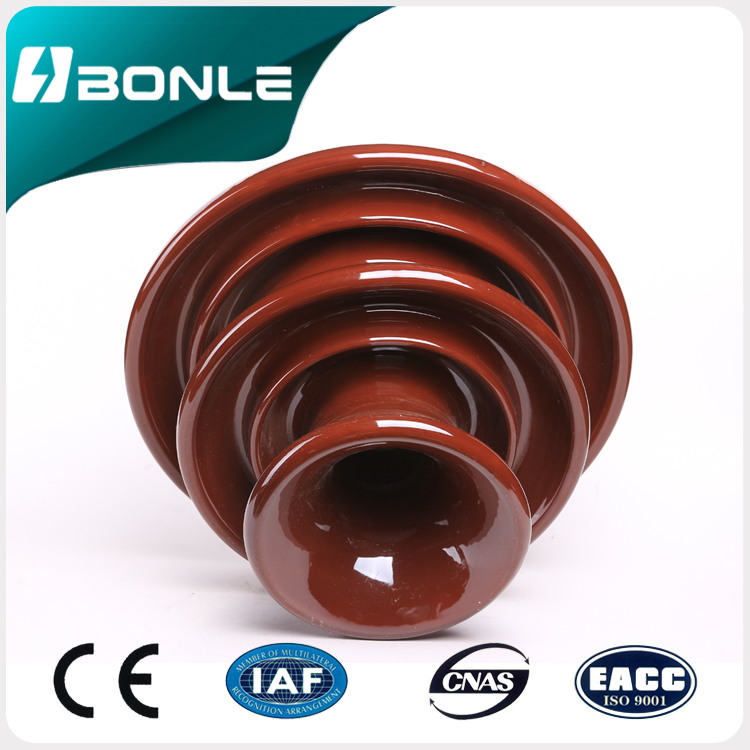

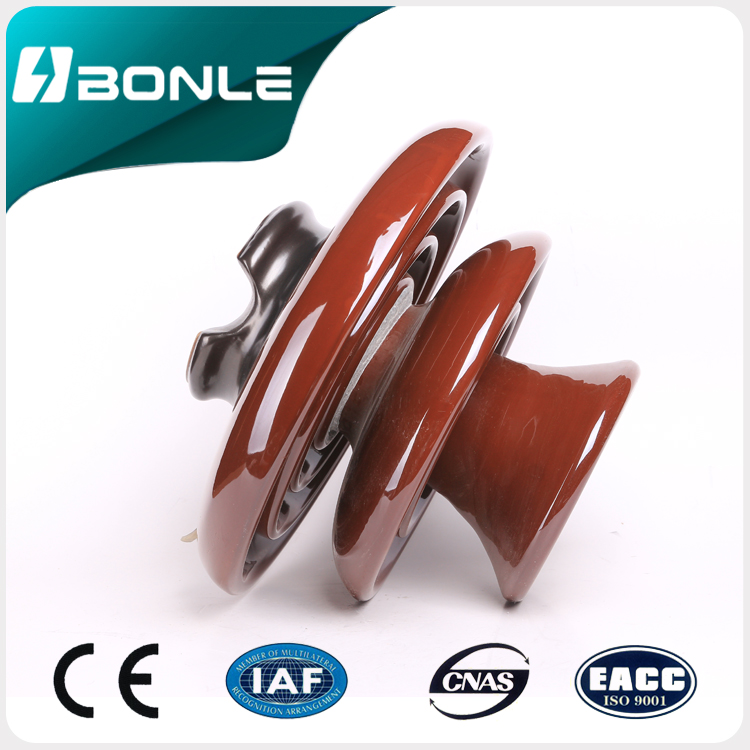

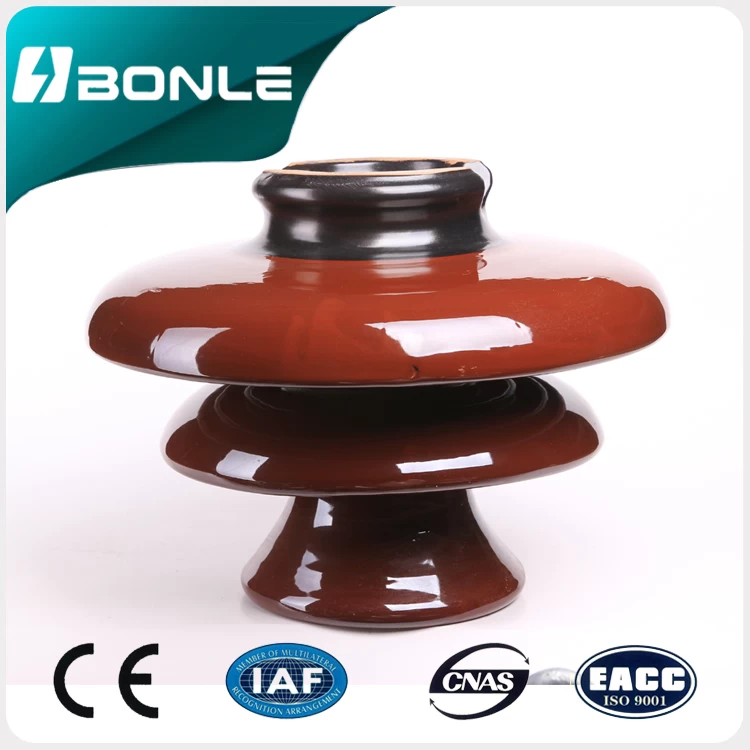

High voltage overhead transmission line 33kv pin pot P-33-Y insulator

  • High quality standard(IEC,BS,ANSI,AS,DIN,GB)
  • Competitive price
  • ISO9001:2008/ISO14001:2004/GB/T 28001-2011/



  • High voltage overhead transmission line 33kv pin pot insulator P-33-Y


33kv Pin Pot P-33-Y Insulator

High Voltage Overhead Transmission Line 33kv Pin Pot P-33-Y Insulator

High Voltage Overhead Transmission Line 33kv Pin Pot Insulator P-33-Y

  Product Description

Product Name

 Top Quality Oem Service Alumina Insulator

Product No.

 P-33-Y

Type

 pin

Material

 porcelain

Color

 brown or grey

Weight(kgs)

 29

Application

 High voltage

Standard

 BS

Packaging Details

 Woodern cases

Delivery Detail

 30 DAYs

Payment

 L.C,T/T, WU, MG, PayPal

Carton Size(cm)

 60.5x43x28

BS Class

P-11-y

P-15-y

P-22-y

p-33-y

P-33-y

Fig No.

1

2

3

3

4

Glazed A:Plair B:Radio Freed

11

15

22

33

33

Main dimension

H

133

137

165

191

244

h

48

48

52

52

52

d

140

152

230

267

279

R1

18.3

27.8

27.8

27.8

27.8

R2

13

13

19

19

19

Nominal Voltage KV

9.5

13

14

14

13

Creepage  Distance /mm

255

289

432

533

630

Low Frequency

Voltage(kv)



Dry Flashover

75

80

110

125

130

Wet Flashover

50

55

70

80

95

Dry withstand

65

70

100

120

125

Wet withstand

45

50

65

70

90

Puncture

135

150

160

170

210



Critical impulse

Positive/kv

115

135

175

200

215

Negative/kv

150

175

225

265

290



Radio-influence voltage

Test Voltage to Ground

15

15

22

30

30

Maximum RIV

at 1000KHZ/uV

8000

8000

12000

200

16000

Cantilever Failing Load(Ib)

2400

2400

3000

3000

3000


We’re professional high voltage electrical product manufacture,supply various Pin Pot Insulator etc.
