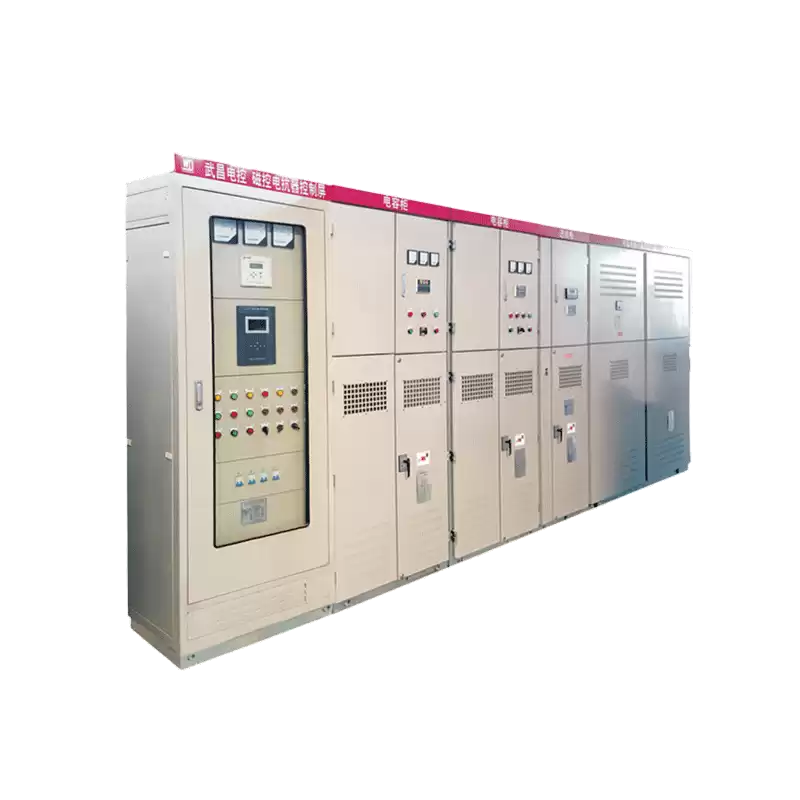

High-Voltage Reactive Power & Harmonic System WD-JSMSVC

The WD-JSMSVC is a high-voltage system designed for bidirectional dynamic reactive power compensation and harmonic mitigation. It uses parallel capacitors and series reactors to adjust reactive power, suppress overvoltage, and stabilize the grid. Ideal for long-distance power lines, traction systems, and heavy industrial loads, it enhances power quality, reduces losses, and improves grid stability with fast, precise control.









  • WD-JSMSVC Reactive Power & Harmonic System Features
  • # High Reliability

     Protects against temperature and grid fluctuations, extending component life and reducing failure rates.
  • # Bidirectional Reactive Power Control

    Enables precise power regulation with adjustable capacitance and inductance between 1-100%.
  • # Fast Response Time

    Responds quickly to load changes, with a transition time of 20ms to 200ms.












  • Specifications



System Voltage Levels 6kV/10kV/27.5kV/35kV
Rated Capacity Not Less Than 200kVar
PT Input Voltage AC100V
CT Input Current AC5A
Working Power Supply DC220V/AC220V
Power Factor Adjustment 0.8-1.0 Adjustable
Reactive Power Adjustment 0-100% Adjustable
Response Time 5-100ms
Harmonic Content <1%
Loss 0.6%-2%
Installation Location Indoor/Outdoor

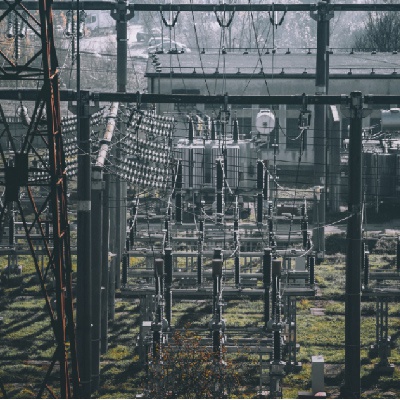

  • Application Scenarios
