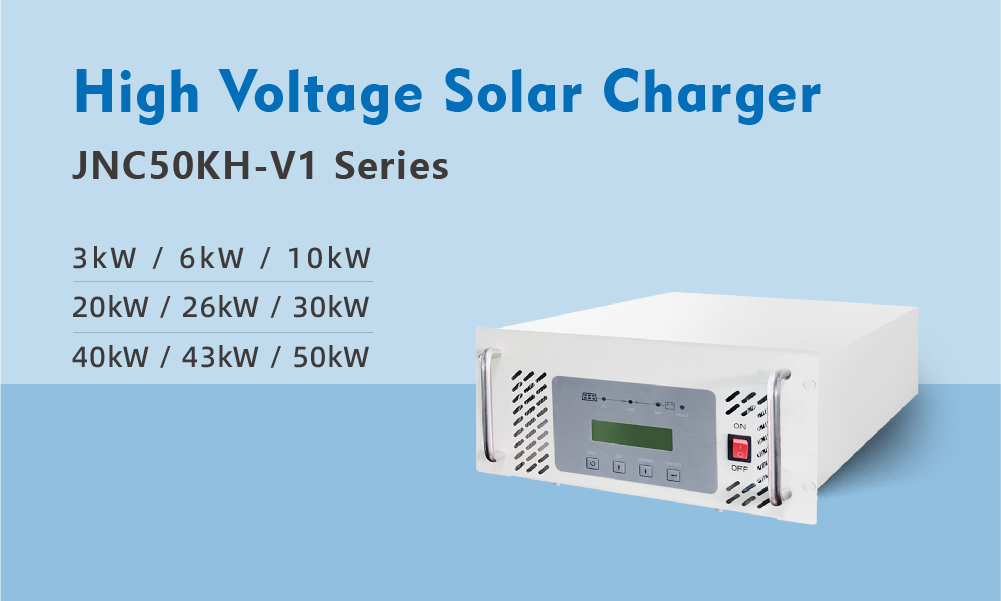

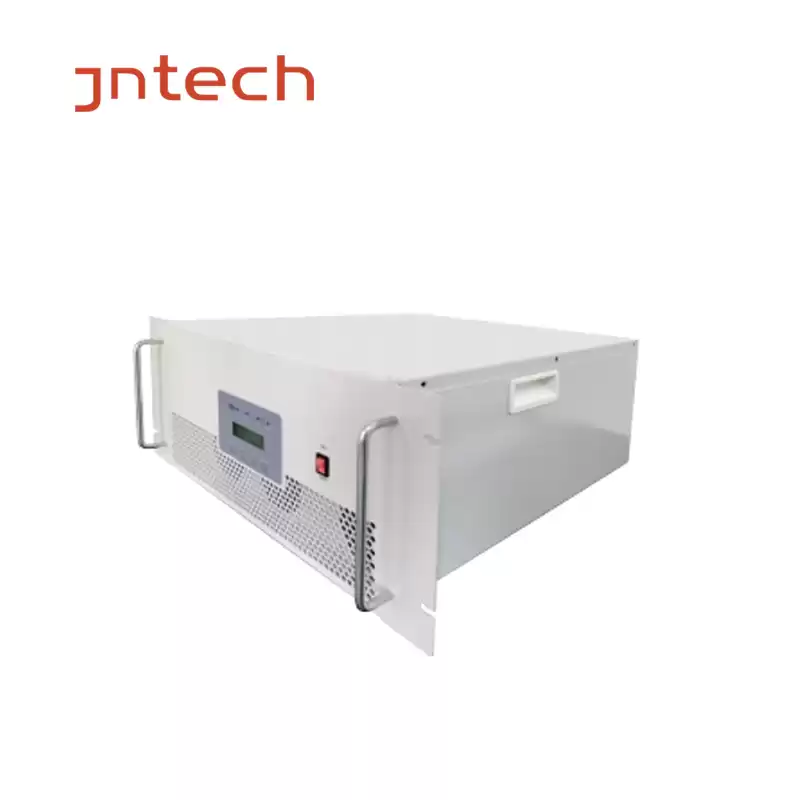

High Voltage Solar Charger 3-10kW For Solar Power

The High Voltage Solar Charger is designed for large-scale solar energy storage systems and direct-drive solar power supply systems.Advanced MPPT tracking technology, tracking efficiency greater than 99%



Solar Battery Charger High Voltage

High Voltage Solar Charger 3-10kW For Solar Power

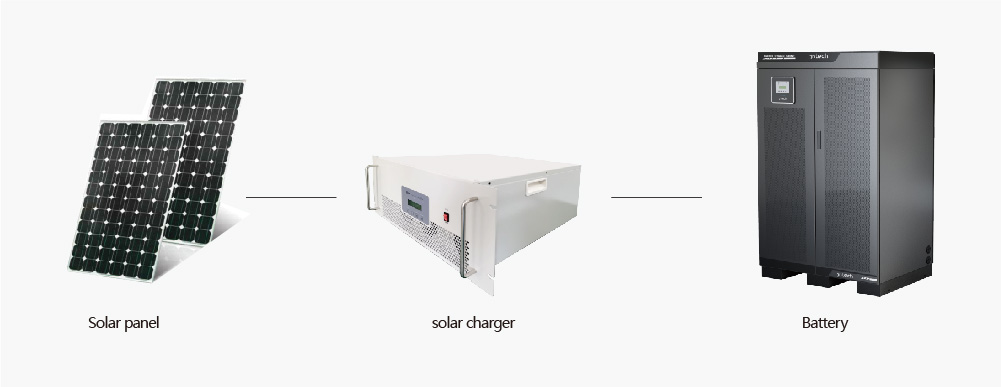

The high voltage mppt solar charger control algorithm utilized in the solar charger optimizes real-time solar panel energy output and allows for customizable battery parameters. The controller can charge the battery independently and can also be integrated with an energy storage system. Additionally, it offers remote control and parallel operation via external communication.

Features:

  1. Advanced MPPT tracking algorithm with over 99% efficiency.
  2. Using IGBT as electronic switch and highefficiency mute magnetic components, high efficiency, fast response, low noise.
  3. LCD display shows a variety of electric alparameters and can be used to customize battery parameters.
  4. Long-lasting design featuring IP65 protection level,suitable for complex outdoor operating environments.
  5. In addition to charging the battery, it can also power DC loads like heaters and resistive loads.
  6. Ultra-wide input voltage range and designed for high voltage output.
  7. Charge and discharge management can be controlled by RS485 and CAN controllers.

Machine model JNC3KH-V1 JNC6KH-V1 JNC10KH-V1
PV input
Max. input voltage 500VDC
MPPT  range 200VDC~400VDC 200VDC~400VDC 300VDC~400VDC
Max. charging power 3kW 6kW 10kW
Battery
Battery rated voltage 96VDC 144VDC 240VDC
Max. charging current 35A
Max. efficiency ≥90%
Machine parameters
Dimensions(W/H/D) 462*130*246mm
Weight 6.2Kg
Other parameter
Protection level IP21
Noise <60dB
Cooling way Forced air cooling
Operating temperature -20~+55℃
Storage temperature -25~+70℃
Display LCD/LED
Altitude 2000m(>2000m derating operation)
Fault protection With input over-voltage protection, output over-voltage protection, output over-current protection, output short-circuit protection, input and output anti-reverse connection protection, heat sink
over-temperature protection, etc
Safety requirements Insulation resistance≥100MΩ   Insulation strength AC1500V/1min
Compliance CE; lEC 62109-1; lEC 62109-2;
