High voltage solar inverter 415v grid tie 30kw 40kw 50kw 60kva three phase solar inverter solar power inversor

The energy storage inverters are to convert the AC current of the city electricity into the DC current to charge and store the battery (battery), and then convert the DC current stored in the battery into the AC current of the city electricity for the use of household appliances when the city power is cut off.








  • Lead time7 DAYS
  • Size600×860×294mm
  • CertificateEN62109-1, EN62109-2, NB/T32004, AS4777.2,EN 61000-6-2, EN 61000-6-4, DIN VDE0126, UTE C15-712-1, VFR2014, ERDF-NOI-RES_13E,
  • Voltage300Vdc~1000Vdc
  • Power30KW/40KW/50KW/60KW
  • PaymentT/T,PAYAPL,WESTERN UNION,L/C
  • Warranty5/10 YEARS
Facebook Twitter Pinterest LinkedIn 分享

Product Description

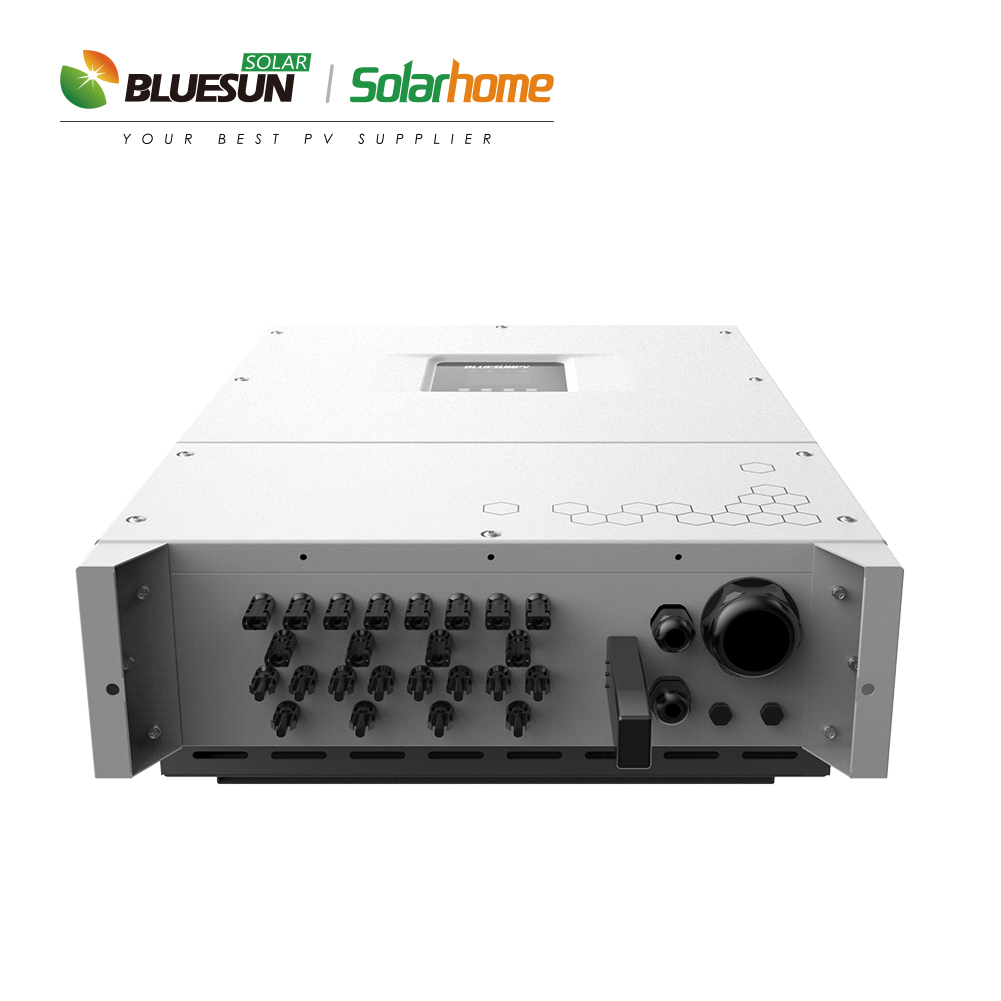

Recommended product: BSMBSM30K/40K/50K/60K-B  This type of inverter is well protected and suitable for outdoor use and is easy to install.



Smart On Grid Inverter







Detailed Images





Technical Parameters


Items BSM30K-B BSM40K-B BSM50K-B BSM60K-B
DC Input
Max. PV input voltage 1100Vdc
Rated PV voltage 600Vdc
Max. PV input current 60A(6x10A) 90A(9x10 A) 120A(12x10A) 120A(12x10A)
No. of MPPTs 2 3 4 4
No.of PV strings per MPPT 3月3日 2003-3-3 3/3/3/3 3/3/3/3
MPPT voltage range 300Vdc~1000Vdc
Starting voltage 250Vdc
AC Output
Rated AC output power 30kW 40kW 50kW 60kW
Max. output power 30kVA 44kVA 55kVA 66kVA
Rated AC output voltage 380/400/415Vac
Rated output current 45.6A 60.8A 75.9A 91.2A
Max. output current 47.6 A 63.5 A 79.4 A 95.3 A
Rated grid frequency 50/60Hz
Grid frequency range 45~55Hz/55~65Hz
Power factor >0.99 full load
Adjustable power factor 0.8 (leading) ~ 0.8 (lagging)
THDi <3% (rated power)
Efficiency
Max. efficiency 98.50% 98.80% 98.80% 98.80%
European efficiency 98.30% 98.30% 98.40% 98.45%
General
Dimensions (W×H×D) 600×860×294mm
Weight 68kg
IP grade IP65
Noise level ≤25 dB
Night power consumption <1W
Cooling type Intelligent forced air cooling
Altitude 4000m (>3000m derating )
Operating temperature -25ºC~+60ºC(>45ºC derating)
Relative humidity 0~95% (Non-condensation)
Display LCD+LED
Communication RS485/WiFi/GPRS(Optional)
DC terminal MC4 Terminal
AC terminal OT Terminal
Installation method Wall-mounted
Standard EN62109-1, EN62109-2, NB/T32004, AS4777.2,EN 61000-6-2, EN 61000-6-4, DIN VDE0126, UTE C15-712-1, VFR2014, ERDF-NOI-RES_13E,
IEC61727, IEC62116
