High Voltage Vertical EE33 Transformer Coil Former

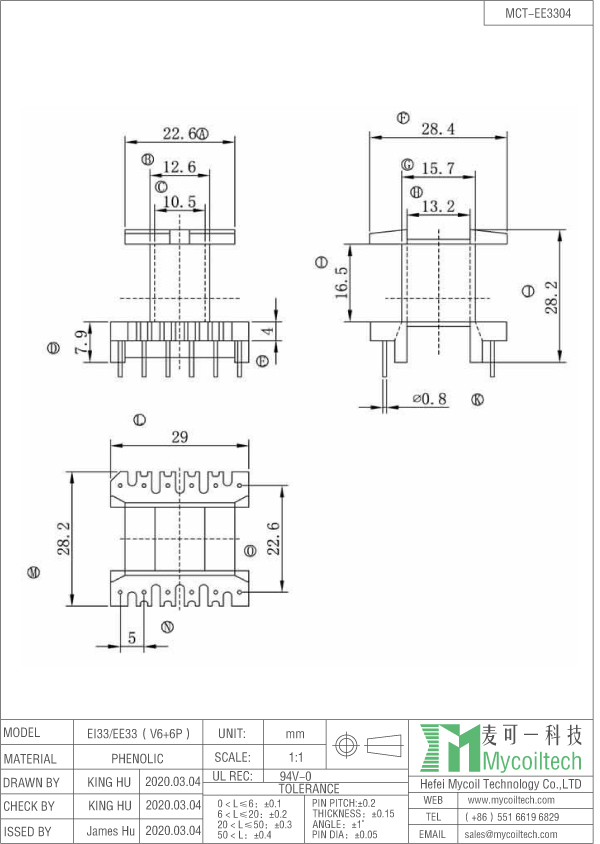

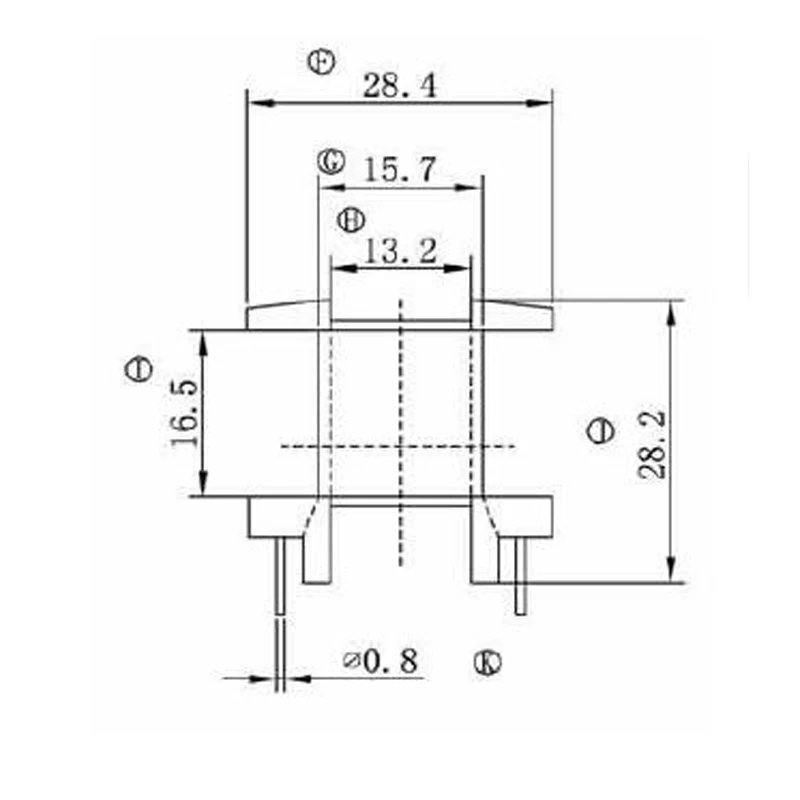

EE33 ferrite core bobbin. 6+6 pin EE33 vertical bobbin. Parallel Distance=22.6mm. Pin pitch=5.0mm. Bobbin size=29.0mmX28.2mmX28.2mm. EE series ferrite cores widely used in power transformers and low signal applications, welcome customized transformer and inductors.



6+6 pin vertical EE33 coil former, EE33 transformer phenolic material bobbin, we supply matched EE soft ferrite cores.


Product Specification

EE33 transformer bobbin factory


Welcome customized transformers:

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily
