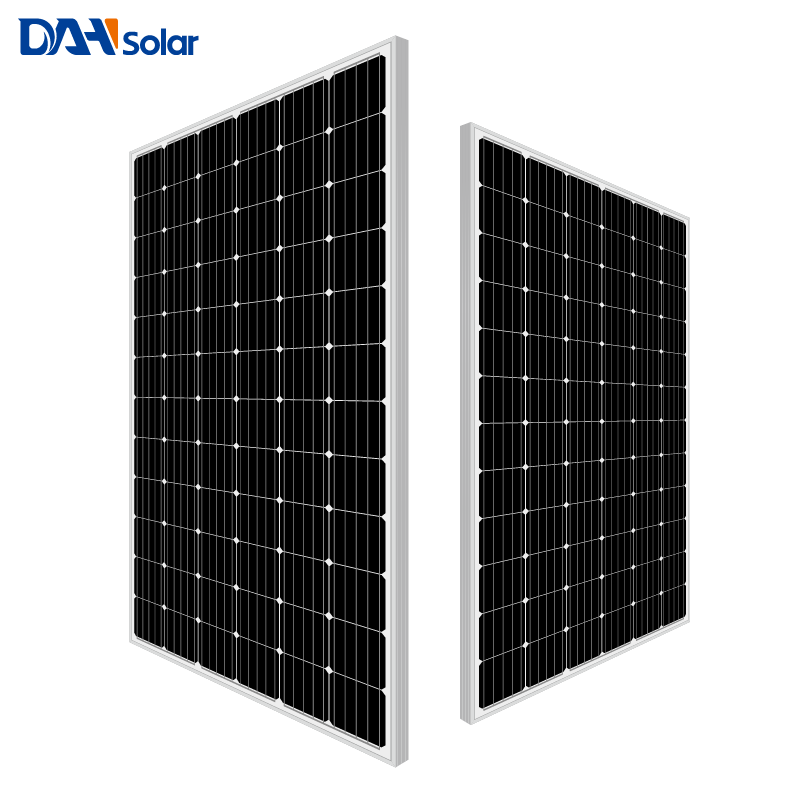

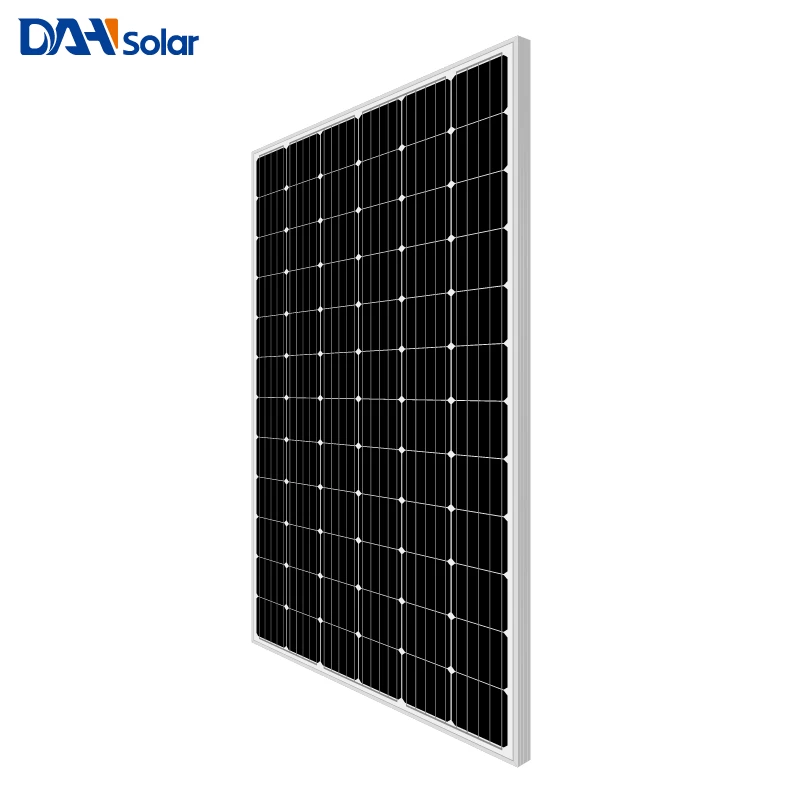

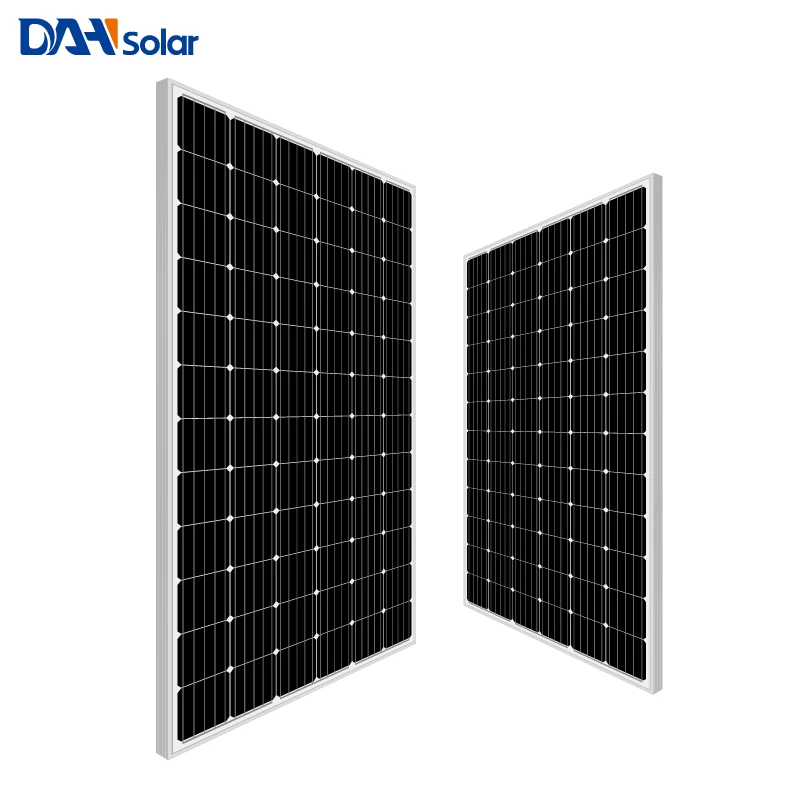

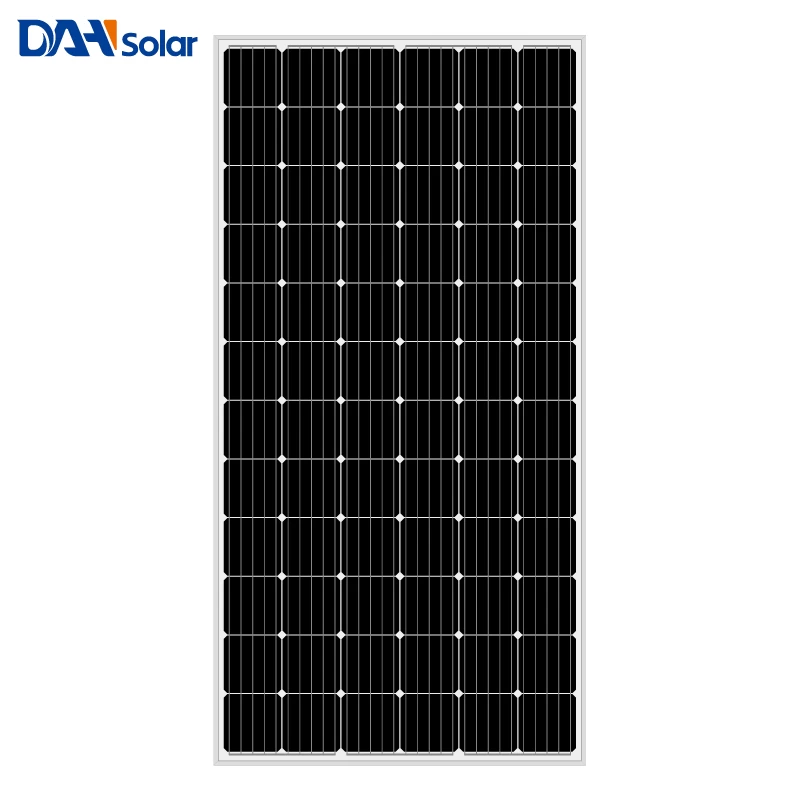

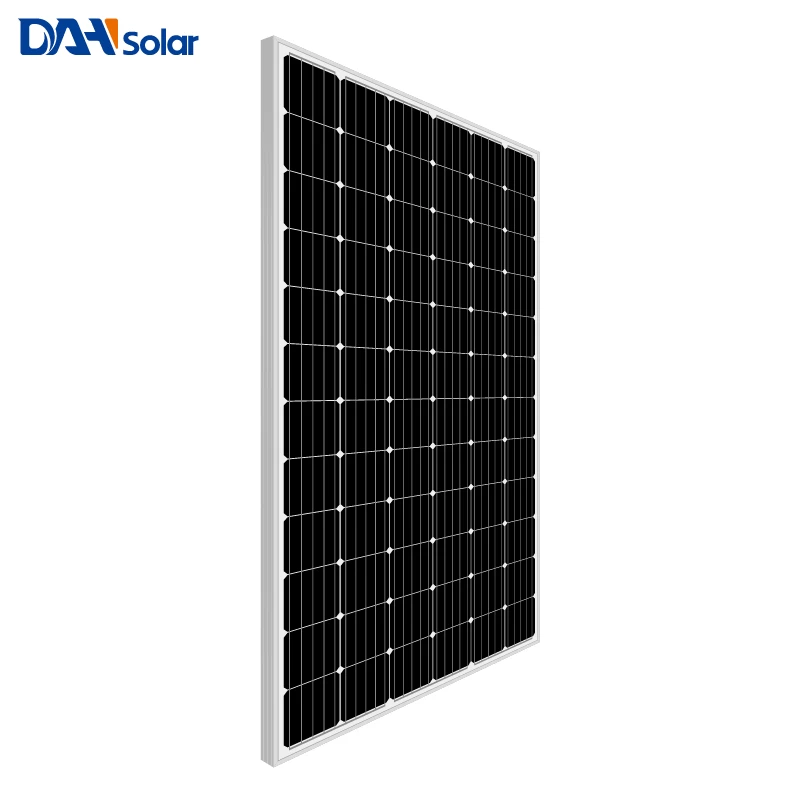

High-Efficient Mono Crystalline Panel 72 cells 345w/350w/355w/360w/365w Intergrated with PERC Technology use for all type solar application system
Electrical Characteristics (STC)
|
Module Type
|
DHM72-345
|
DHM72-350
|
DHM72-355
|
DHM72-360
|
DHM72-365
|
|
Maximum Power (Pmax)
|
345W
|
350W
|
355W
|
360W
|
365W
|
|
Open-circuit Voltage (Voc)
|
46.7V
|
46.9V
|
47.0V
|
47.2V
|
47.4V
|
|
Maximum Power Voltage (Vmp)
|
38.4V
|
38.5V
|
38.7V
|
38.9V
|
39.1V
|
|
Short-circuit Current (Isc)
|
9.50A
|
9.60A
|
9.69A
|
9.76A
|
9.82A
|
|
Maximum Power Current (Imp)
|
8.99A
|
9.09A
|
9.17A
|
9.26A
|
9.34A
|
|
Module Efficiency(%)
|
17.80%
|
18.06%
|
18.31%
|
18.57%
|
18.83
|
|
Power Tolerance
|
0~+5W
|
|
Standard Test Environment
|
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
|
72cells Packing Details
|
Container
|
20GP
|
40GP
|
40HC
|
|
pcs/pallet
|
27
|
27
|
27
|
|
pallet/container
|
10
|
24
|
24
|
|
pcs/container
|
270
|
648
|
696
|
First-class solar panel warranty Reliable quality
1.10 years material & technology guarantee
2. 25 years linear power output guarantee
3. 100% Double full EL inspection
4. 0-+5W Positive power output guarantee
Product Characteristics
· Excellent PID free performance.
· 5 busbar solar cell adopts new technology to improve the efficiency of Mono solar panel , offers a better aesthetic appearance, making it perfect for solar power system rooftop installation.
· Higher solar panel conversion efficiency(up to 18.83%) benefit from Passivated Emmiter Rear Contact (PERC) technology.
· Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
· Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
· Certified anti Salt-mist,anti ammonia corrosion performance,sand and storm test by TUV Rheinland and TUV Nord.
