Overview

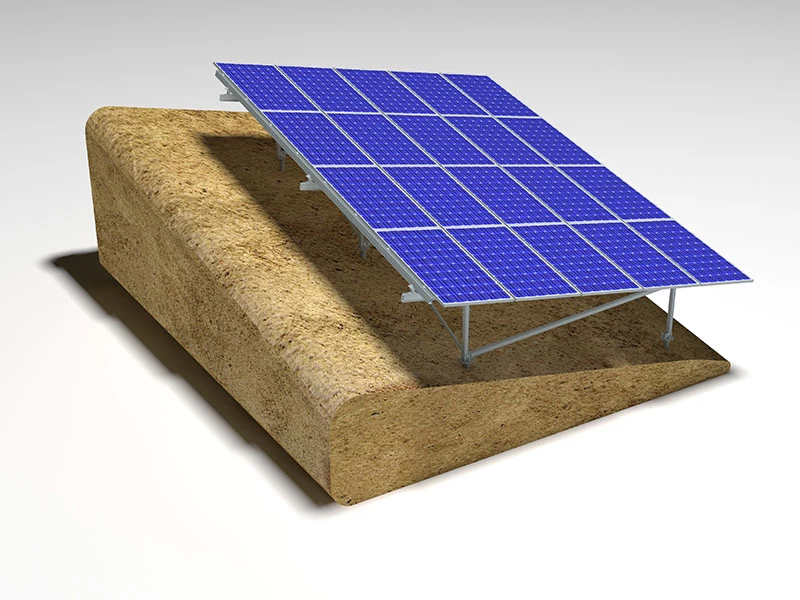

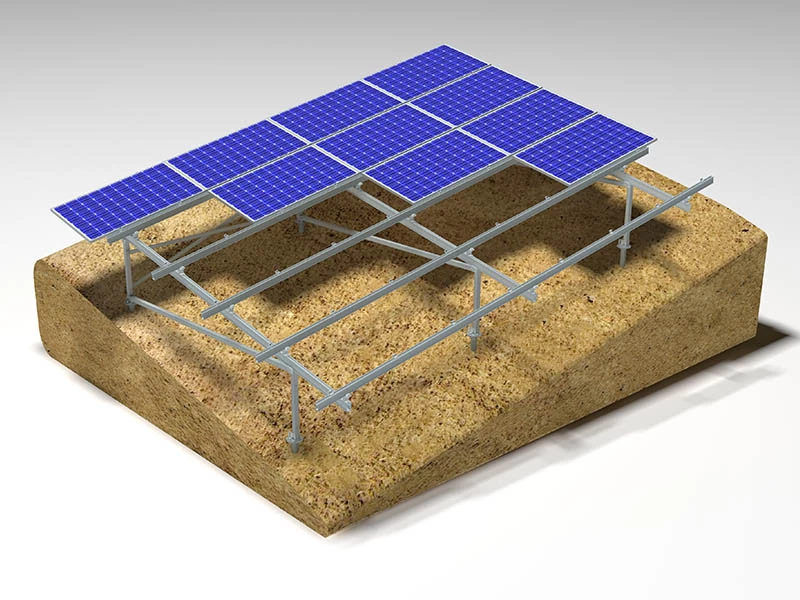

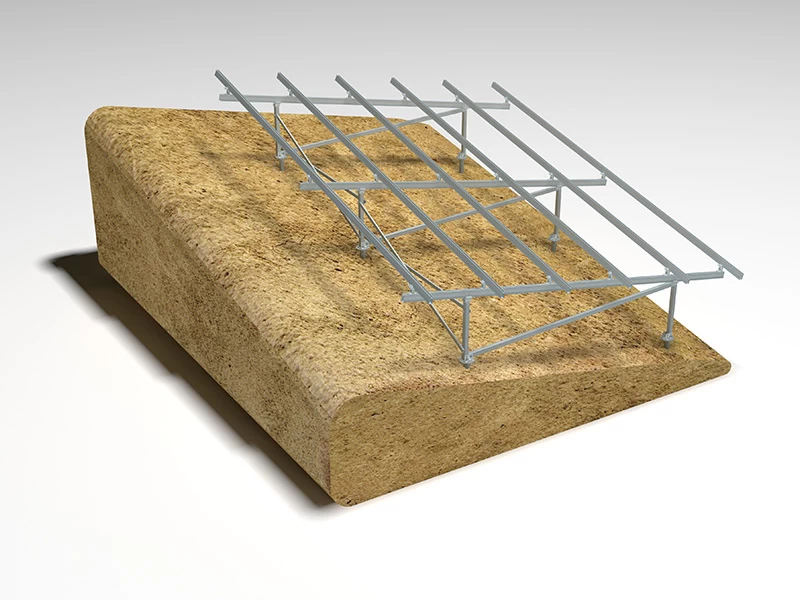

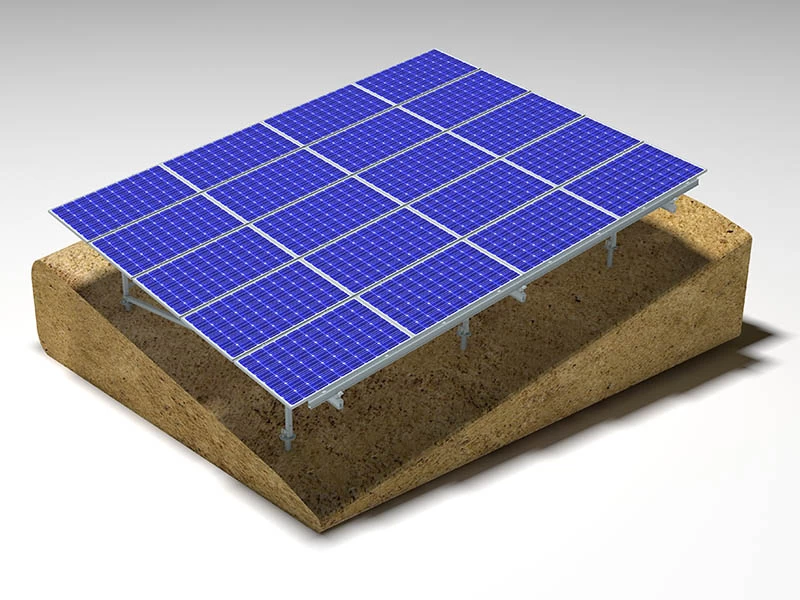

MRac Hillside Ground Terrace is suitable for slope concrete roof or
slope land solar PV projects, with strong wind load and snow load
resistance. The system can achieve minor adjustment onsite with
special design of Anchor Plate to adapt to different sites. The
system can be adjusted from east-west and south-north direction
with special connector design. Patented and certified system design
ensure projects safety and quick installation.
Features
1.Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost
2.No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam
onto the post by special designed clamps, with force at the
same direction of the gravity
3.Flexibility and Adjustability
The structure can be adjusted from east-west and south-north
with special connector and with some tolerance with east-west,
west-south and south-north directions, assuring flexible on-site
installation to achieve best yield for solar modules.
4.Foundations Match
Suitable for ground screw piles, concrete foundation and steel
foundation.
|
Technical Parameter
|
|
Installation Site
|
Slope concrete roof, Slope Ground
|
|
Foundation
|
Concrete Base, Ground Screw
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Steel Q235B(Hot-Dip Galvanized)
|
|
Fastener
|
SUS304 &Hot-Dip Galvanized &Zinc-Nickel Alloy Electroplated Stee
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
