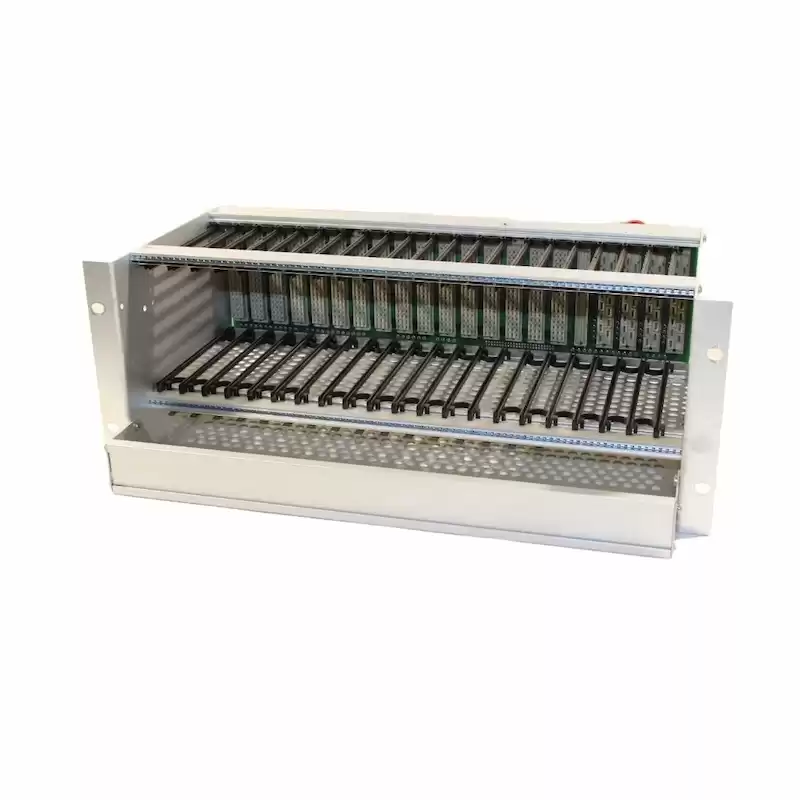

Hima B9302 I/O Slot Rack

B9302 - I/O Slot Rack is available in stock and ready for ship.The HIMA B9302 is a 16-slot rack that can be used with a variety of HIMA modules, including inverters and I/O modules.







Assembly kit B 9302-0,5 (-1, -X)



I/O-rack 4 units high





Parts of the assembly kit B 9302:

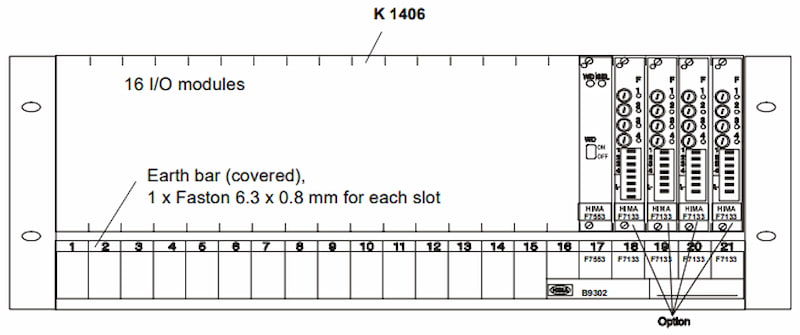

• 1 x F K 1406 I/O rack, 4 units high, 19 inch, with integrated cable tray, with a hinged receptable for the lable



• 1 x F 7553 Coupling module (in slot 17)



• 1 x BV 7032 flat cable, length is dependent on the order. Standards are B 9302-0,5 (with 0.5 m cable) and B 9302-1 (with 1 m cable). Assembly kit with choosable cable length B 9302-X. Total bus length is maximum of 30 m.

The slots 1 through 16 of the rack K 1406 are reserved for I/O modules.





Modules for option (separate order):



• 1 ... 4 x F 7133 4-fold power distribution with fuses (slots 18 ... 21) to fuse and distribute L+ (EL+) and L-.



The fuse monitoring on the current distribution modules are internally switched in series. A corresponding fault signal is served via a neutral contact. The fault contact of a not installed current distribution module is bypassed by a jumper.



Technical Specifications

Manufacturer Hima
Part Number B9302
Ordering Information B9302
Product Catalog H51q system
Description I/O Slot Rack
Voltage 24 Vdc
Current 5A
Dimension 47.8 cm x 30.5 cm x 17.8 cm
Weight 3 kg
