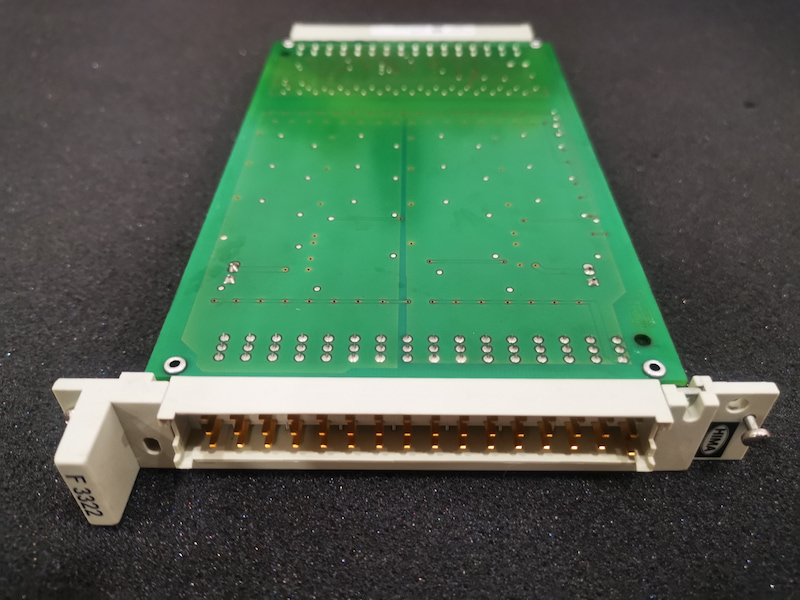

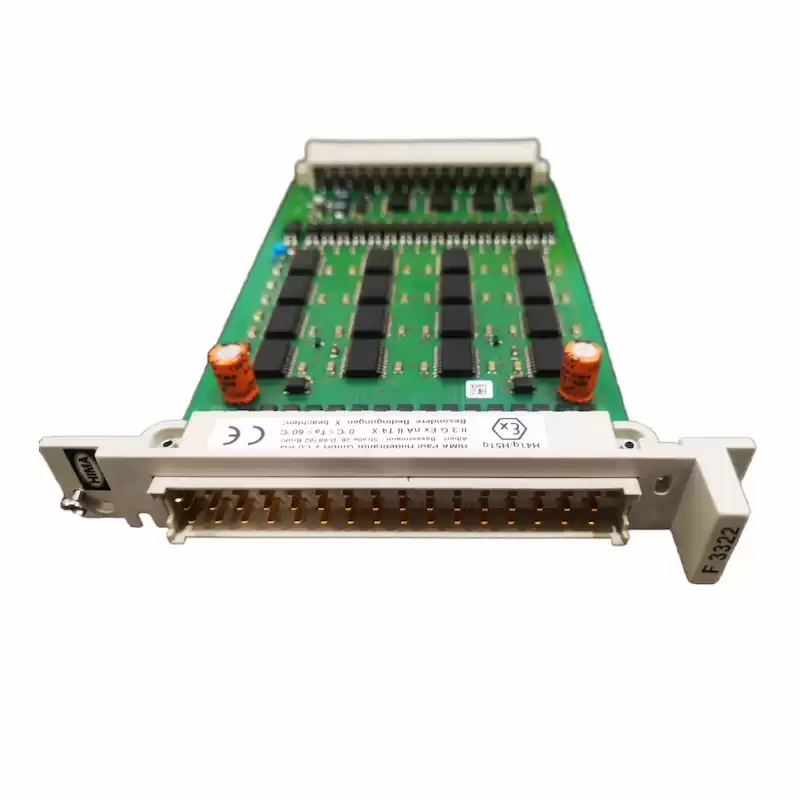

Hima F3322 16-Channel Fold Output Module

The HIMA F3322 is a digital output module used in industrial automation systems. It is part of the HIMA HIMatrix series, which includes various input and output modules for different applications.



F 3322 16 fold output module



resistive load or inductive load up to 500 mA (12 W),lamp connection up to 12 W, with safety isolation no output signal with break of the L- supply.



Planning hint



Only max. 10 output modules with nominal load may be used in one IOsubrack and not more than half of the possible output load of 16 x 0.5 A =8 A may be switched on at the same time. The standard fusing of the modules in the IO rack is 4 A slow.





Outputs                                           k short circuit proof

Response value for

 current limiter                                > 550 mA

Space requirements                        4 TE

Operating data                                5 V DC: 110 mA

                                                        24 V DC: 150 mA in addition load



All output modules have the following special features:



· To increase the availability the outputs of the safety related output modules can be switched in parallel without external diodes.



· No output voltage occurs when the supply voltage L- should be cut on the output module, so it is not necessary to wire the L- as a ring feeder.



· The connection of inductive loads can be done without using diodes at the coil. However it is recommended to connect a diode directly at the inductive load avoiding noise voltages.



· The LED signal ling the output status is controlled separately.



· The design of the cable plugs enables the two pole connection of the actuators. Together with a two pole supply of the output module an earth fault detection will be simplified.



· No time limit for operation in case of a defective output module.



Hima F3322



Technical Specifications

Manufacturer Hima
Part Number F 3322
Ordering Information F 3322
Product Catalog H41q/H51q systems
Description 16-Channel Fold Output Module
Voltage 5 V
Current 0.5 A
Dimension 20.3 cm x 12.7 cm x 2.5 cm
Weight 0.2 kg





100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com




Product Tags hima f3322          F3322          F3322 Digital Output Module          16-Channel Fold Output Module
