About product:
|

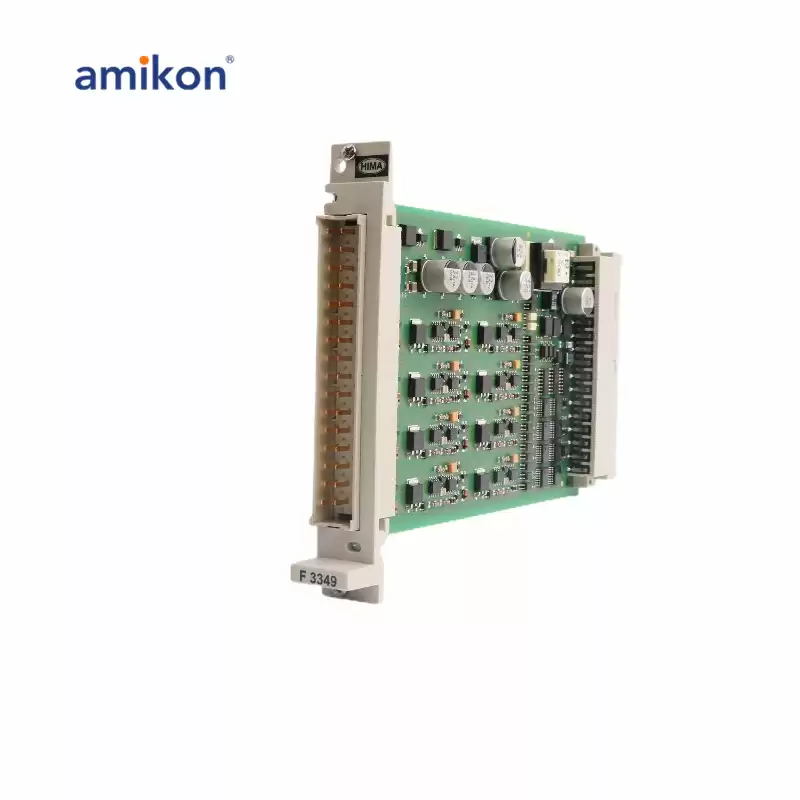

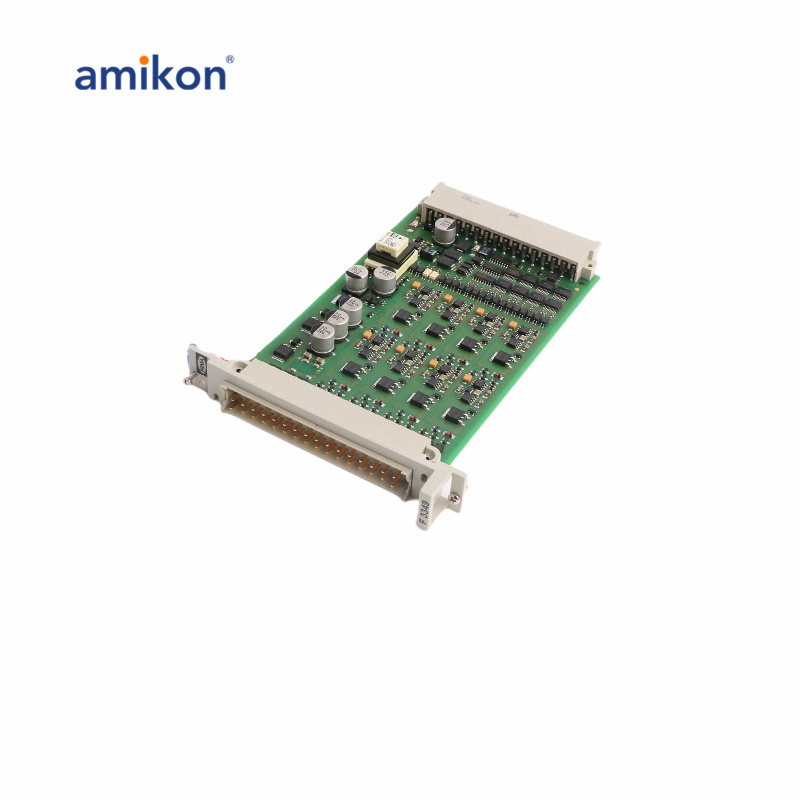

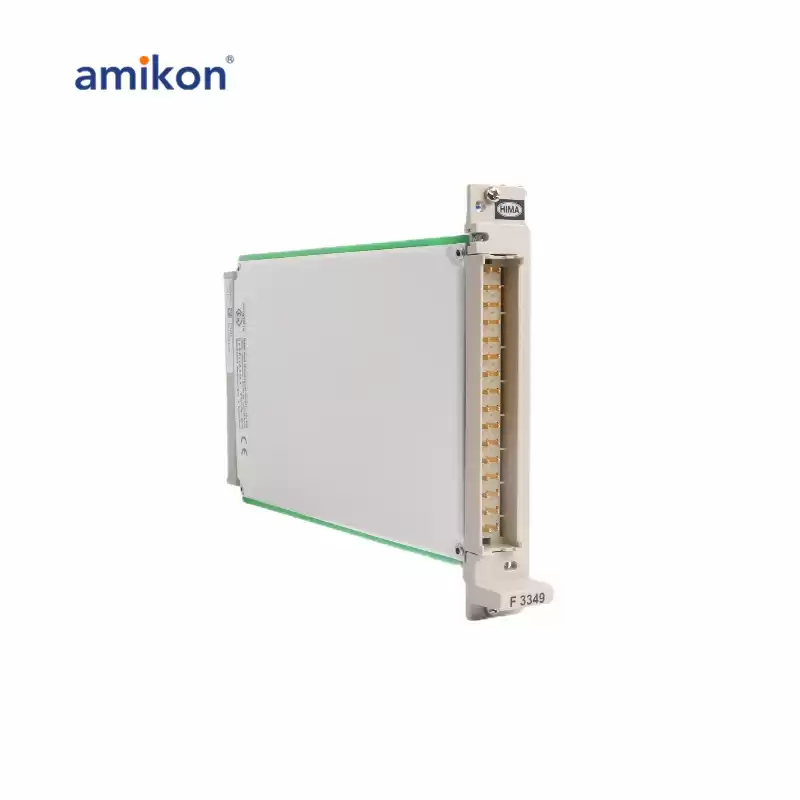

F3349 is a Digital I/O module producted by HIMA. The block diagrams in the data sheets always show the direction of signal flow from top to bottom. For input modules the input signal (from sensor, proximity switch etc.) is lead via the cable connector and input module to the I/O bus or in the mechanical principle from the front to the rear side of the I/O subrack
|
|
F 3349 Describe
|
For output modules the result of the logic operation in the user program is connected from the I/O bus to the output amplifier via the cable connector to the actuator (relay, solenoid valve etc.
|
|
The mechanical principle is from the rear to the front side of the I/O subrack.
|
|
In the block diagrams the 5 V and 24 V operating voltages connections are shown.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
FAQ:
1. How many digital outputs does the F3349 module support?
The F3349 module supports up to 16 digital outputs, depending on the configuration of the system and the specific requirements of the application.
2. What are the typical output signals for the F3349?
The F3349 module handles binary output signals, meaning it can switch on/off control devices like solenoids, relays, motors, and alarms. The output signals can be configured to support either 24 V DC or 115 V AC, depending on system requirements.
