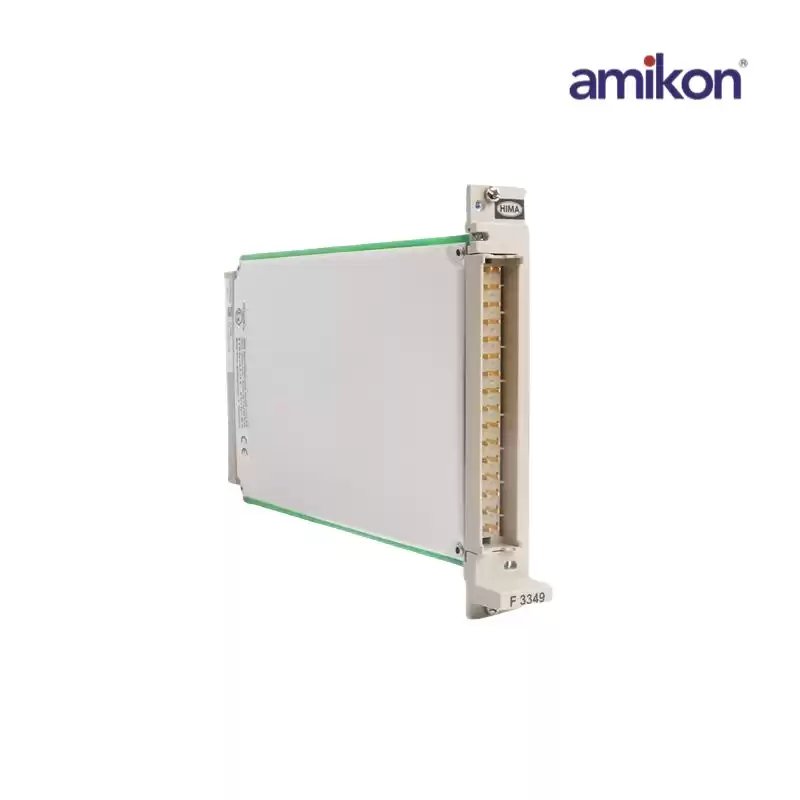

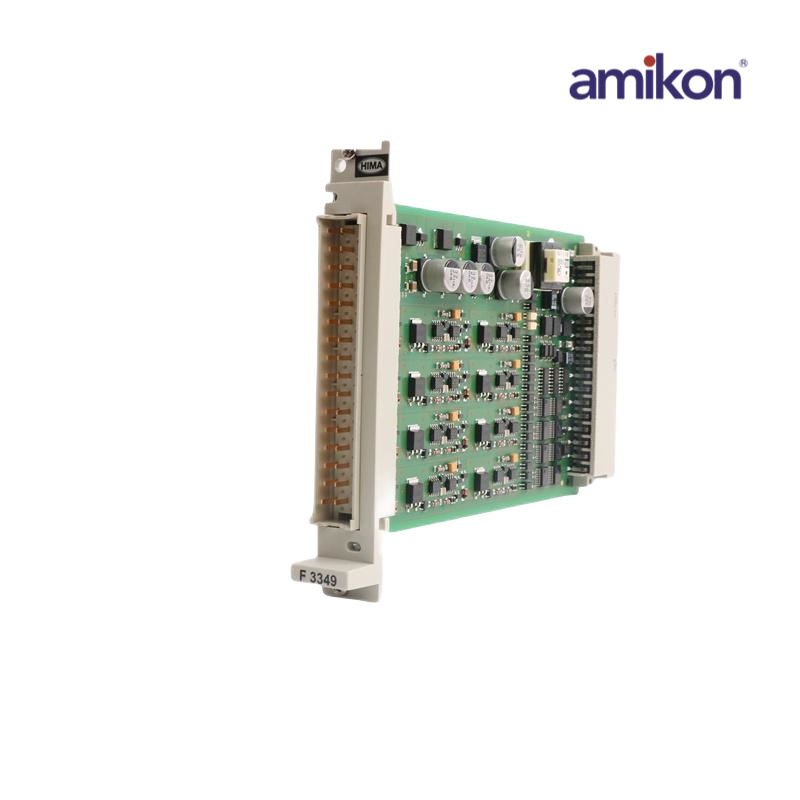

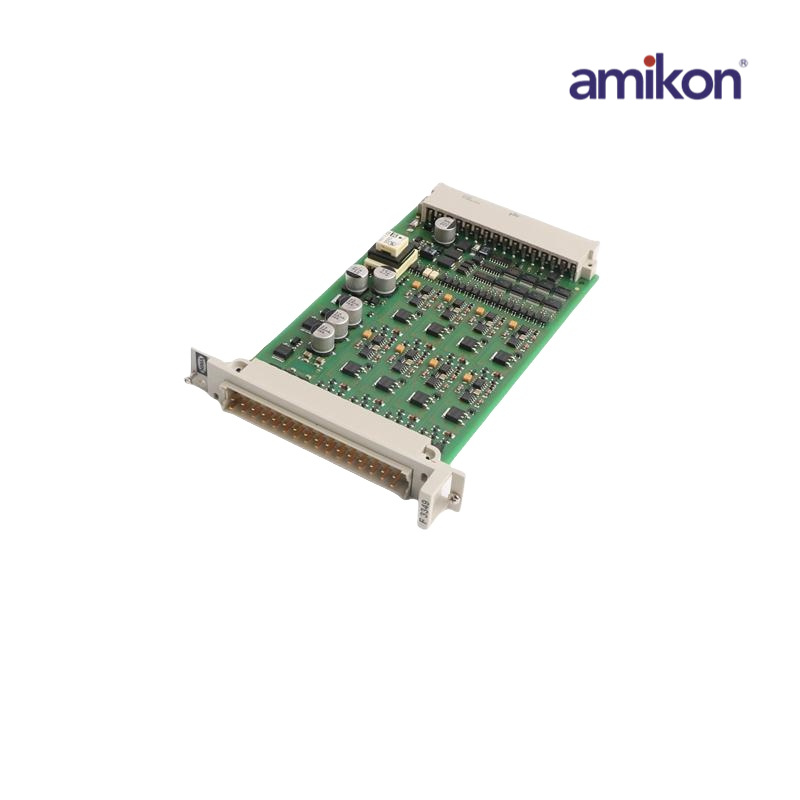

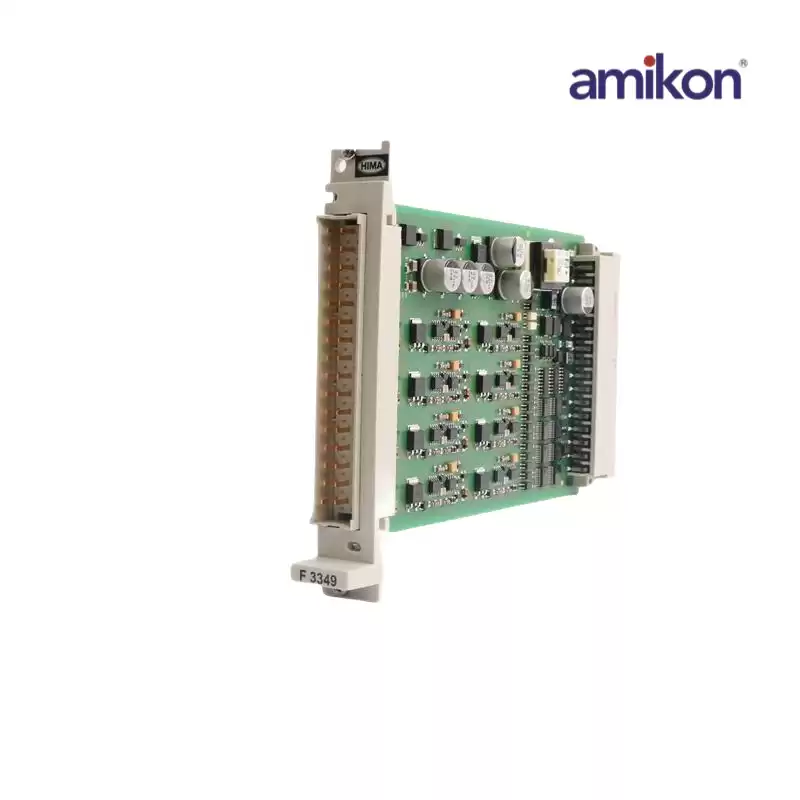

Hima F3349 Digital I/O Module

Dimensions ：4cmx18.5cmx12.8cm

Weight: 0.32KG

Umgebungsklima：25-+75 °C

Output voltage：24V DC

Full Description:Output  floating NO contactRelay data: cf. reverse Switching  timeapprox.8 ms  Reset timeapprox.6 ms

Hima F3349 Digital I/O Module

F3349 is a Digital I/O module producted by HIMA. The block diagrams in the data sheets always show the direction of signal flow from top to bottom. For input modules the input signal (from sensor, proximity switch etc.) is lead via the cable connector and input module to the I/O bus or in the mechanical principle from the front to the rear side of the I/O subrack.

For output modules the result of the logic operation in the user program is connected from the I/O bus to the output amplifier via the cable connector to the actuator (relay, solenoid valve etc.). The mechanical principle is from the rear to the front side of the I/O subrack. In the block diagrams the 5 V and 24 V operating voltages connections are shown.
