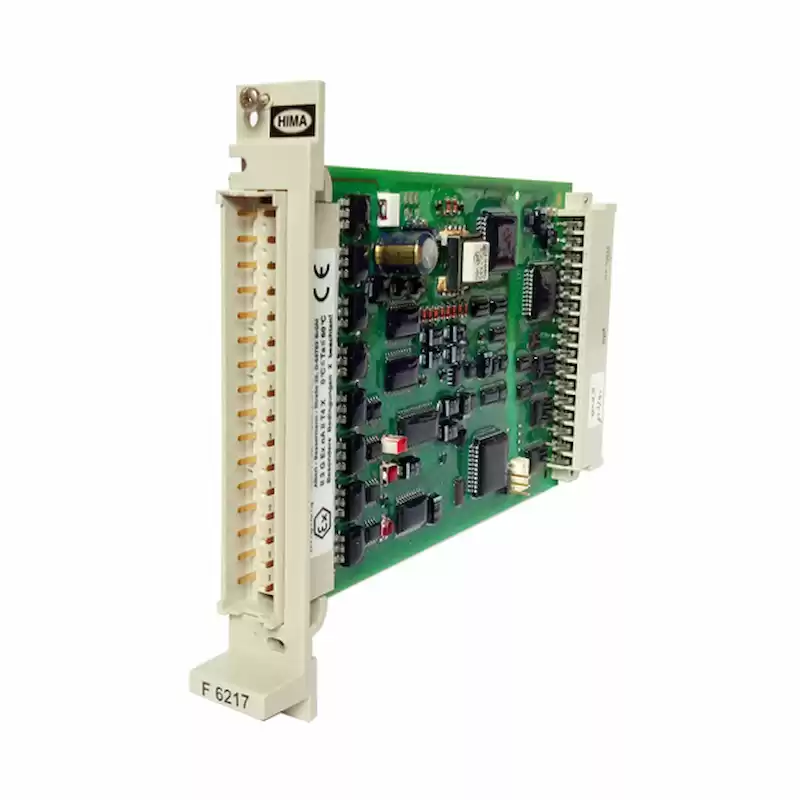

F 6217: 8 fold analog input module, safety related
for current inputs 0/4...20 mA, voltage inputs 0...5/10 V,
with safety isolation
resolution 12 bits
tested according to AK6/SIL3
| Input voltage |
0...5.5 V |
| max. input voltage |
7.5 V |
| Input current |
0...22 mA (via shunt) |
| max. input current |
30 mA |
| R*: Shunt with |
250 Ohm; 0.05 %; 0.25 W; |
| current input |
T<10 ppm/K; part-no: 00 0710251 |
|
Resolution
|
12 bit, 0 mV = 0
5.5 V = 4095
|
| Measurand up date |
50 ms |
| Safety time |
< 450 ms |
| Input resistance |
100 kOhm |
| Time const. inp. filter |
appr. 10 ms |
| Basic error |
0.1 % at 25 °C |
| Operating error |
0.3 % at 0...+60 °C |
| Error limit related |
|
| on safety |
1 % |
| Electric strength |
200 V against GND |
| Space requirement |
4 TE |
| Operating data |
5 V DC: 80 mA, 24 V DC: 50 mA |

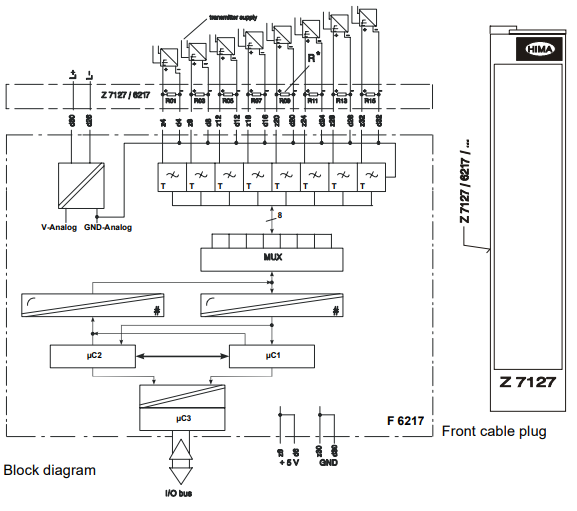

The module contains a redundant, safety related processor system. Because of this, all the tests are executed directly on the module. The main test routines are:
· Linearity of the AD converters
· Cross talking between the 8 input channels
· Function of the input filters
· Function of the IO bus communication
· Self tests of the microcontrollers
· Tests of the memories
