Mfr. Part Number:
|
F6705
|
|
Manufacturer
|
HIMA
|
|
Description:
|

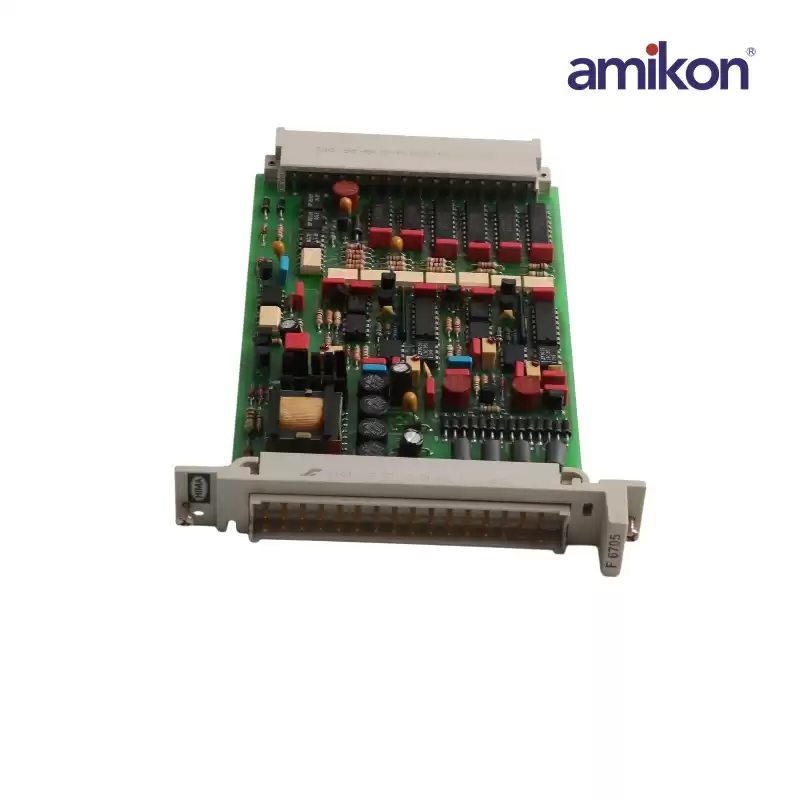

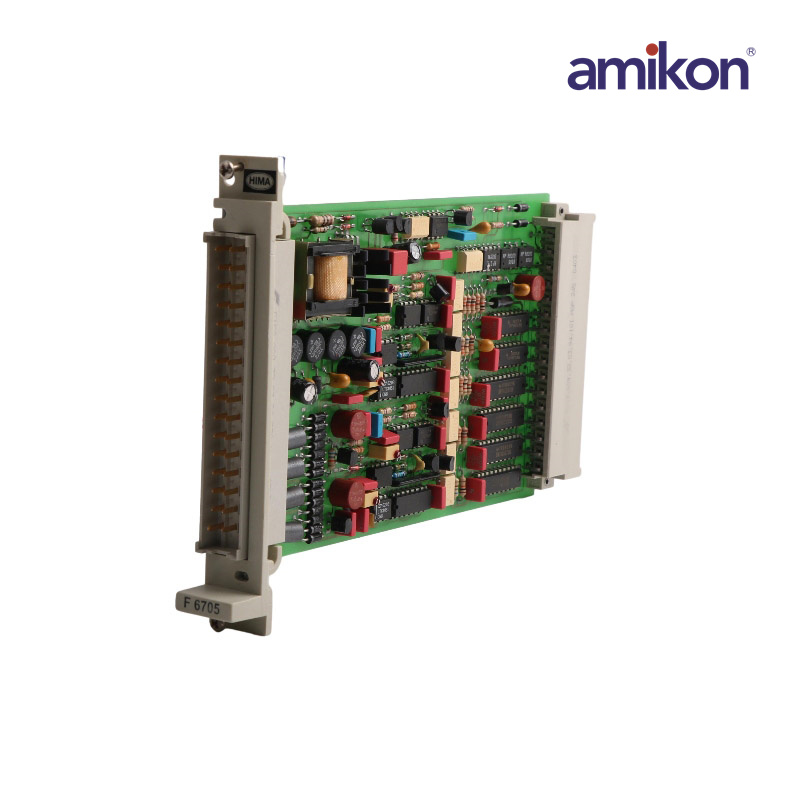

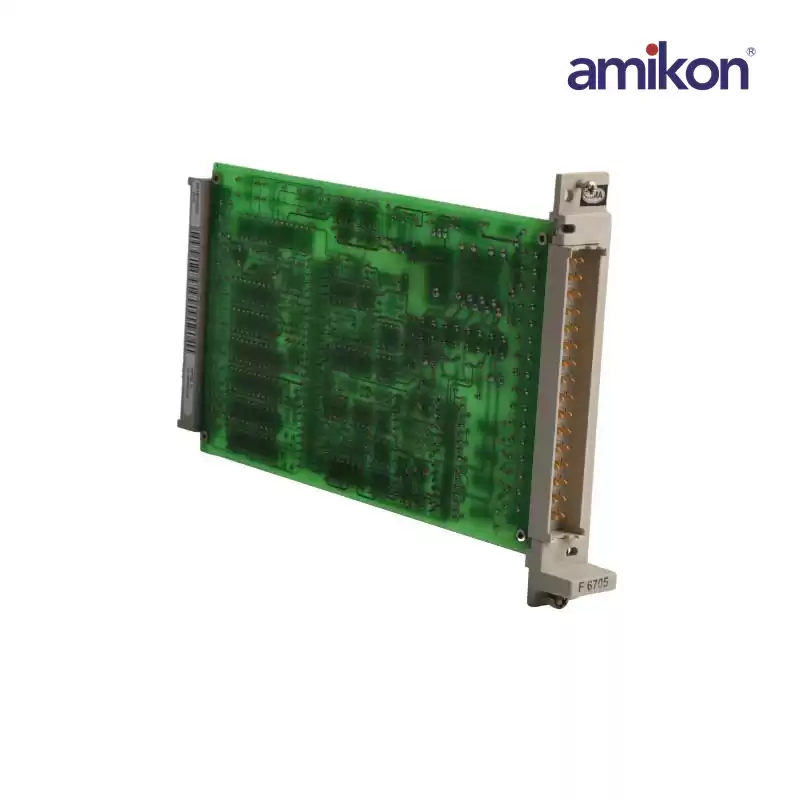

HIMA F6705 2-fold Converter Digital/Analog Module
|
|
Status:
|
In stock ready for shipment
|
|
The module is automatically fully tested during operation. The main testroutines are:– Linerarity of the DA-converter– Cross-talk between the outputs– safety shut downResolution 12 bits (4095 steps)0 = 0 mA, 3840 = 20 mABurden RB source mode ≤ 550 Ohm incl. line resistance to the burden sink mode ≤ (UQ - 10 V) / 21.2 mAUQ = source voltageBasic error ≤ 0.2 % (40 µA) at 25 °COperating error ≤ 0.4 % at 0...+60 °CLine length max. 1000 m (watch for burden)Electric strength 250 V against Analog-GNDBasic status with plug-in I ≤ 40 µASource voltage UQ (sink mode) 10 ... 30 VSpace requirement 4 TEOperating data 5 V DC: 85 mA, 24 V DC: 130 mA
|
|
|
|
|
|
|
|
|
|
