Products Detail:
|

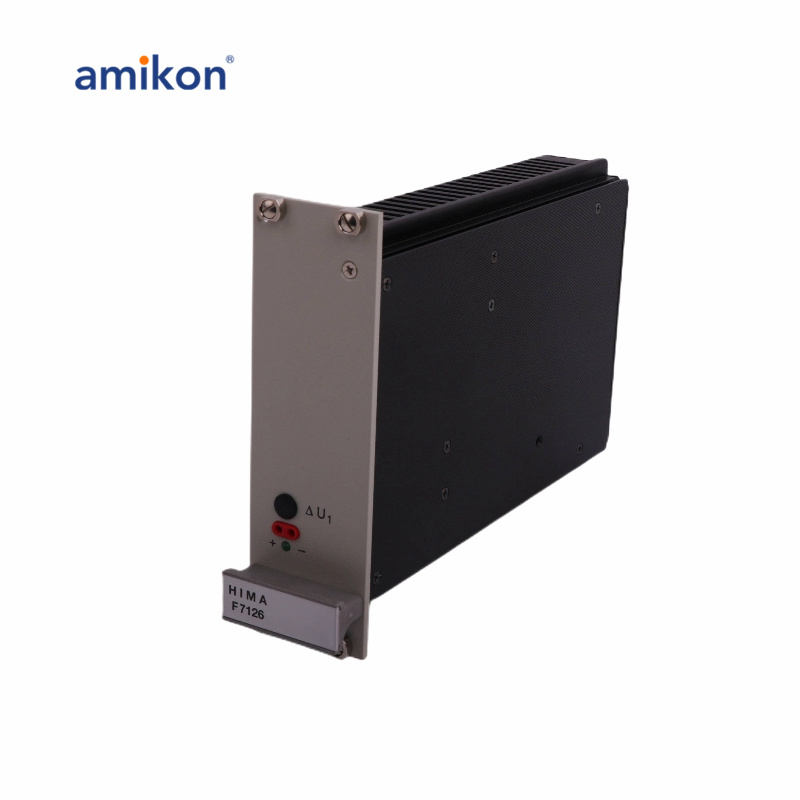

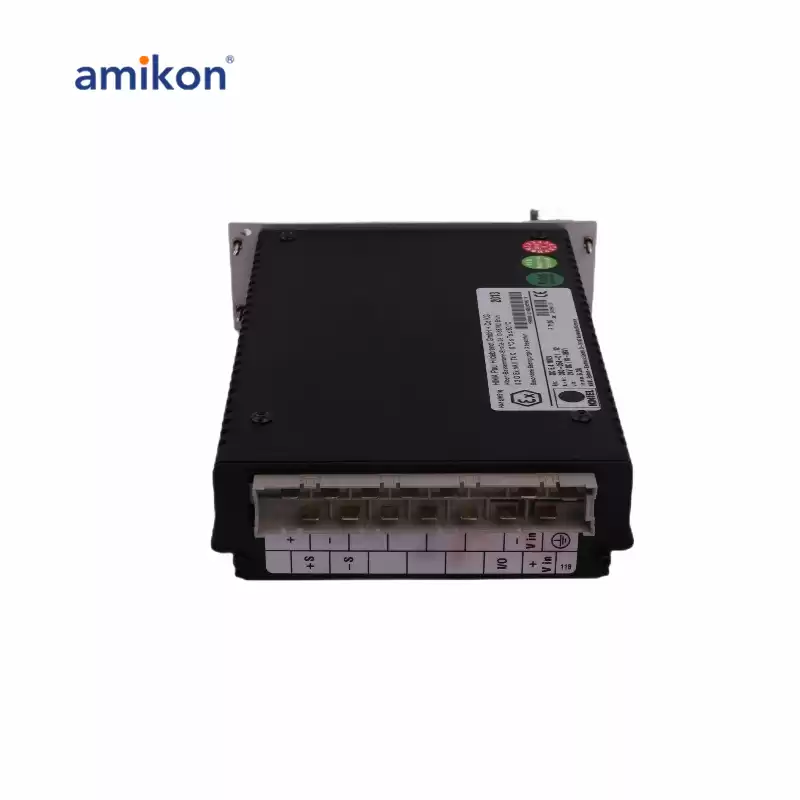

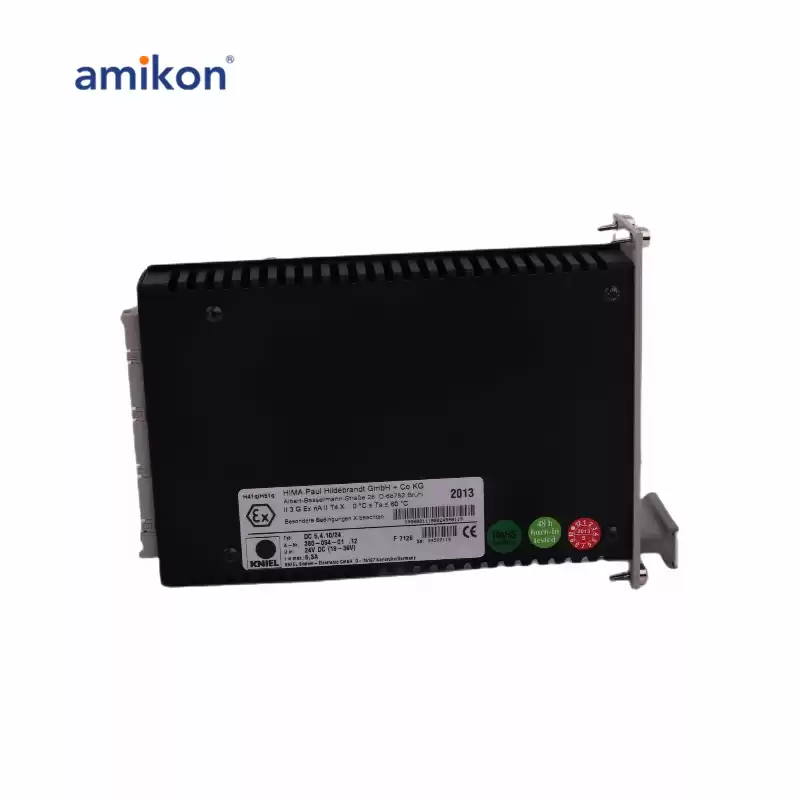

F7126 is a Power Supply Module manufactured by HIMA. F 7126: Power supply module Input voltage 24 V DC, output voltage 5 V DC for PES H51q.
|
|
F7126 Data sheet
|
The module supplies automation systems with 5 V DC from a main supply of 24 V DC.
|
|
It is a DC/DC converter with safe isolation between input and output voltage.
|
|
The module is equipped with overvoltage protection and current limitation.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
The module supplies automation systems with 5 V DC from a main supply of 24 V DC. It is a DC/DC converter with safe isolation between input and
output voltage. The module is equipped with overvoltage protection and current limitation. The output is short circuit proof.
On the front plate there are a test socket and a potentiometer for adjustingthe output voltage.To avoid unbalanced load with redundant use of the power supply F 7126 the difference between their output voltages may not be more than 0.025 V.
FAQ:
1. What is the power supply requirement for the F7126 module?
The F7126 module requires a 24 V DC power supply with a nominal voltage range of 20.4 V DC to 28.8 V DC. It is designed to have low power consumption, making it energy-efficient for integration into large-scale automation systems.
2. What is the operating temperature range of the F7126 module?
The F7126 module operates in an ambient temperature range of 0°C to 60°C, making it suitable for a wide range of industrial environments. For storage, the module can be kept in temperatures ranging from -40°C to +85°C. These temperature ranges ensure the F7126 can handle harsh conditions while maintaining optimal performance.
3. How is the F7126 module mounted?
The F7126 module is designed to be mounted in a 19-inch rack or control cabinet. It is essential to install the module in a vertical orientation for optimal performance. The module’s compact design allows it to be integrated into existing systems without requiring significant changes to the control cabinet or infrastructure.
