Mfr. Part Number:
|
F7130
|
|
Manufacturer
|
HIMA
|
|
Description:
|

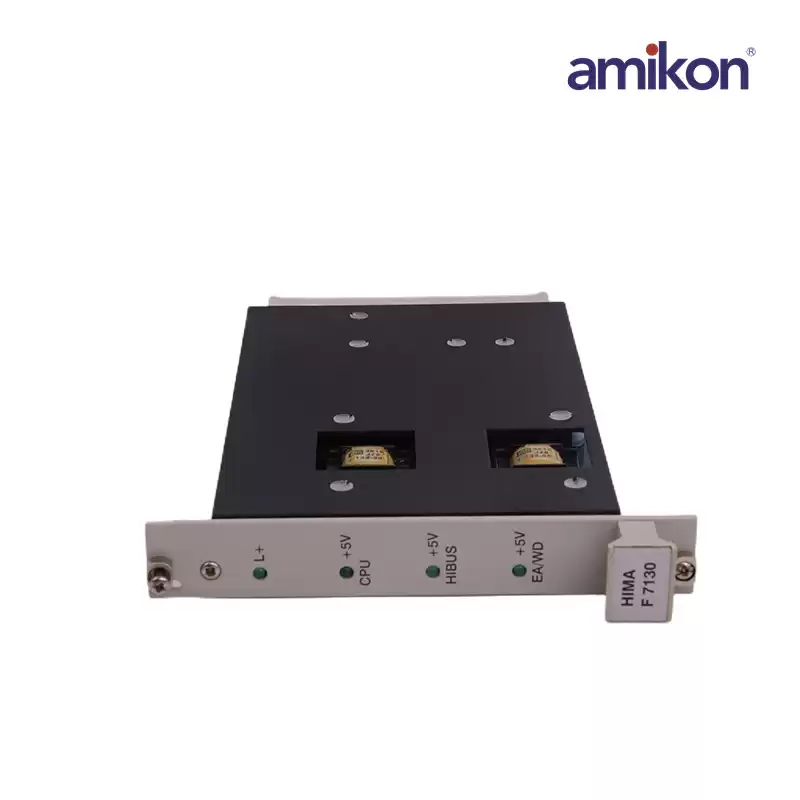

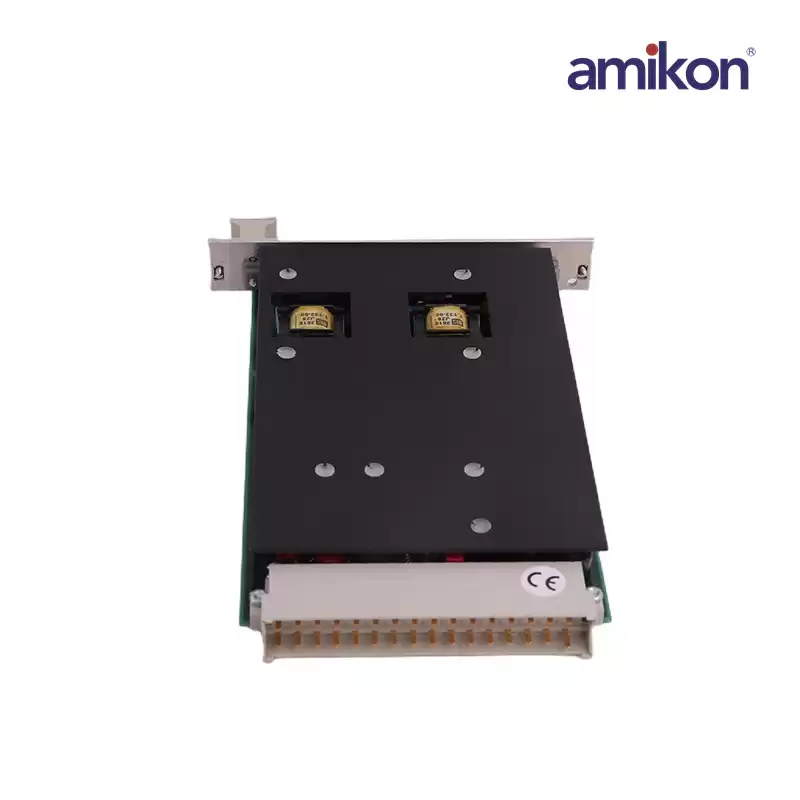

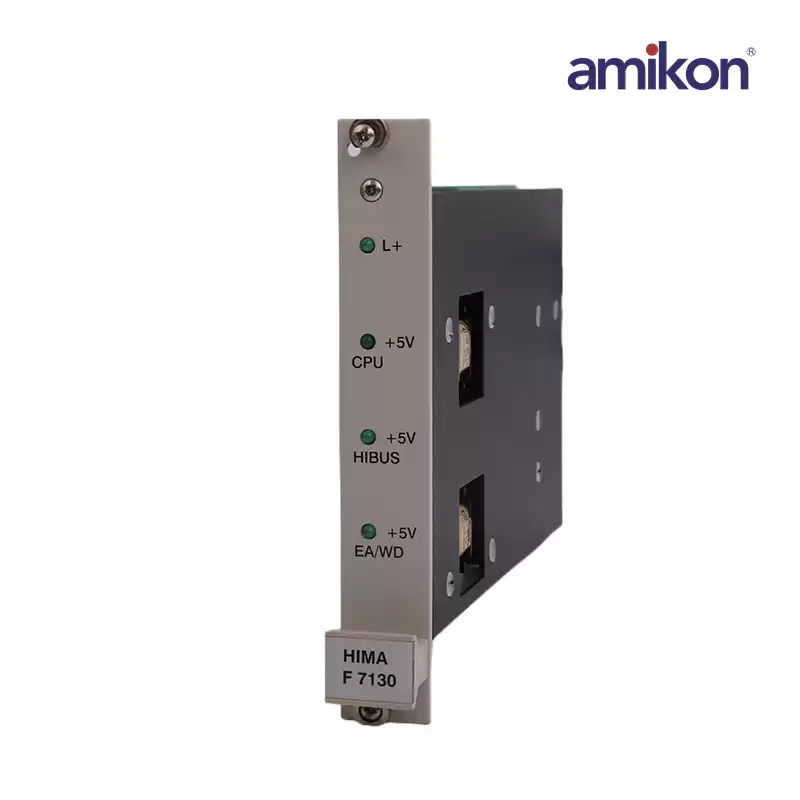

HIMA F7130 Power Distribution Module
|
|
Status:
|
In stock ready for shipment
|
|
The module supplies PES H41q with 5 VDC from a main supply of 24 VDC. It is a DC/DC converter with electrical isolation between input and output voltage. The module is equipped withovervoltage protection and current limitation. The outputs are short-circuit proof. The supplyconnections are separated for the central device/IO modules and HIBUS interface.The present input voltage (L+) and the output voltages are indicated with LEDs on the frontplate. A proper operation of the module is still assured if the LED 5 V CPU/EA illuminates onlyslightly.The power supply for the monitoring of the central device is fed separately via pin z16 (NG).Operating data 24 VDC, -15...+20 %, rpp < 15 %Primary fuse 5 A gLOutputs for central device/IO-modules 5 VDC, ± 0.25 V / 10 A HIBUS 5 VDC, ± 0.25 V / 1 AEfficiency rate ≥ 70 %Space requirement 4 SU
|
|
|
|
|
|
|
|
|
|
