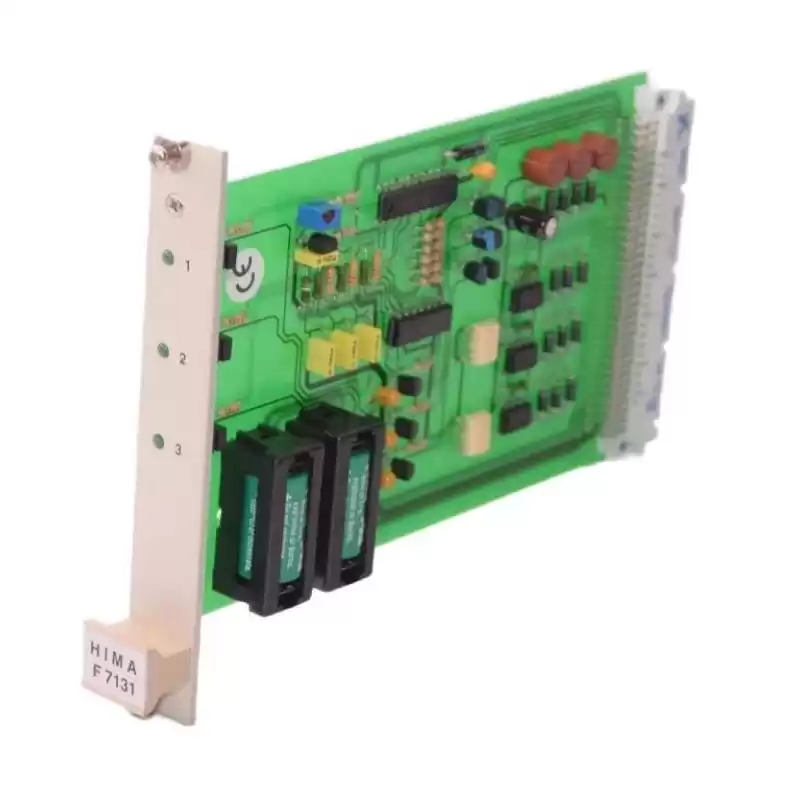

Hima F7131 Power Supply Monitoring

The F7131 is a power supply monitoring module with buffer batteries made by HIMA. It's used to monitor the health and stability of a power supply system.





F 7131: Power supply monitoring with buffer batteries  for PES H51q

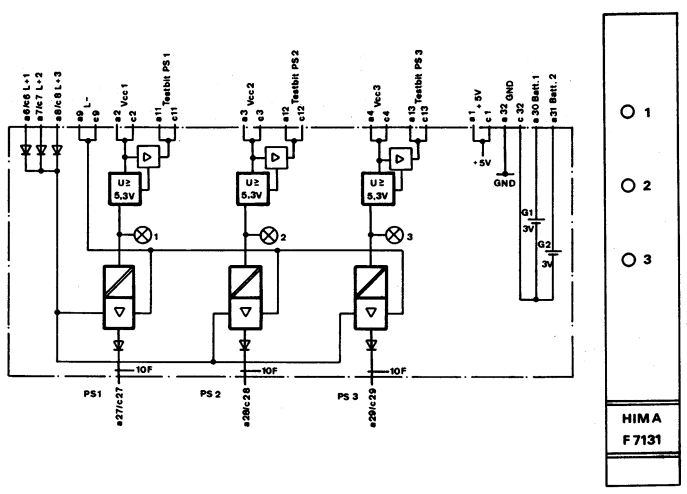

The module F 7131 monitors the system voltage 5 V generated by the 3 power supplies max. as follows:

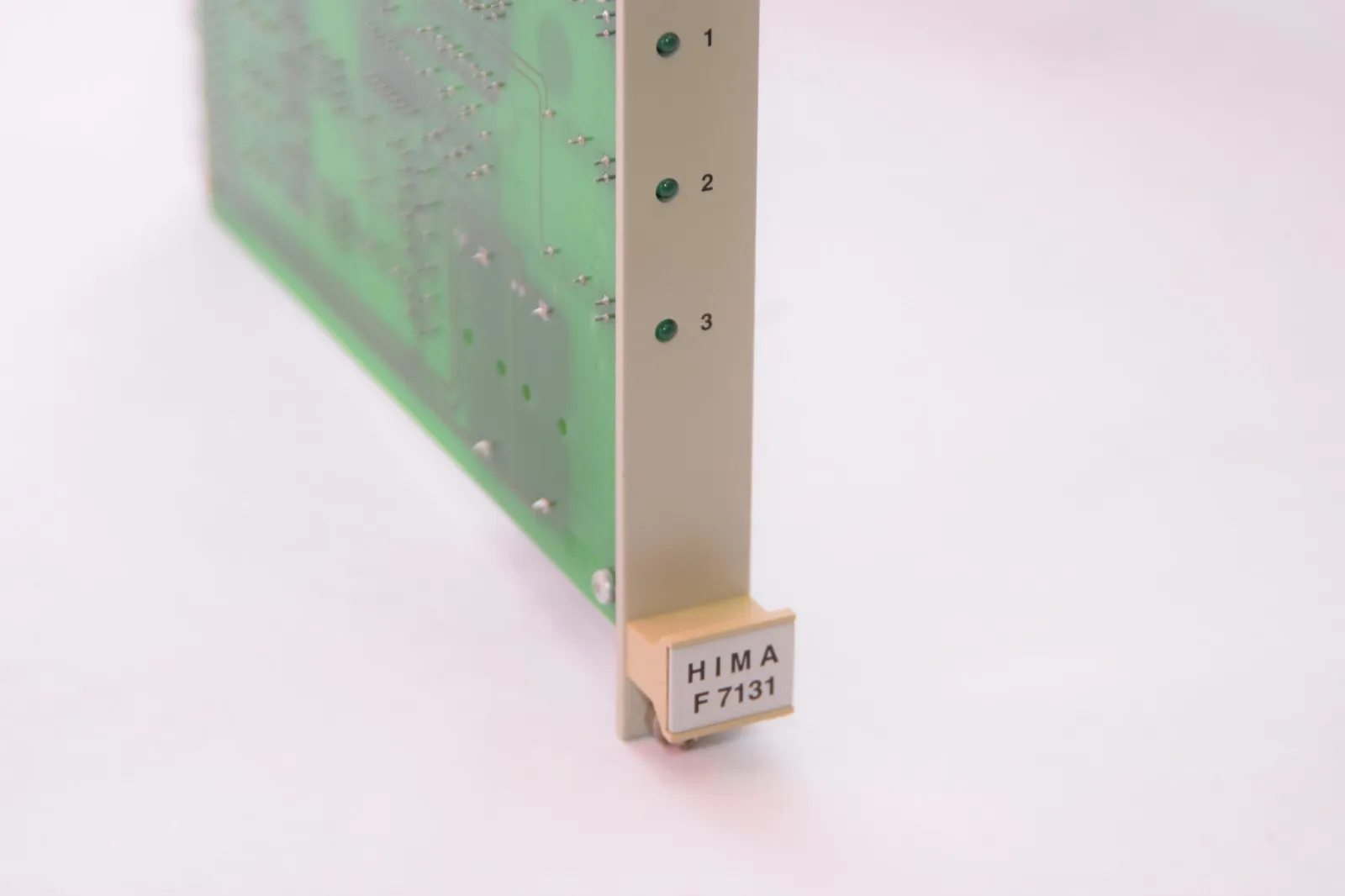

· 3 LED-displays at the front of the module



· 3 test bits for the central modules F 8650 or F 8651 for the diagnostic display and for the operation within the user's program



· For the using within the additional power supply (assembly kit B 9361) the function of the power supply modules in it could be monitored via 3 outputs of 24 V (PS1 to PS 3)



Note: Battery change is recommended every four years.



Type of battery: CR-1/2 AA-CB,



HIMA part no. 44 0000016.



Space requirement        4TE



Operating data              5 V DC: 25 mA

                                      24 V DC: 20 mA





Hima F7131

F7131

Technical Specifications

Manufacturer Hima
Part Number F 7131
Ordering Information F 7131
Product Catalog PES H51q
Description Power Supply Monitoring
Voltage 24 Vdc
Current 25 mA
Dimension 20.3 cm x 12.7 cm x 2.5 cm
Weight 0.2 kg



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com




Product Tags hima f7131          f7131          F7131 Power Supply Monitoring          F7131 Power Distribution Module
