Hima F7133 Power Distribution Module

F7133  4-Fold Power Distribution is available in stock and ready for ship. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.







Hima F7133 Power Distribution Module

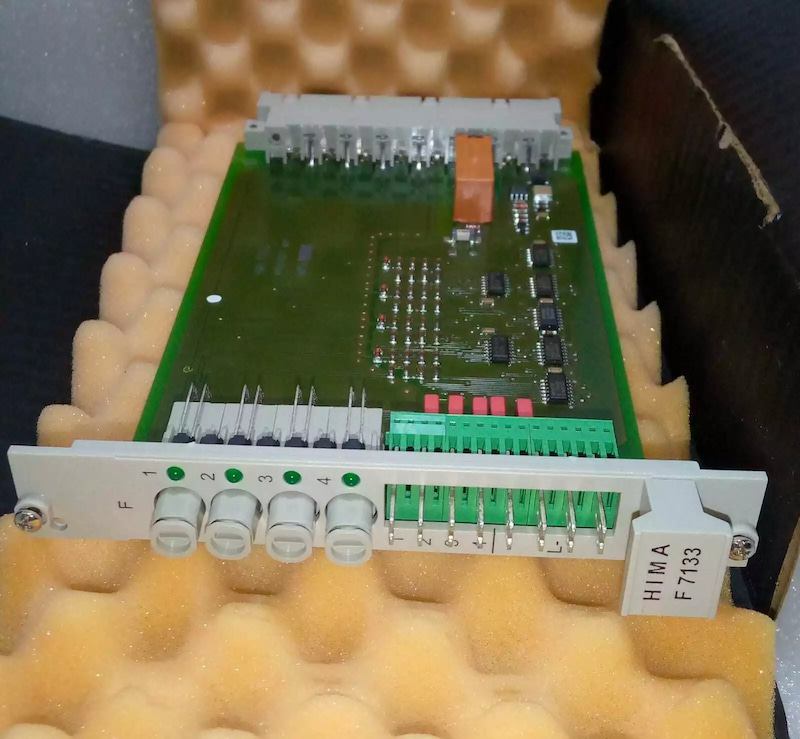

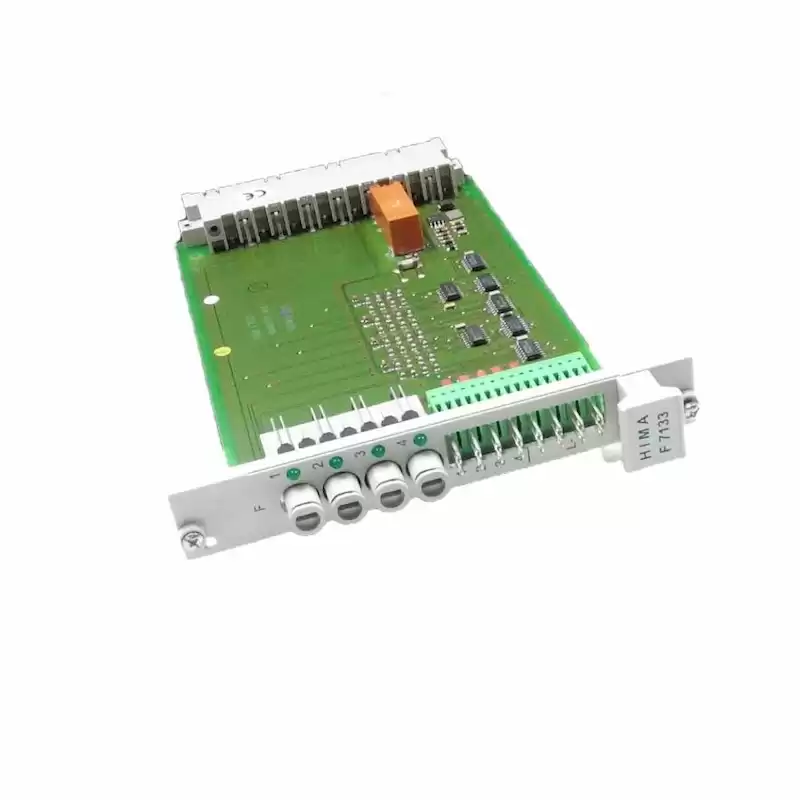

F 7133: 4-fold power distribution with fuse monitoring and L- distribution


The module has 4 miniature fuses providing the line protection. Each fuse is associated to a LED. The fuses are monitored via an evaluation logic and the state of each circuit is announced to the related LED.


The contact pins 1, 2, 3, 4 and L- on the front side serve to connect L+ resp. EL+ and L- to supply the IO modules and sensor contacts.



The contacts d6, d10, d14, d18 serve as rear terminals for 24 V supply of one IO slot each.If all fuses are in order, the relay contact d22/z24 is closed. If a fuse is not equipped or faulty, the relay will be deenergized. Via the LEDs faults are announced as follows:



Supply voltage

for path

Fuse Fuse
  in order faulty/missing
exists LED on LED is flashing
fails LED off LED is flashing



Note:



– If the module is not wired all LEDs are off.



– If the input voltage is missed in case of current pathes which are connected together no information to the state of the different fuses can be given.



Technical Specifications

Manufacturer Hima
Part Number F 7133
Ordering Information F 7133
Product Catalog H41q/H51q system
Description Power Distribution Module
Voltage 24 Vdc
Current 60 m A
Dimension 20.3 cm x 12.7 cm x 2.5 cm
Weight 0.1 kg



Hima F7133

100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com




Product Tags hima f7133          f7133          F7133 Power Distribution Module          4-Fold Power Distribution
