Hima F7553 Coupling Module

The HIMA F7553 984755302 Coupling Module is a specific component used in PLC systems and I/O racks. It is likely designed to facilitate communication. F7553 - Coupling module is available in stock and ready for ship.please contact us and we will get back to you within 24 hours.





Hima F7553 Coupling Module


F 7553: Coupling Module



in the assembly kit B 9302, with switch-off of the watchdog signal, for PES H51q

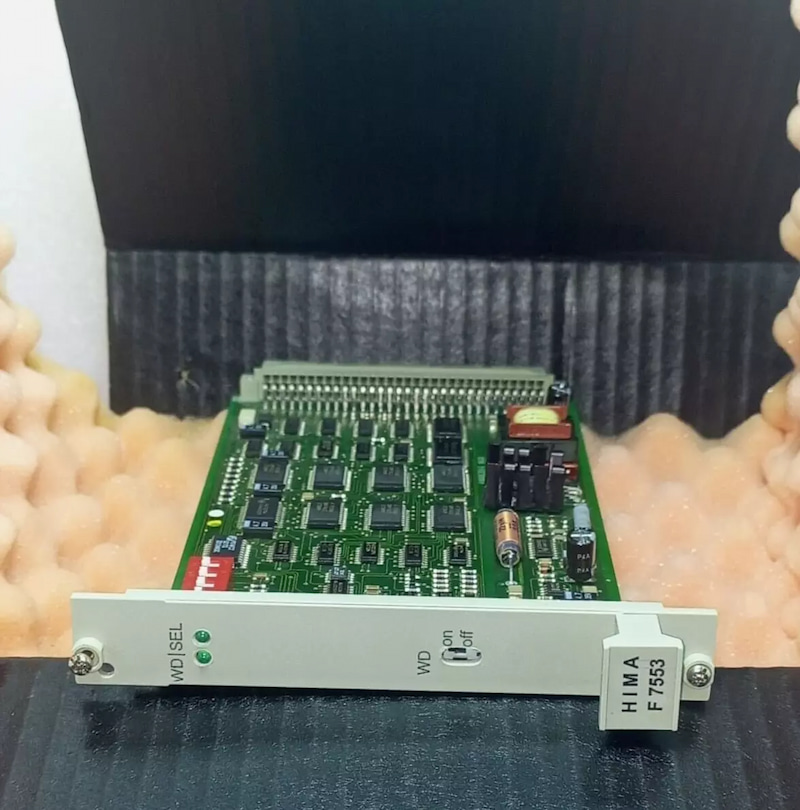

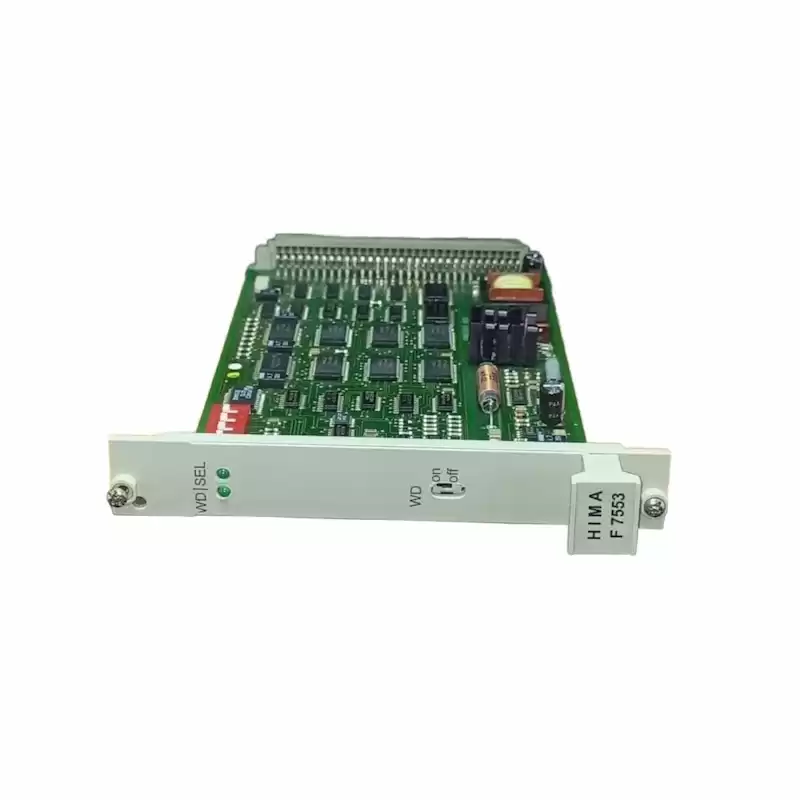

LED WD on the front plate shows the existing fail-safe watchdog signal. By the second LED SEL the access to the IO modules of the appertaining IO subrack is signalled. Via the shrouded switch WD the WD signal can be switched off to change the coupling module F 7553 without releasing a system emergency-off.

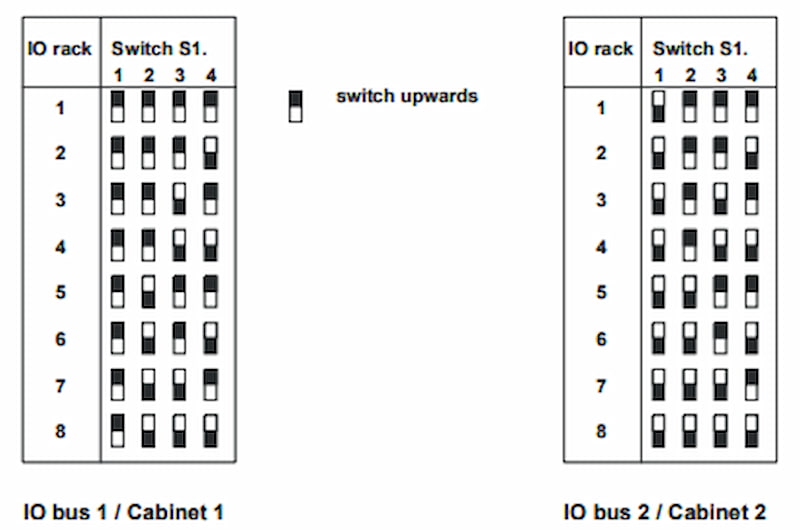

The coding switches S1.1 ... S1.4 serves the setting of the numbers for the IO bus (cabinet) and sub rack:









The coupling module consists of the monitoring of the 5 V supply of the IO subrack and transmits a corresponding status signal to the central module.



The module is automatically tested during operation.



Space requirement        4 TE



Operating data              5 V DC: 600 mA

                                      24 V DC: 750 mA





Technical Specifications

Manufacturer Hima
Part Number F 7553
Ordering Information F 7553
Product Catalog PES H51q
Description Coupling Module
Voltage 24 Vdc
Current 750 mA
Dimension 20.3 cm x 12.7 cm x 2.5 cm
Weight 0.1 kg



Hima F7553





100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com
