Products Detail:
|

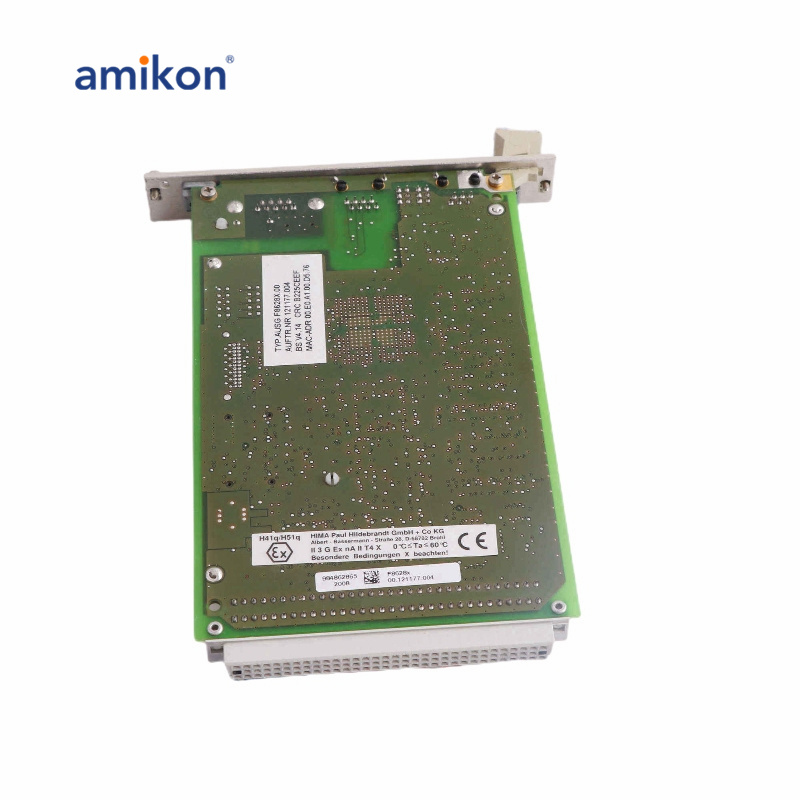

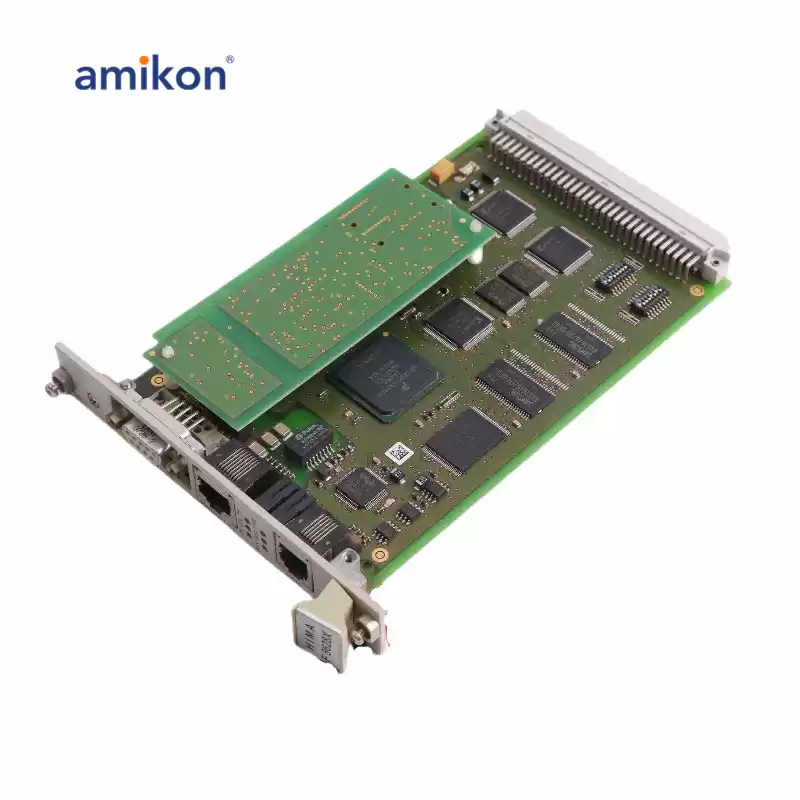

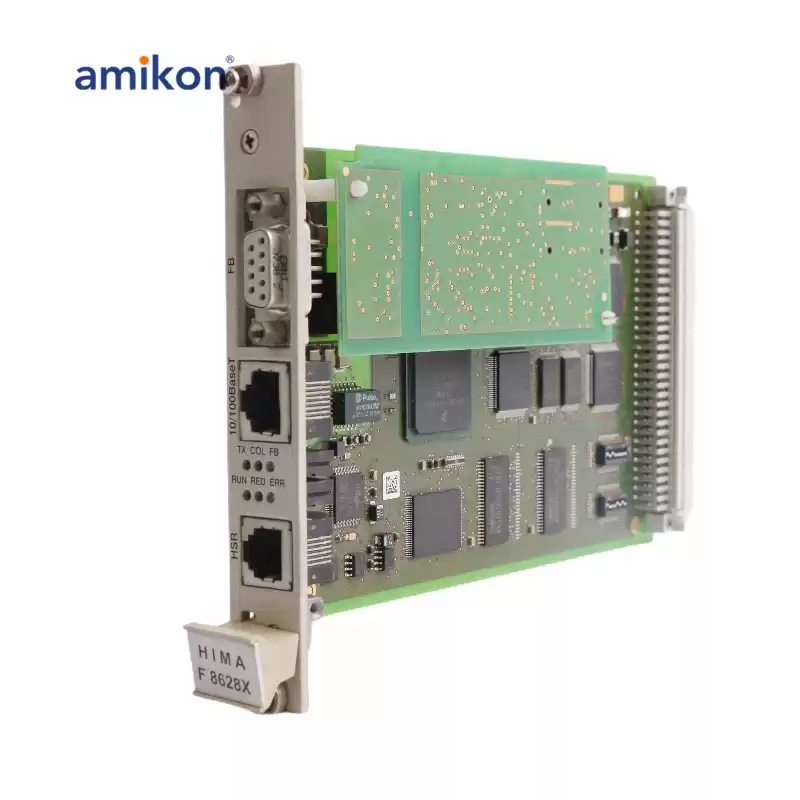

F8628X is a Communication Module manufactured by HIMA. Safety-related communication can also occur via the TÜV-certified safeethernet protocol using the F 8627 X or F 8628 X Ethernet communication modules.To achieve a constant transmission time, HIMA recommends planning an individual PES master and an individual bus for safety-related data transmission with a baud rate of 57.6 kbit/s.
|
|
F8628X Data sheet
|
125 direcciones esclavas Velocidad en baudios de 9,6 kBit/s a 12 MBit/s Capa
física RS485
|
|
192 bytes de entrada y 240 bytes de salida Mín. intervalo esclavo de 3 ms
Precisión de +/- 10 ms Monitoreo de vigilancia PROFIBUS-DP
|
|
EI F8628X es un módulo de comunicación versátil y confiable que se puede utilizar en una amplia variedad de aplicaciones industriales. Es una herramienta valiosa para conectar controladores HIMA a redes PROFIBUS-DP.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
FAQ:
1. What is the power supply requirement for the F8628X?
The F8628X module operates on a 24 V DC power supply, with a nominal voltage range from 20.4 V DC to 28.8 V DC. It has a low current consumption of up to 30 mA at rated voltage, which makes it energy-efficient and suitable for various industrial environments.
2. What is the operating temperature range for the F8628X?
The F8628X module is designed to operate in temperatures ranging from 0°C to 60°C, making it suitable for most industrial environments. For storage, the module can withstand temperatures between -40°C and +85°C, ensuring reliable performance in extreme conditions.
3. Does the F8628X module support redundancy?
Yes, the F8628X module supports redundancy configurations, ensuring continuous operation in safety-critical applications. Redundant setups increase system reliability by minimizing the risk of downtime in case of module failure, which is crucial for maintaining operational safety and efficiency.
