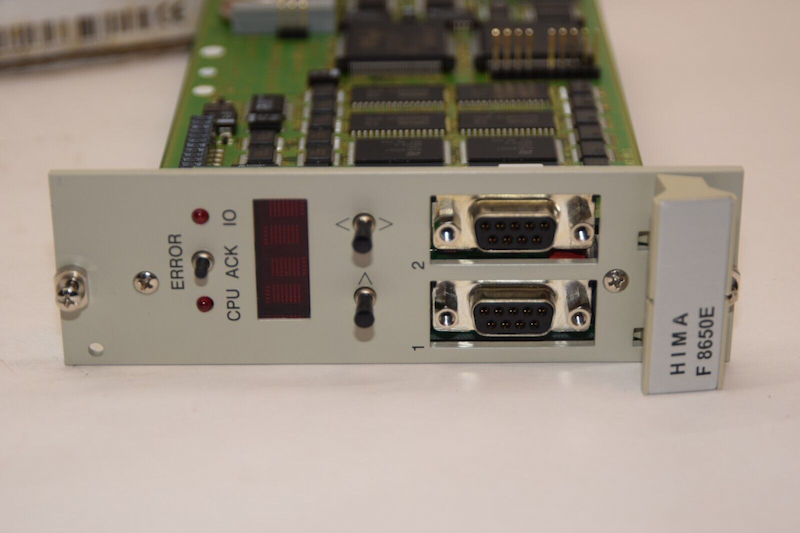

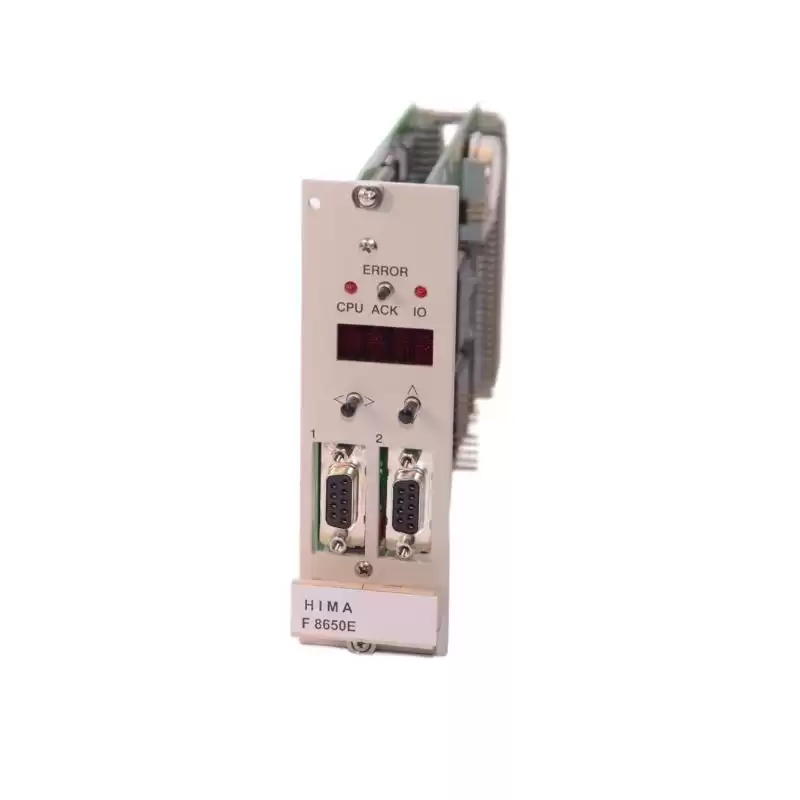

F 8650E Central Module
Use in the PES H51q-MS, HS, HRS,
For safety-related requirement classes SIL 1 - 3 and AK 1 - 6

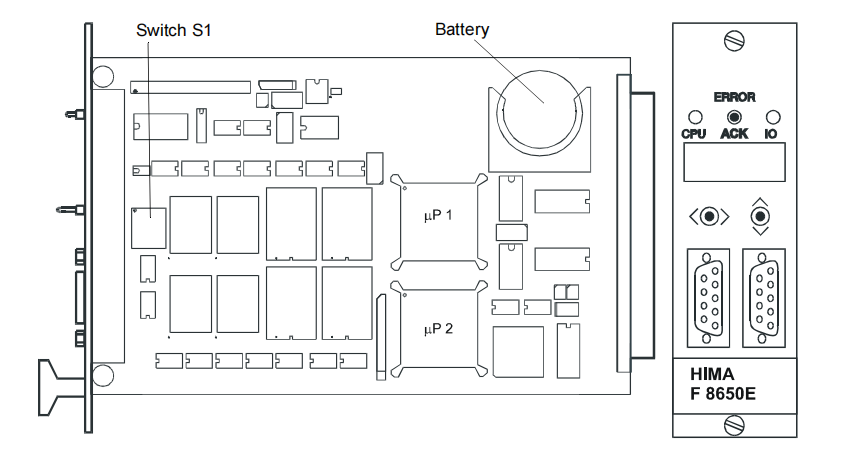

Figure View:
Technical Specifications:
| Two clock-synchronised micro processors |
|
| Type: |
INTEL 386EX, 32 bits |
| Clock frequency: |
25 MHz |
| Memory per microprocessor |
|
| Operating System: |
Flash-EPROM 1 MB |
| User program: |
Flash-EPROM 1 MB*) |
| Data: |
SRAM 1 MB*) |
| |
*)Efficiency dependent on operating system version. |
| Interfaces |
Two serial interfaces RS-485 with galvanic insulation. |
| Diagnostic display |
Four digit matrix display. |
| Shutdown on fault |
Safety-related watchdog with 24-VDC-output, max. 500 mA current drain, short circuit proof. |
| Construction |
Two European standard PCBs, one PCB for the the diagnostic display. |
| Space requirement |
8 TE |
| Operating Voltage |
5 V, 2 A |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
