Hima F8652X Central Module

The HIMA F 8652X is a central module designed for use in the PES H41q-MS, -HS, -HRS systems. F8652X - Central Module is available in stock and ready for ship.

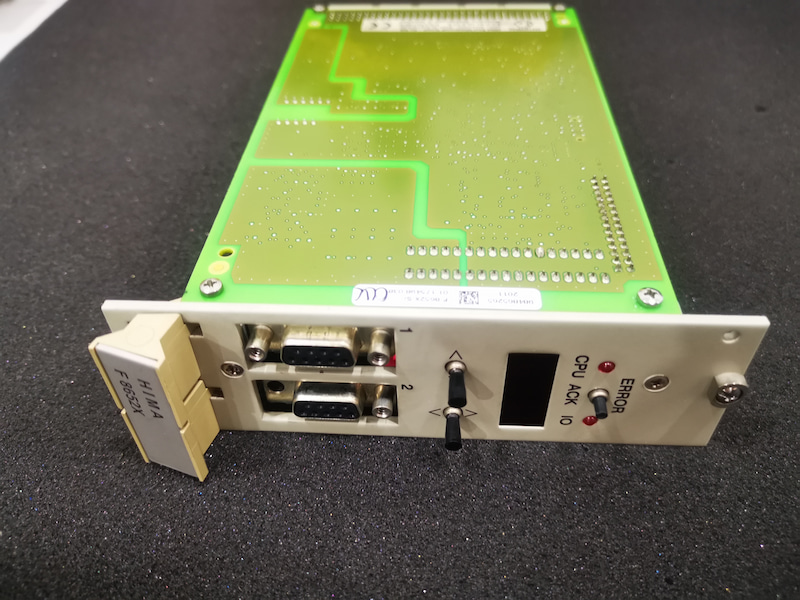

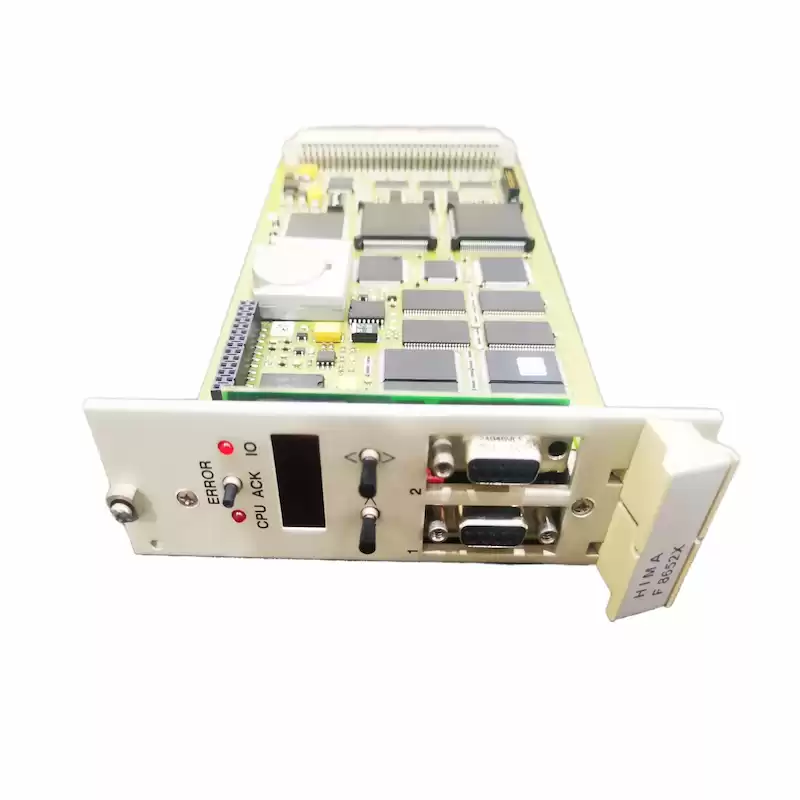

F 8652X Central Module For H41q system



Structure of the central module F 8652X:



· two clock-synchronised micro processors



· each mikroprocessor with an own memory, one processor operates with real data and program and the other one with inverted data and program



· testable hardware comparer for all the external accesses of both micro processors, in case of a fault the watch dog will be set to the safe status and the status of the processor is announced



· Flash-EPROMs of the program memory for the operating system and the user's program usable for min. 100.000 writing cycles



· Data memory in sRAM



· Multiplexer to connect I/O bus, DPR and redundant CU (not used in the H41q-MS system)



· Battery backup of the sRAMs via batteries on the central module with monitoring and on the bus board



· 2 interfaces RS 485 with galvanic isolation. Transm. rate: max. 57600 bps. Set to 9600 bps and to 57600 bps by switch, or setting also of other transm. rates by software (the software values have priority)



· Diagnostic display and 2 LEDs for information out of the system, I/O level and user's program



· Dual Port RAM for fast memory access to the second central module (not used in the H41q-MS system)



· hardware clock, battery backed



· I/O bus logic and connection to the input-/output modules



· Fail-safe watchdog



· power supply monitoring, testable (5 V system voltage)



· Battery monitoring





Technical Specifications

Manufacturer Hima
Part Number F 8652X
Ordering Information F 8652X
Product Catalog H41q system
Description Central Module
Voltage 5 V
Current 2 A
Dimension 20.3 cm x 12.7 cm x 2.5 cm
Weight 0.2 kg
