Dimensions ：2x7x8cm
|
Weight: 0.08KG
|
Umgebungsklima：25-+60 °C
|
Output voltage：24V DC
|
|
Full Description:Contact material AgNi, hard gold-plated Switching capacity AC ≤500 VA, cos p > 0.5≤830 VA, cos p > 0.9
|
|

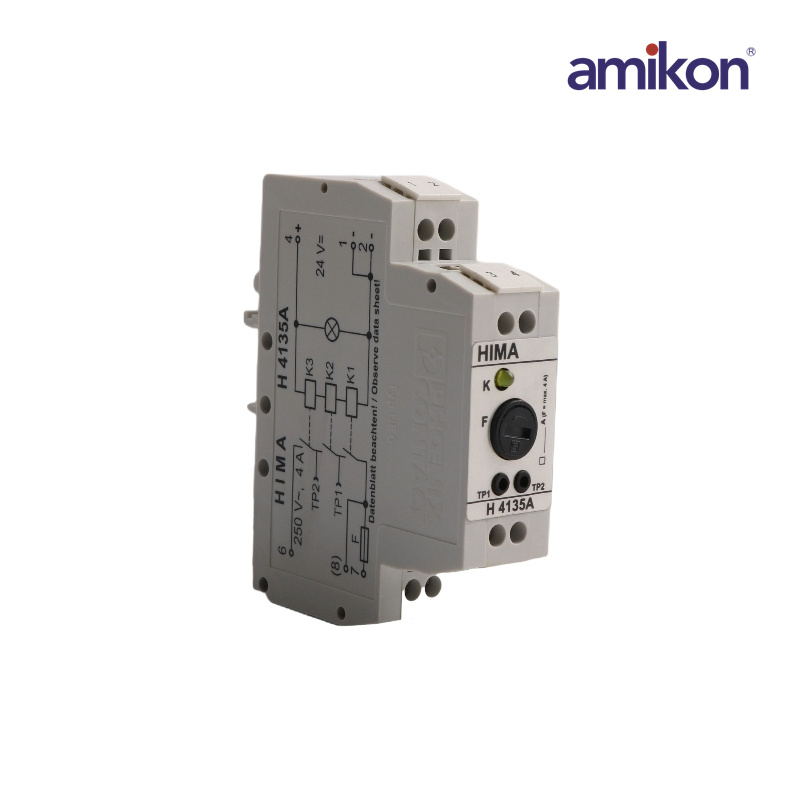

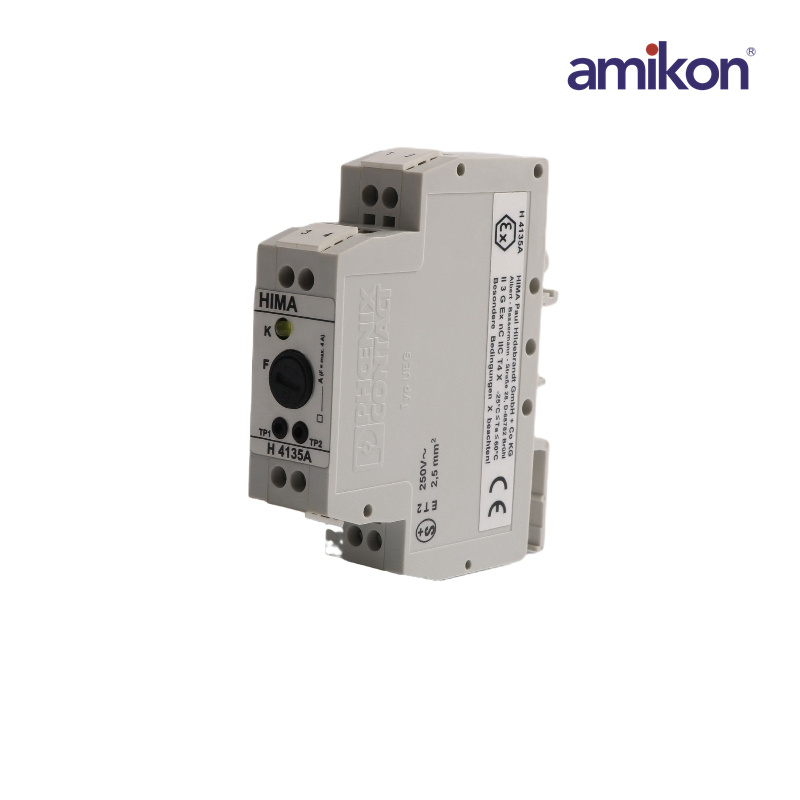

HIMA H4135A Switching Relay Module
|
H4135A is a Switching Relay Module manufactured by HIMA.The relay is suitable for the switching of safety-related circuits. Thus the relay can be used forsafety shutdowns, e. g. to cut off the entire fuel supply for combustion plants.The module is equipped with relays in diversity.The relay has a safe isolation according to DIN EN 50178 between the output contact and theinput. The clearance in air and the creepage distance are dimensioned for overvoltage classIII up to 300 V.
|
