Products Detail:

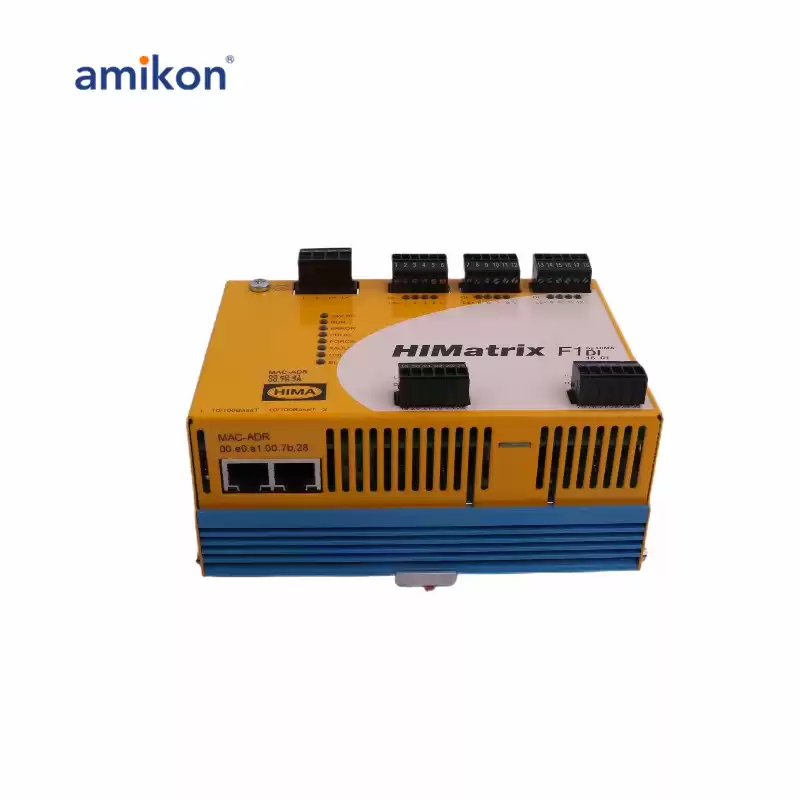

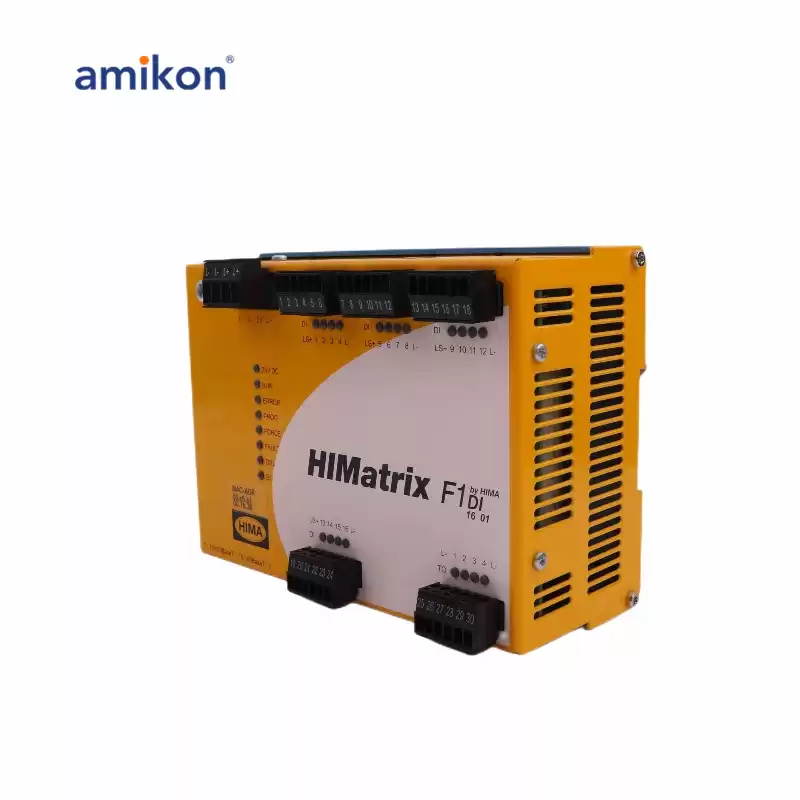

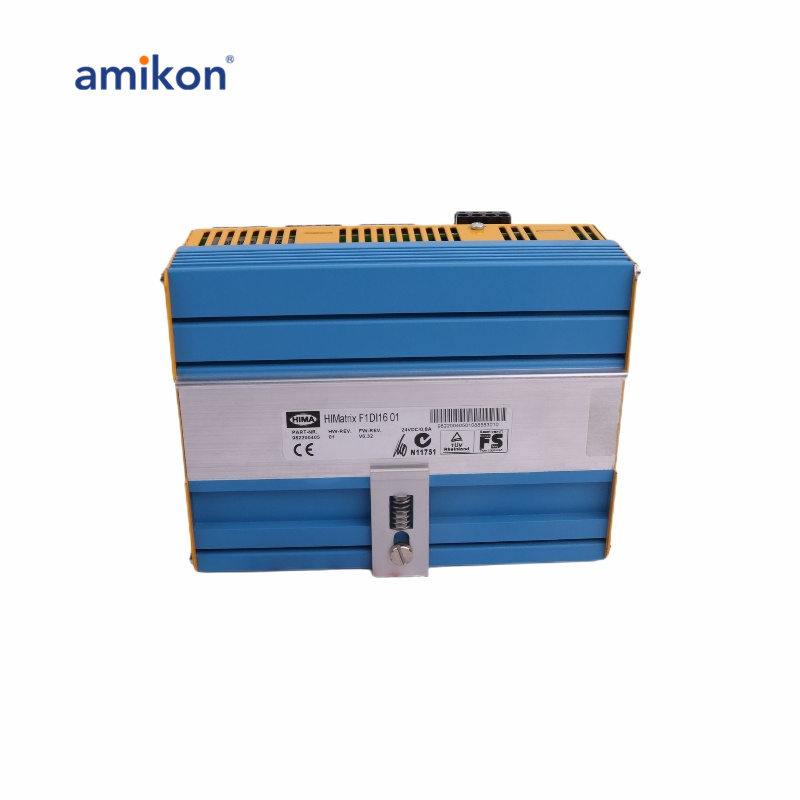

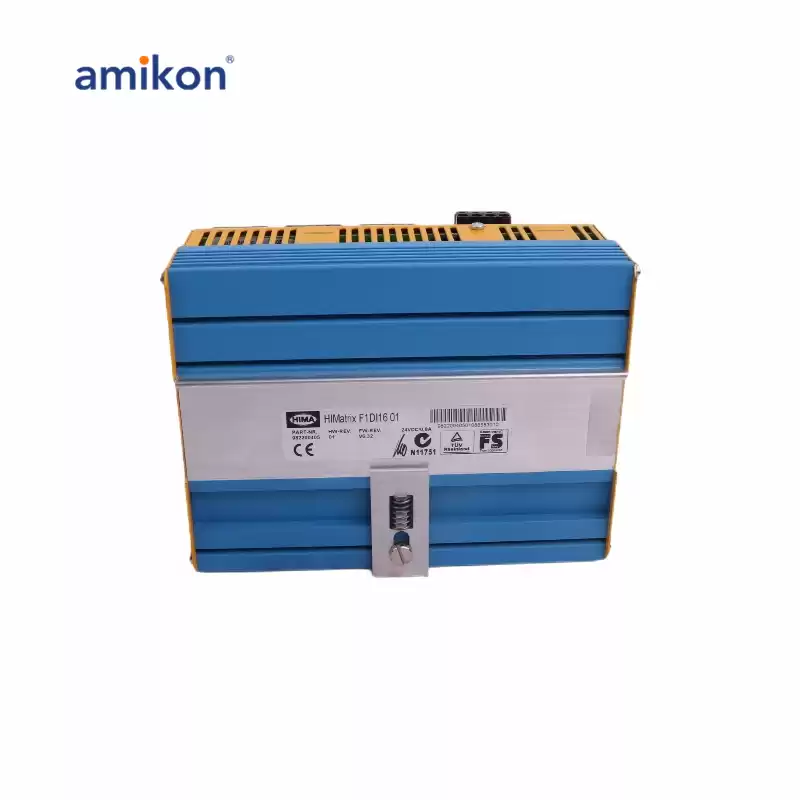

The safety-related F1 DI 16 01 remote I/O is a compact system in a metal enclosure with 16 digital inputs and 4 pulsed outputs.
The remote I/O is available in two model variants for SILworX and two model variants for ELOP II Factory. All variants are described in this manual.
The remote I/O serves to extend the I/O level of HIMax and HIMatrix controllers, and is connected to them via safeethernet. The remote I/O itself is not able to run a user program.
The HIMatrix remote I/Os are not multi-master capable.
The remote I/O is suitable for mounting in Ex-zone 2, see Chapter 4.1.3.
The device has been certified by the TÜV for safety-related applications up to SIL 3(IEC 61508, IEC 61511 and IEC 62061), Cat. 4 (EN 954-1) and PL e (EN ISO 13849-1).
Further safety standards, application standards and test standards are specified in the certificate available on the HIMA website.
Safety Function:
The remote I/O is equipped with safety-related inputs. The input values on the inputs are safely transmitted to the connected controller via safeethernet.
Reaction in the Event of a Fault:
If the device detects a fault on a digital input, the user program processes a low level in accordance with the de-energized to trip principle.
The device activates the FAULT LED.
In addition to the channel signal value, the user program must also consider the corresponding error code.
The error code allows the user to configure additional fault reactions in the user program.
HIMATRIX F1DI16 01 – FAQ:
1. What is the HIMATRIX F1DI16 01?
The HIMATRIX F1DI16 01 is a safety-related remote I/O module manufactured by HIMA. It features 16 digital outputs and is designed for use in industrial safety systems.
2. Can the F1DI16 01 operate independently?
No, the F1DI16 01 is designed to extend the I/O level of the system but cannot execute user programs independently.
3. What communication protocol does the F1DI16 01 use?
It connects to HIMax or HIMatrix controllers via SafeEthernet, ensuring reliable and secure communication.
