The safety-related F3 DIO 16/8 01 remote I/O is a compact system in a metal housing with 16 digital inputs, 8 2-pole digital outputs and 2 pulsed outputs.
|
F3 DIO 16/8 01 Data sheet
|
The 2-pole outputs consist of 2 switches connected in series, one switching to L+ and the other switching to L-.
|
The remote I/O is available in various model variants for SILworX and ELOP II Factory.
|
They are used to extend the I/O level, but are not able to run any user program by themselves.
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|

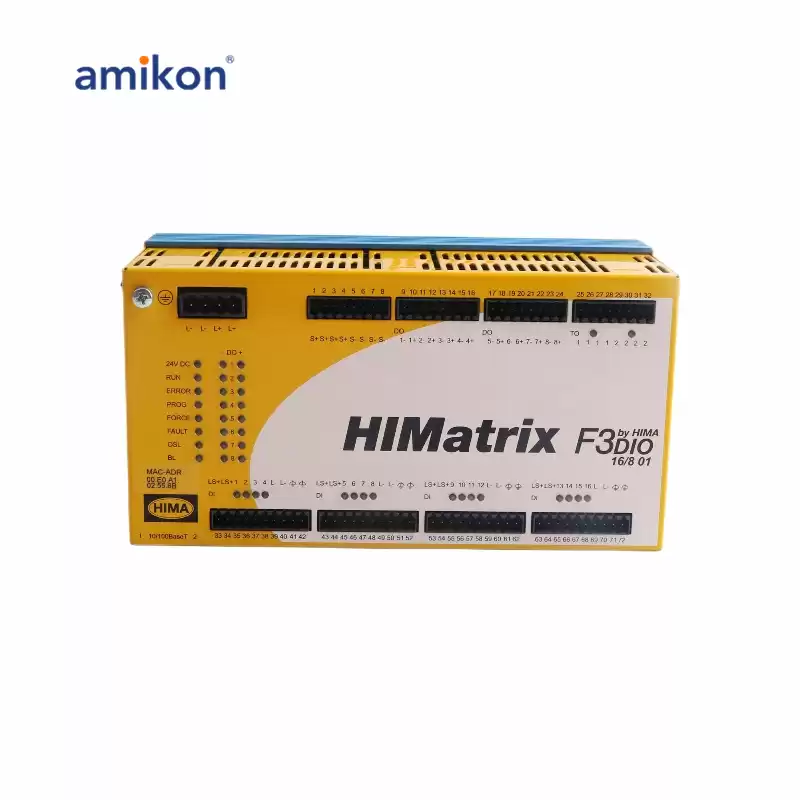

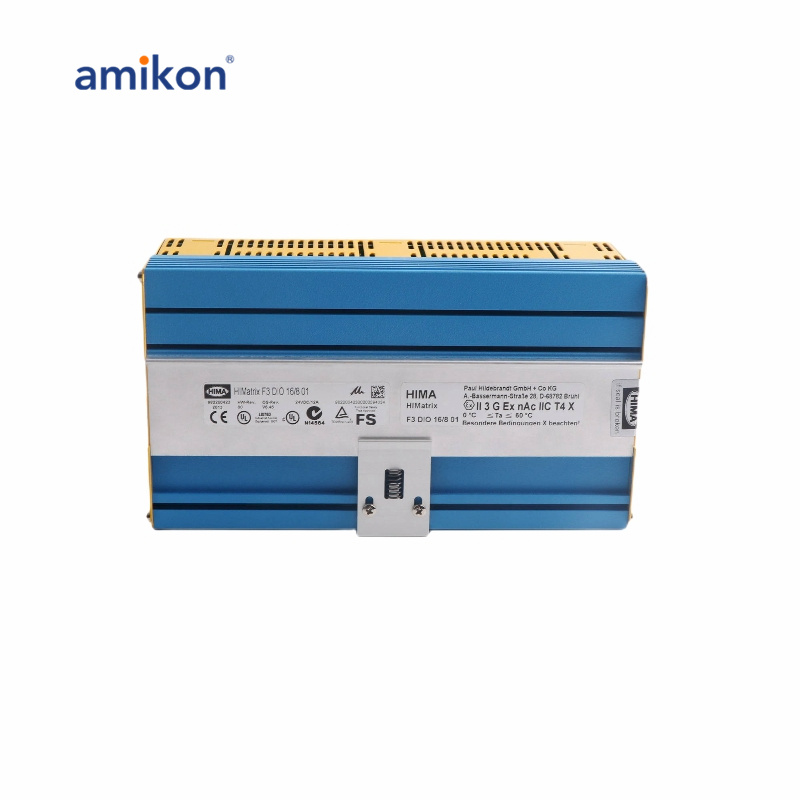

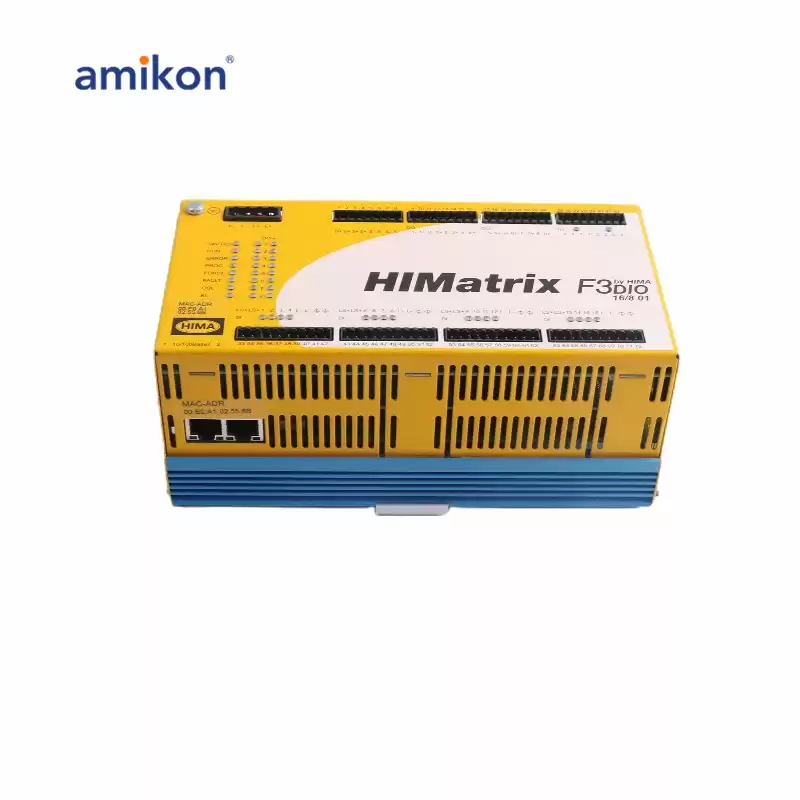

The safety-related F3 DIO 16/8 01 remote I/O is a compact system in a metal housing with 16 digital inputs, 8 2-pole digital outputs and 2 pulsed outputs. The 2-pole outputs consist of 2 switches connected in series, one switching to L+ and the other switching to L-.The remote I/O is available in various model variants for SILworX and ELOP II Factory, see Table 4.
Remote I/Os are connected to individual HIMax or HIMatrix controllers via safeethernet. They are used to extend the I/O level, but are not able to run any user program by themselves.
The remote I/O is suitable for mounting in Ex-zone 2, see Chapter 4.1.6. The device is TÜV-certified for safety-related applications up to SIL 3 (IEC 61508, IEC 61511 and IEC 62061), Cat. 4 and PL e (EN ISO 13849-1) and SIL 4 (EN 50126, EN 50128 and EN 50129).
Further safety standards, application standards and test standards are specified in the certificates available on the HIMA website.
Safety Function
The remote I/O is equipped with safety-related digital inputs and outputs. The input values on the inputs are safely transmitted to the connected controller via safeethernet. The outputs are safely assigned their values by the connected controller via safeethernet.
Reaction in the Event of a Fault
If the device detects a fault on a digital input, the user program processes a low level in accordance with the de-energized to trip principle.
The device activates the FAULT LED.
In addition to the channel signal value, the user program must also consider the corresponding error code.
The error code allows the user to configure additional fault reactions in the user program.
