Products Detail:
|

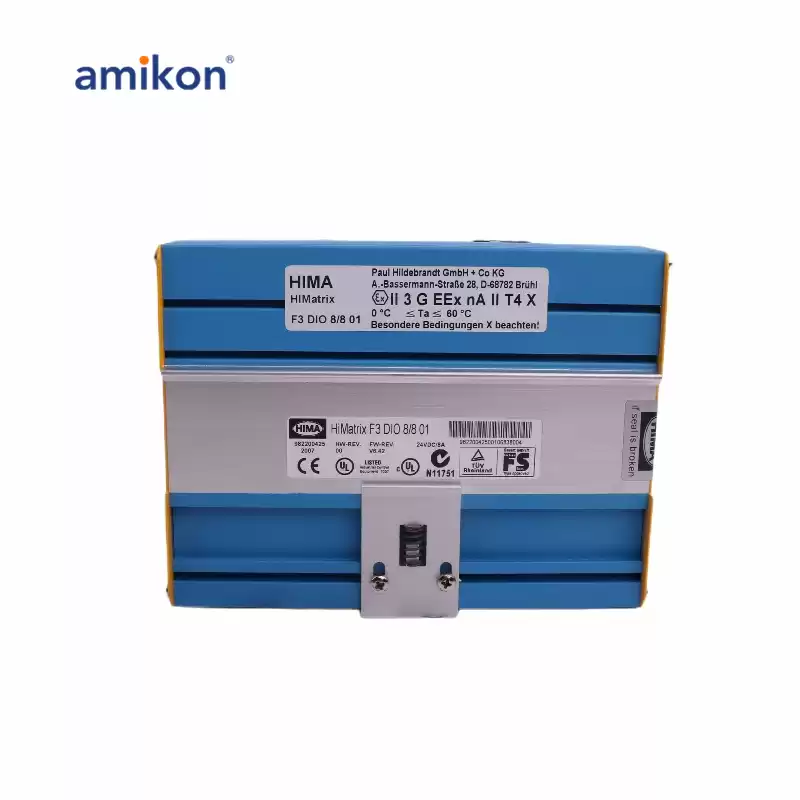

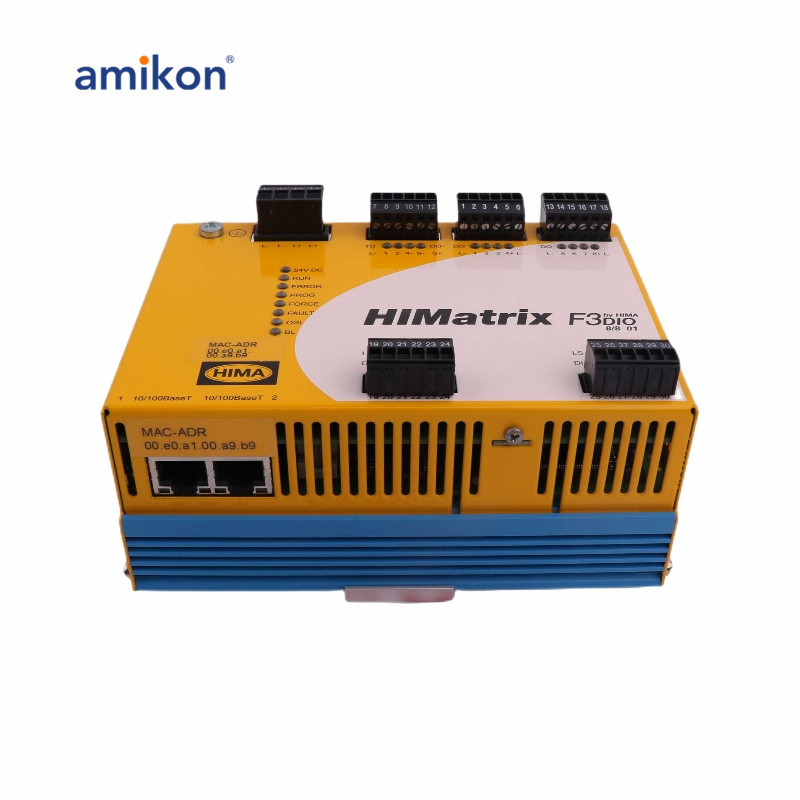

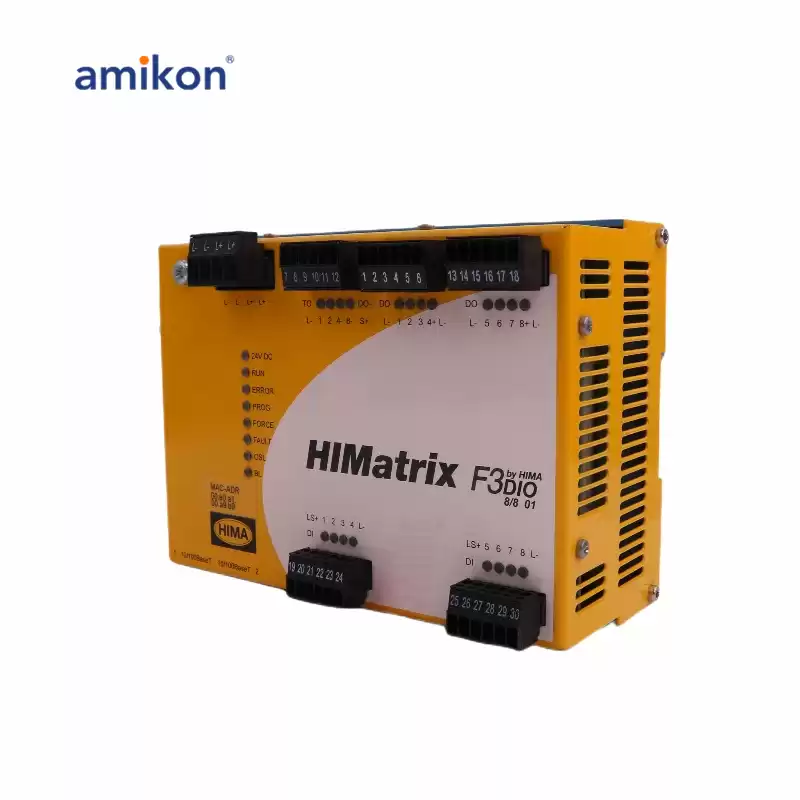

The F3 DIO 8/8 014 model variant is intended for use in railway applications. The electronic components are coated with a protective lacquer.The remote I/O F3 DIO 8/8 014 meets the conditions for vibrations and shock test according to IEC 61373, category 1, class B.
|
|
F3DIO8/801 Data sheet
|
The remote I/O is mounted on a 35 mm DIN rail such as described in the HIMatrix system manual for compact systems.
|
|
The controller is equipped with 8 digital outputs. The state (HIGH, LOW) of each output is signaled by an individual LED (HIGH, LOW).
|
|
At the maximum ambient temperature, each of the outputs 1...3 and 5...7 can be loaded with 0.5 A and outputs 4 and 8 can be loaded with 1 A or 2 A at an ambient temperature of up to 50 °C.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
HIMA F3DIO8/801 – FAQ:
1. What is the HIMA F3DIO8/801 module?
The F3DIO8/801 is a digital input/output module designed for use in safety-critical systems within HIMA’s HIMatrix series. It provides reliable digital signal processing for automation and safety applications.
2. What is the primary function of the F3DIO8/801 module?
The module processes digital signals, either as inputs (receiving signals from field devices) or outputs (sending commands to actuators), in safety-related applications. Its flexibility in channel configuration allows efficient system design.
3. What certifications does the F3DIO8/801 have?
The F3DIO8/801 is certified for SIL 3 (Safety Integrity Level 3) according to IEC 61508, making it suitable for high-demand safety applications in industrial environments.
