HIMA F8650X manual
|
|
Dimensions ：4x 18.5x 12.7cm
|
Weight: 0.32KG
|
Clock frequency:25 MHz
|
Operating data: 5 V / 2 A
|
|

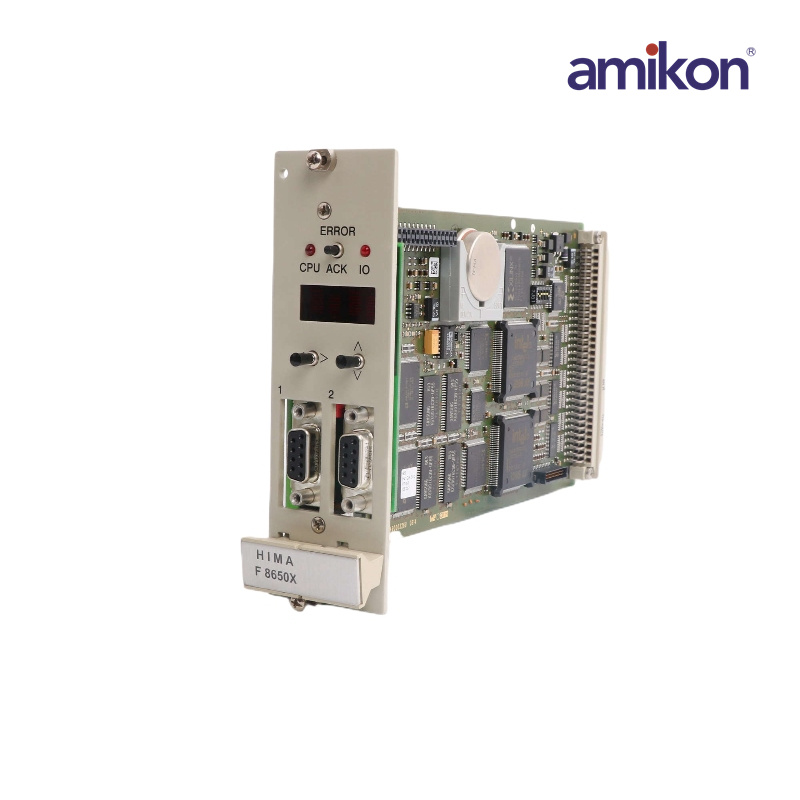

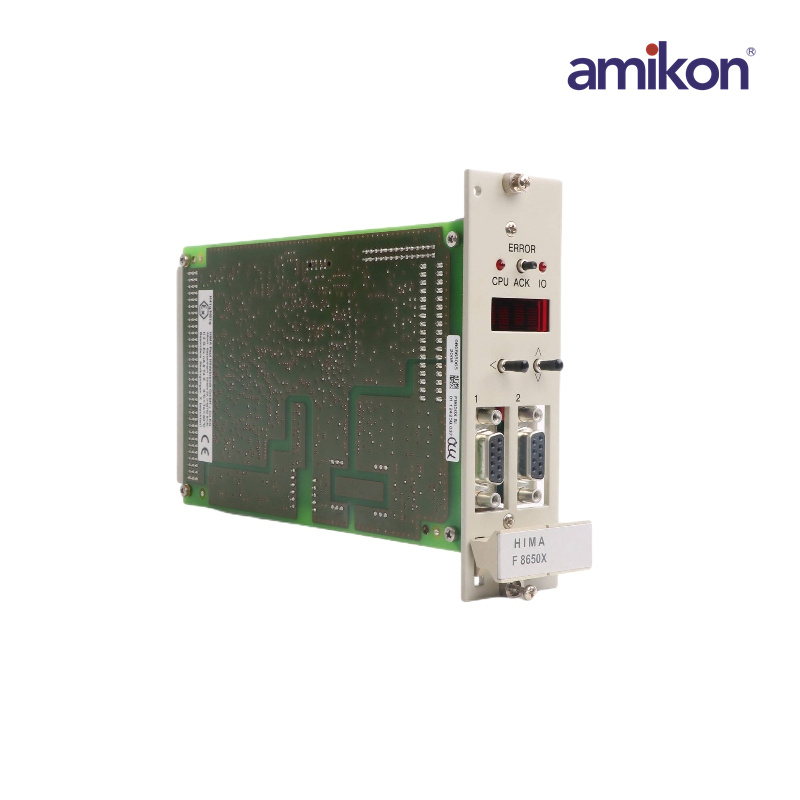

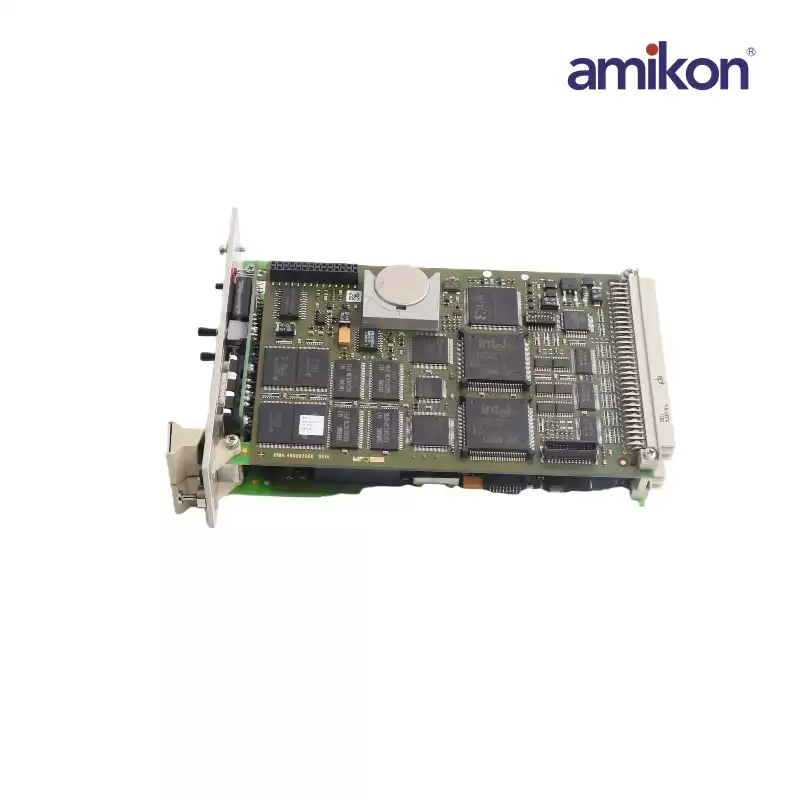

F8650X is a Safety System Central Module manufactured by HIMA.F 8650X: Central module Use in the PES H51q-MS, -HS, -HRS, Safety-related, applicable up to SIL 3 according to IEC 61508.For the serial interface only the bus station no. 1-31 can be set. Within an Ethernet network the bus station no. can be set from 1 to 99. Therefore the switches S1-6/7 must be set in addition to the switches S1-1/2/3/4/5. The number of the communication partners within a network is still limited to 64.
This enhanced setting of the bus station no. is only possible from operating system BS41q/51q V7.0-8 (05.31) of the central module.The communication runs from the central module via the backplane bus to the communication module F 8627X and from the Ethernet ports of the F 8627X into the Ethernet network and vice versa.
|
