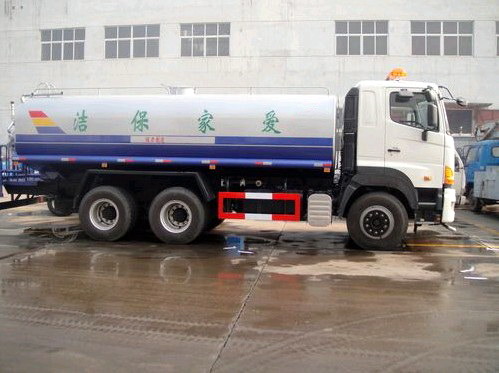

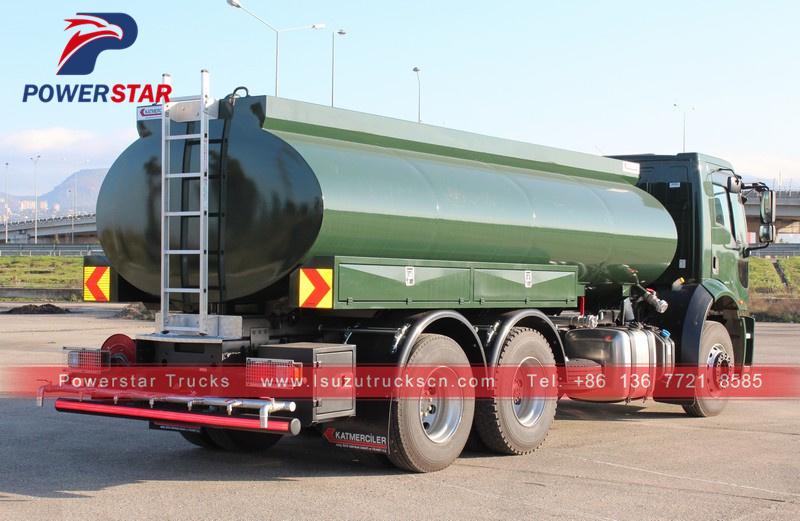

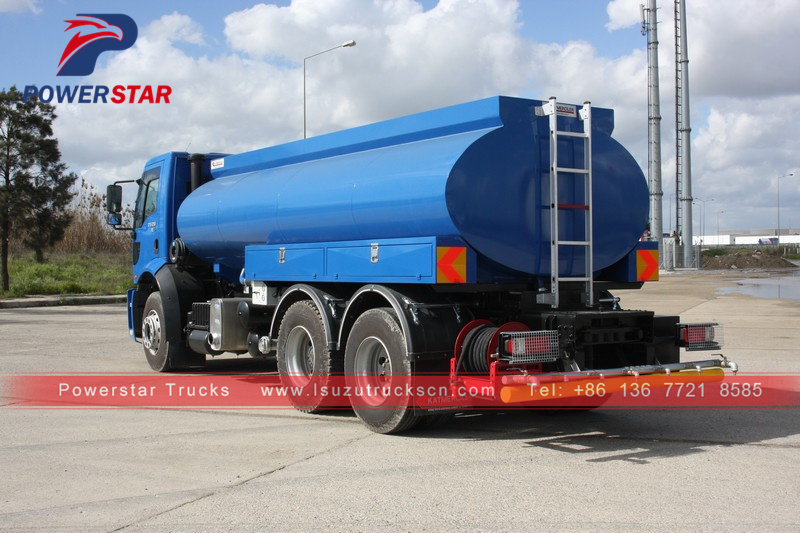

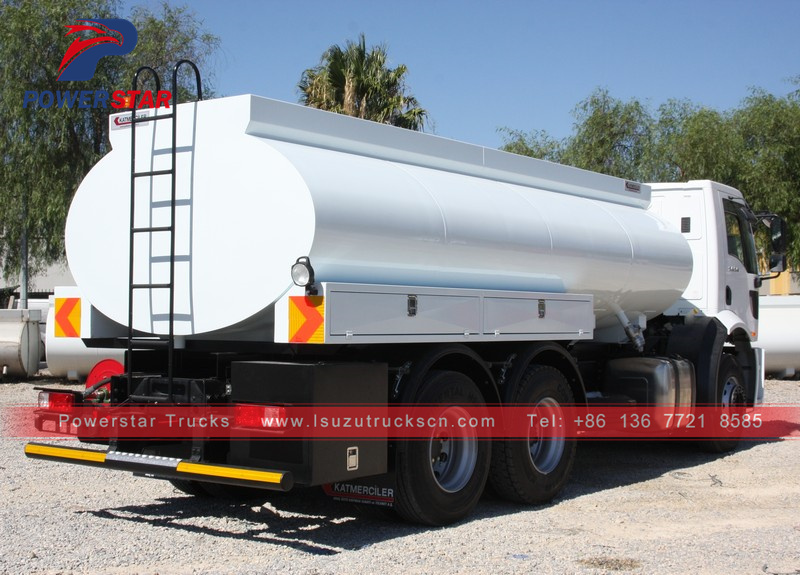

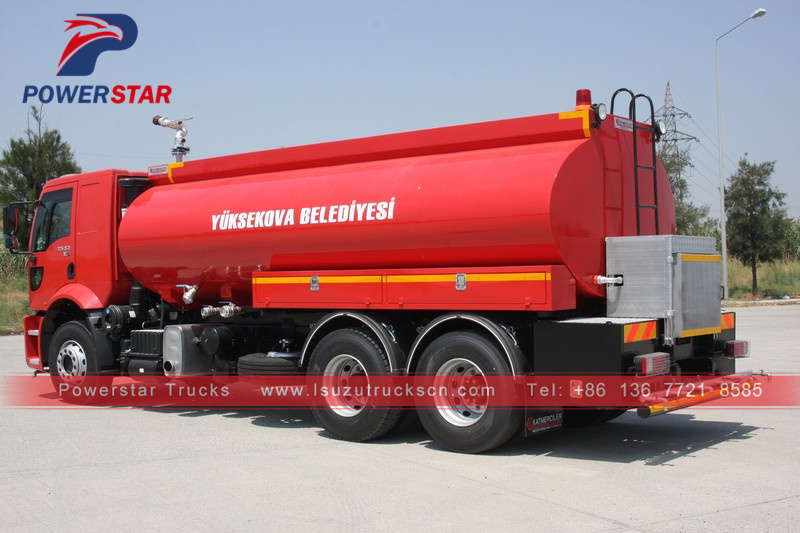

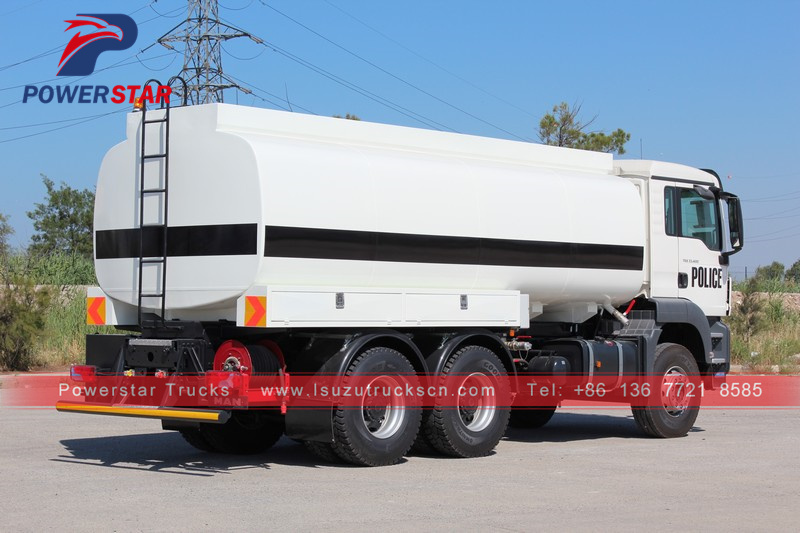

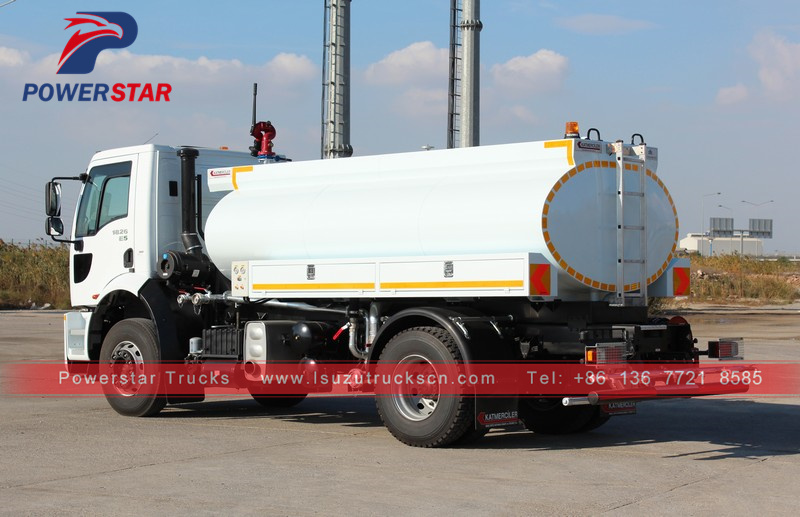

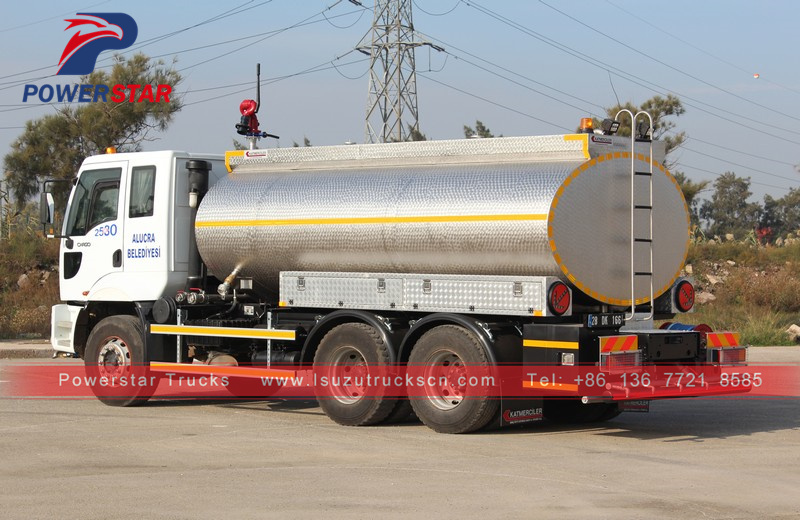

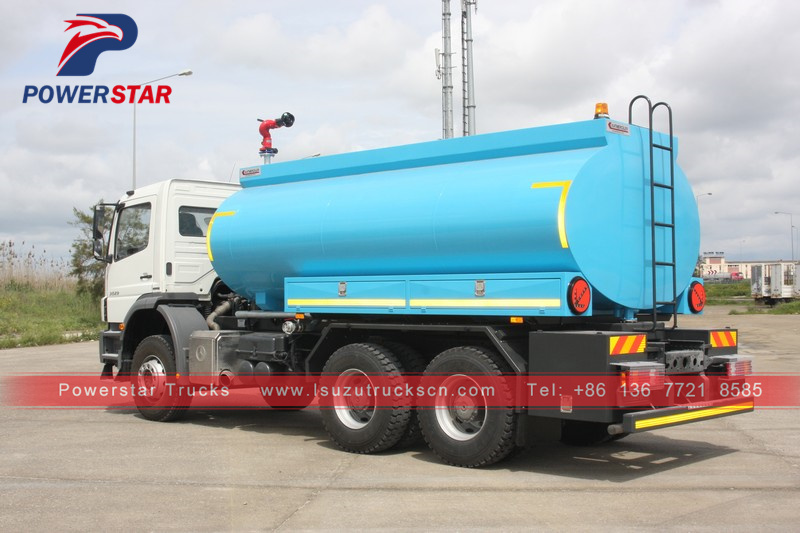

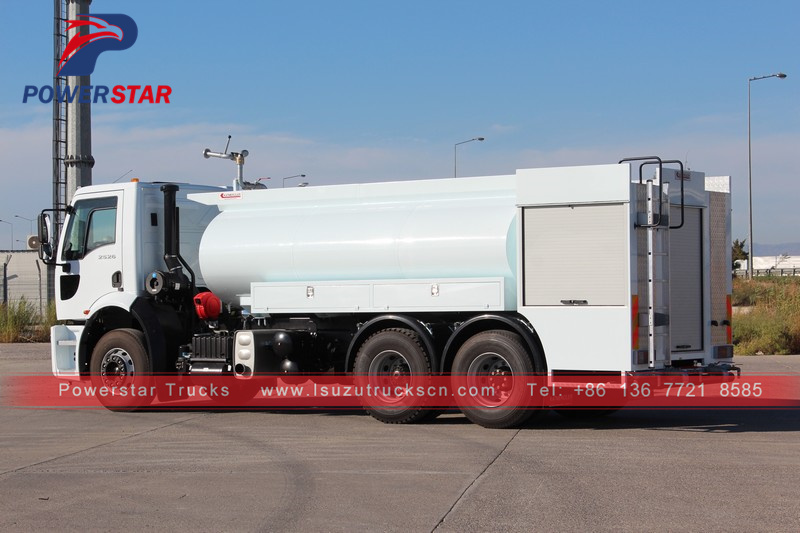

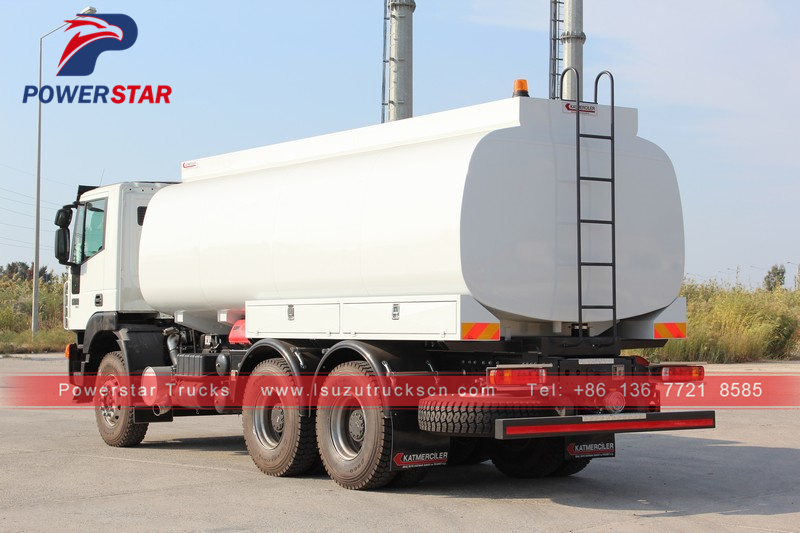

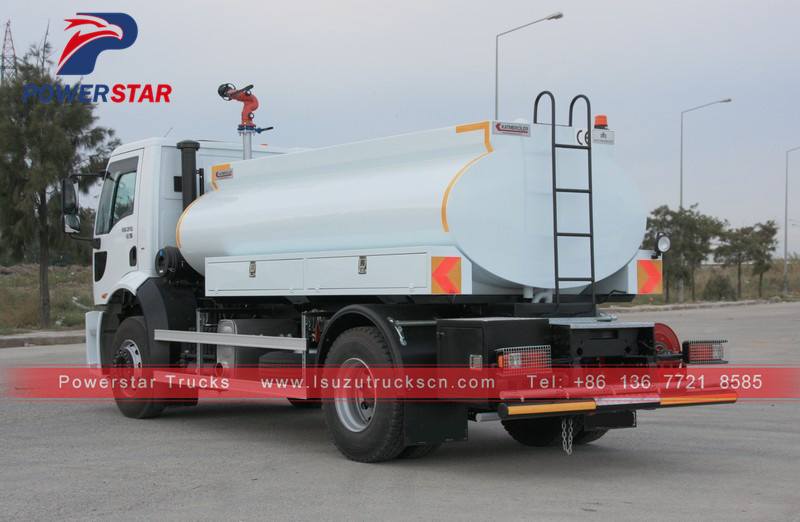

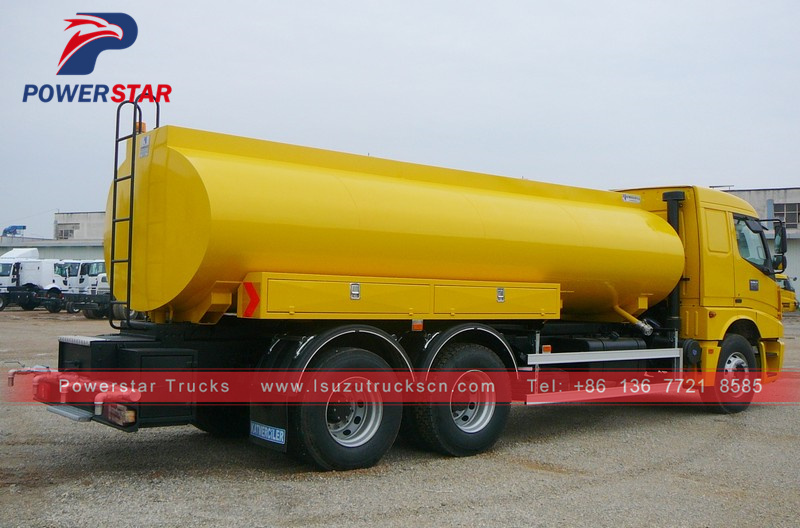

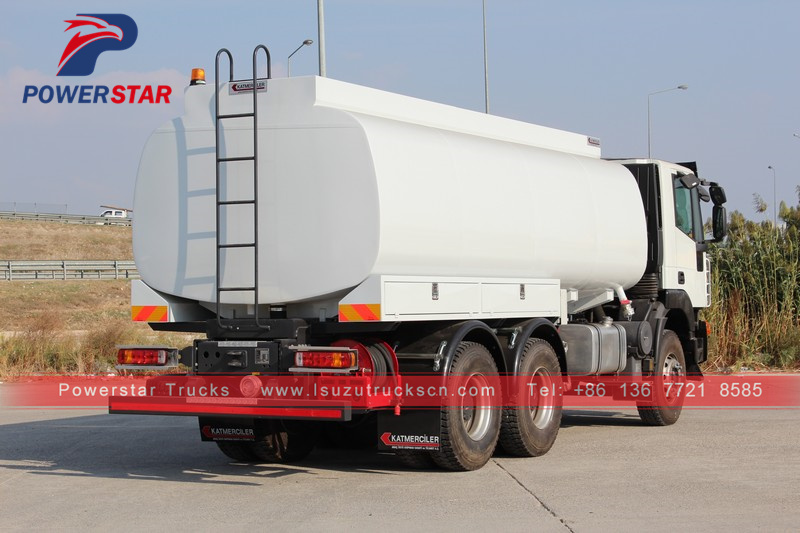

HIINO Water Delivery Tanker & HINO Water Sprinkler Vehicle
Applications:
HINO Water Bowser (also called Potable water tanker, drinking water tanker Isuzu, Stainless steel water bowser, agua potavel, Water delivery tanker, Water Tank Trucks) is is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.
HINO water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel sheet.
Key Features:
---- HINO 700 heavy duty chassis, perfect performance
---- HINO P11C series engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
Water Carrying Tanker Vehicle HINO (20,000L)
|
General
|
Vehicle Brand
|
POWERSTAR
|
Chassis Brand
|
HINO700
|
Overall Dimension
|
11250 * 2500 * 3300 mm
|
GVW / Kerb Weight
|
25,000kg / 10,800kg
|
Cab
|
Cab Capacity
|
3 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
HINO P11C
|
Power
|
350 HP (258 KW)
|
Displacement
|
10520 ml
|
Emission Standard
|
Euro IV or V
|
Chassis
|
Drive Type
|
6X4, (left hand drive)
|
Transmission
|
FAST 9-speed levers with 1
reverse
|
Wheelbase/No. of axle
|
3640+1350 mm / 3
|
Tire Specification
|
11.00R20
|
Tire Number
|
10 tires and 1 spare tire
|
Max Speed
|
105 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Tank Capacity
|
20,000 Liters
|
Tank shape
|
Ellipse
|
Material
|
Carbon steel, 5mm
|
Body Material
|
Weather resisting
steel
|
Water pump
|
China famous brand
|
Control
|
Manual (Optional air operated)
|
Rear working platform
|
Standard
|
All standard accessories: Warning
lights, music alarm, basic tool kit, English manual……
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
