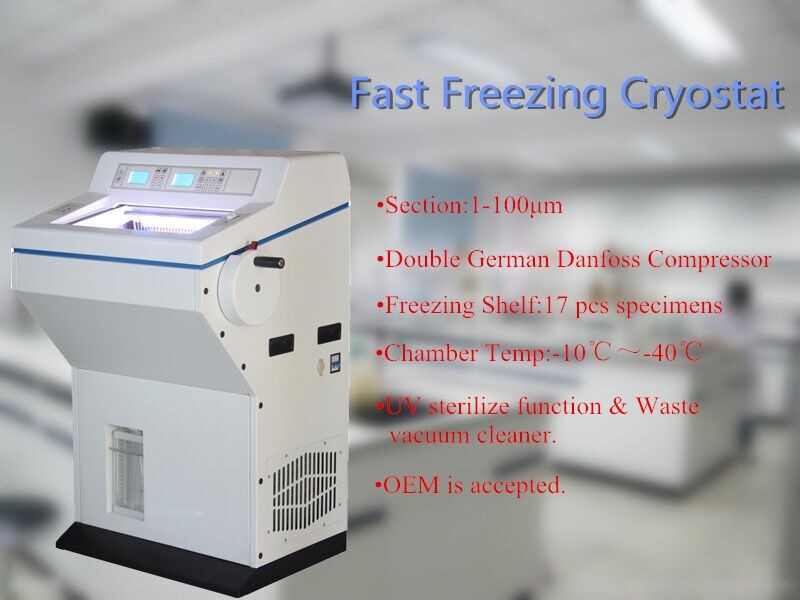

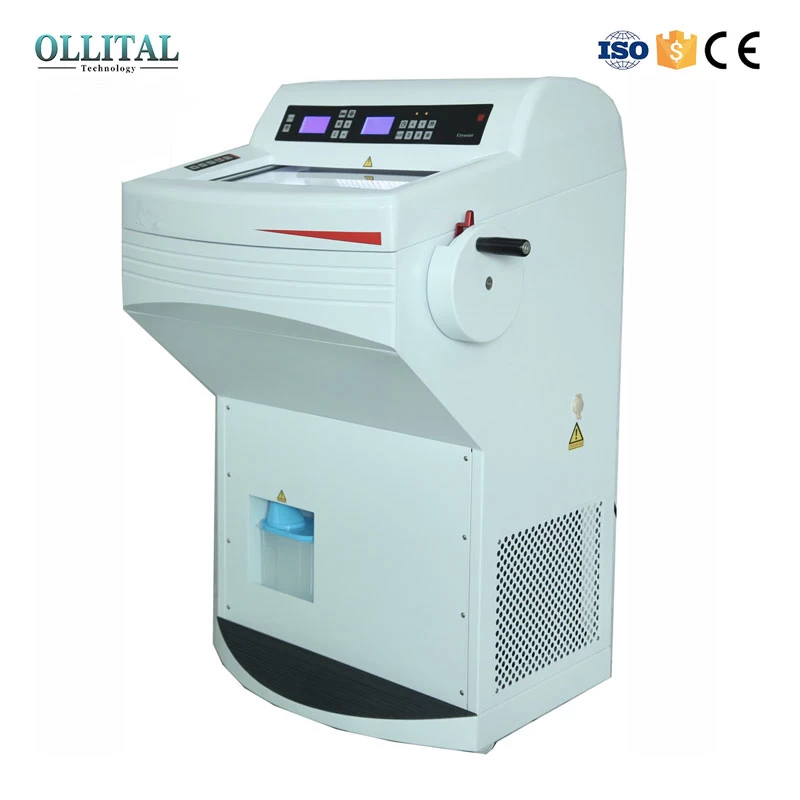

Histology Fast Freezing Tissue Section Cryostat Microtome
|
Technical Specifications
Cryostat microtome RD-2230
|
|
Chamber temperature
|
-10°C~-40°C
|
|
Chamber temperature to -30°C
|
Within 20 min
|
|
Freezing shelf temperature
|
-45°C
|
|
Peltier temperature
|
-60°C
|
|

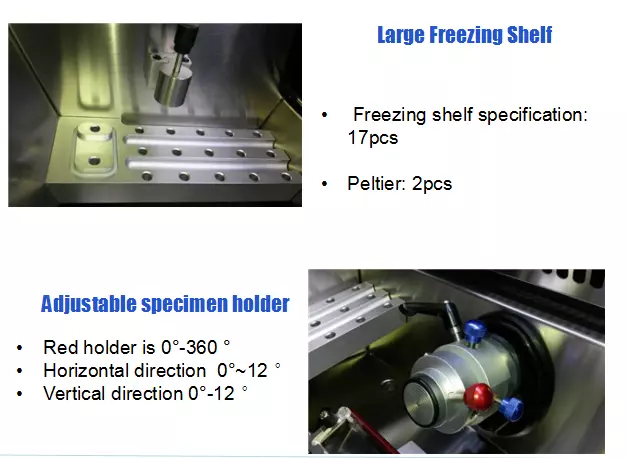

Number of freezing station
|
17
|
|
Peltier number
|
2
|
|
Maximum specimen size
|
45×55mm
|
|
Vertical stroke
|
60mm
|
|
Horizontal stroke
|
20mm
|
|
Section thickness
|
1-100μm
1μm increment from 1 to 20μm
2μm increments from 20 to 40μm
5μm increments from 40 to 100μm
|
|
Trimming thickness
|
10-400μm
5μm increments from 10 to 50μm
10μm increments from 50 to 100μm
50μm increments from 100 to 400μm
|
|
Voltage
|
220V±10%(110Vcan be customized)
|
|
Frequency
|
50Hz
|
|
Power
|
600 W
|
|
Net Weight
|
135 kg
|
|
Size
|
660×640×1150mm
|
|
Packing
|
160kg
790 ×810 ×1336 mm
|
