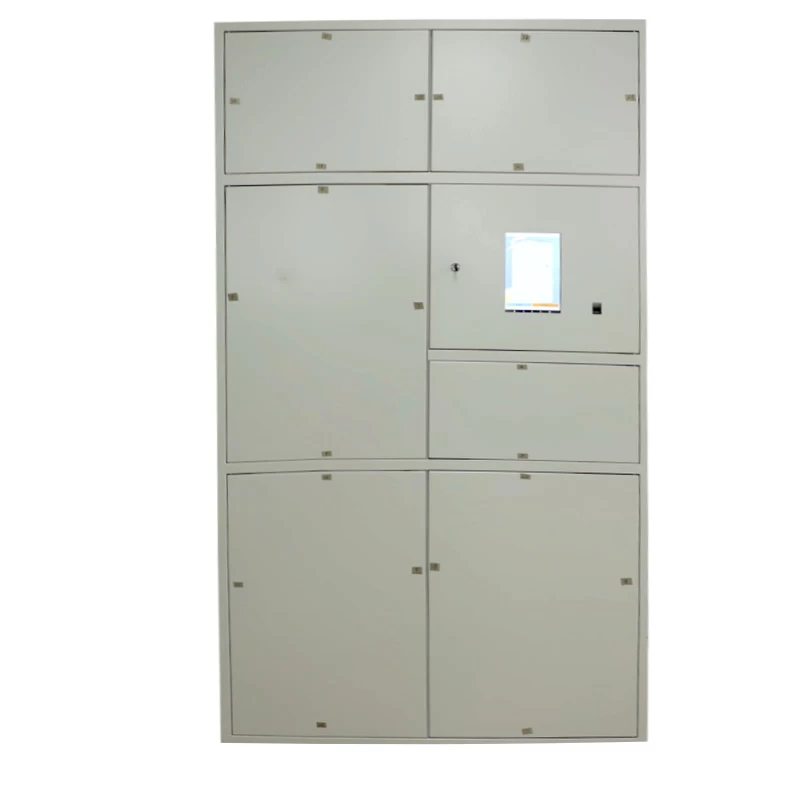

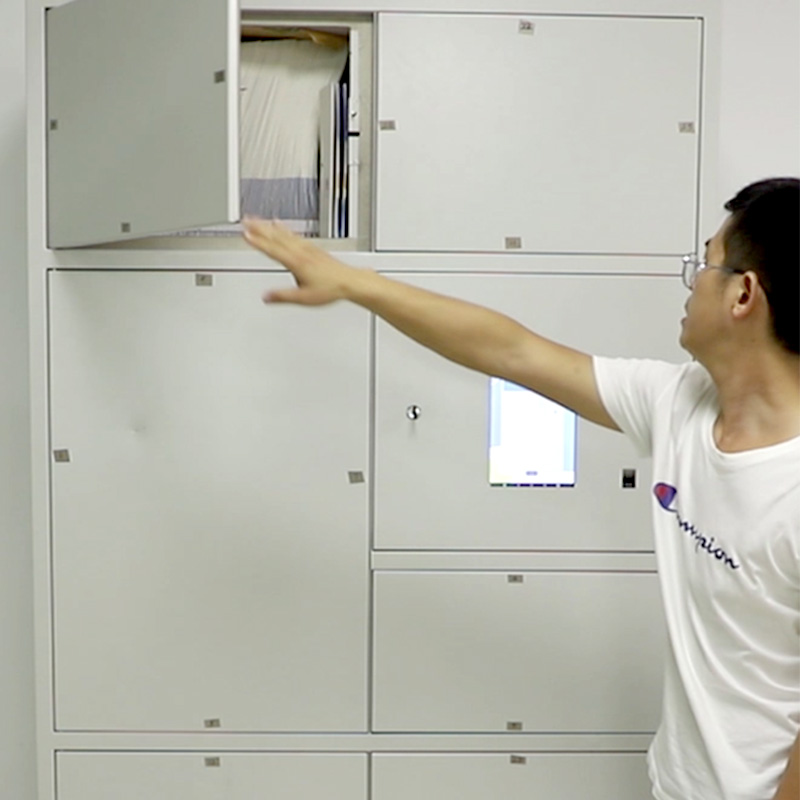

HL7226F RFID Archive Inventory Shelf

RFID Archive Inventory Shelf

·Unique modern design, high quality metal material shelf.

·24 ports reader, with Impinj R2000 chip, long range multi-tag reading.

·Fully Integrated with multiple function.

·Apply to archive inventory, tool tracking, entertainment, equipment rental management, etc;

Feature

Unique modern design, high quality metal material shelf.
24 ports reader, with Impinj R2000 chip, long range multi-tag reading.
Fully Integrated with multiple function.
Apply to archive inventory, tool tracking, entertainment, equipment rental management, etc;

Specifications

Model:	CL7226F
Size:	1100mm420mm2000mm
Weight:	120kg
Capacity:	35L1、53L2、112L*3
Protection Level:	IP3X
UHF RFID
Protocol:	ISO/IEC18000-6C / EPC C1Gen2
Chipset:	Impinj R2000
Reader:	CL7206C24 24 Port Reader
Antenna:	9dbi Flat Circular Antenna. 22 antennas in one shelf
Frequency:	GB: 920MHz~925 MHz 840MHz~845 MHz FCC: 902MHz~928 MHz ETSI: 865MHz~868 MHz JP: 916MHz~920 MHz
RF Output Power:	33dBm±1dB（MAX）
Label Recognition Speed:	>400 times / sec
Frequency Stability:	≤±10ppm
Channel Bandwidth:	<200KHz
Communication Port:	Ethernet interface, 10M/100M adaptive
Work Mode:	Frequency Hopping or Fixed
Features:	Built-in Android6.0 Operating System
	8-inch Display
	Anti-collision protocol, strong multi-tag identification
	Support for intensive reading
	Support antenna detection function
	Support online upgrade
	Support tag data filtering
	Support RSSI perceptible signal strength
Physical:
Working Temperature:	-20℃～70℃
Storage Temperature:	-40℃～85℃
Relative Humidity:	5% RH to 95% RH (non-condensing state)
Housing material:	Electrolytic Plate (Surface Spray)
Power supply:	100-240V~，50/60Hz
Power consumption:	30W (output power 33dBm)
Atmospheric Pressure:	86kPa～108kPa
