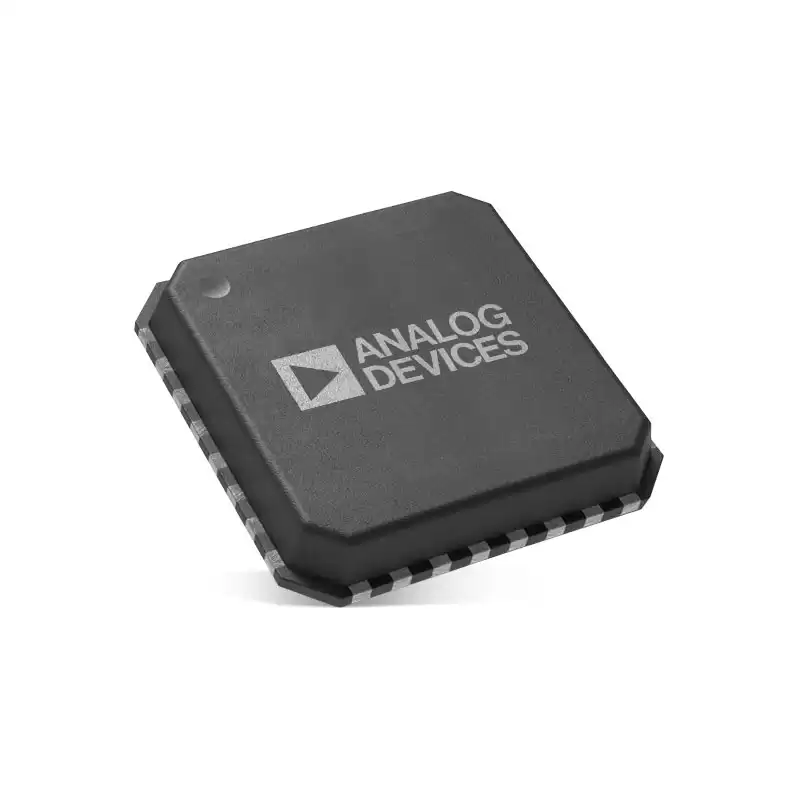

HMC1018ALP4E ADI Attenuators
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
Attenuators |
| Series |
HMC1018A |
| Mounting Style |
SMD/SMT |
| Maximum Frequency |
30 GHz |
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+85 C
|
Package Quantity
|
500 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.001474 oz
|
Introduction
The HMC1018ALP4E is a chip manufactured by Analog Devices Inc. It is a high-performance, wideband digital phase shifter designed for various RF and microwave applications.
The HMC1018ALP4E chip offers a wide frequency range and precise phase shifting capabilities, making it suitable for applications that require accurate phase control in RF and microwave systems.
This chip features a digital phase shifter with a wide phase range and fine resolution, allowing for precise and flexible phase adjustment. It provides high linearity and low insertion loss, ensuring minimal signal distortion and improved system performance.
The HMC1018ALP4E chip operates with a single positive power supply, typically ranging from 3.3V to 5V. It incorporates internal control logic and requires minimal external components, simplifying the overall circuit design.
Application
The HMC1018ALP4E chip is widely used in various industries for accurate phase control in RF and microwave applications. It finds applications in wireless infrastructure, test and measurement equipment, radar systems, and communications systems. With its wide frequency range, precise phase shifting capabilities, and low distortion characteristics, the chip enables precise phase control. Its high-performance features ensure minimal signal distortion and improved system performance. The HMC1018ALP4E chip operates with a single power supply, simplifying system design. Its compact LP4E package and industry-standard pinout facilitate easy integration into diverse system designs. It is a trusted solution for industries seeking accurate phase control in demanding RF and microwave applications.
