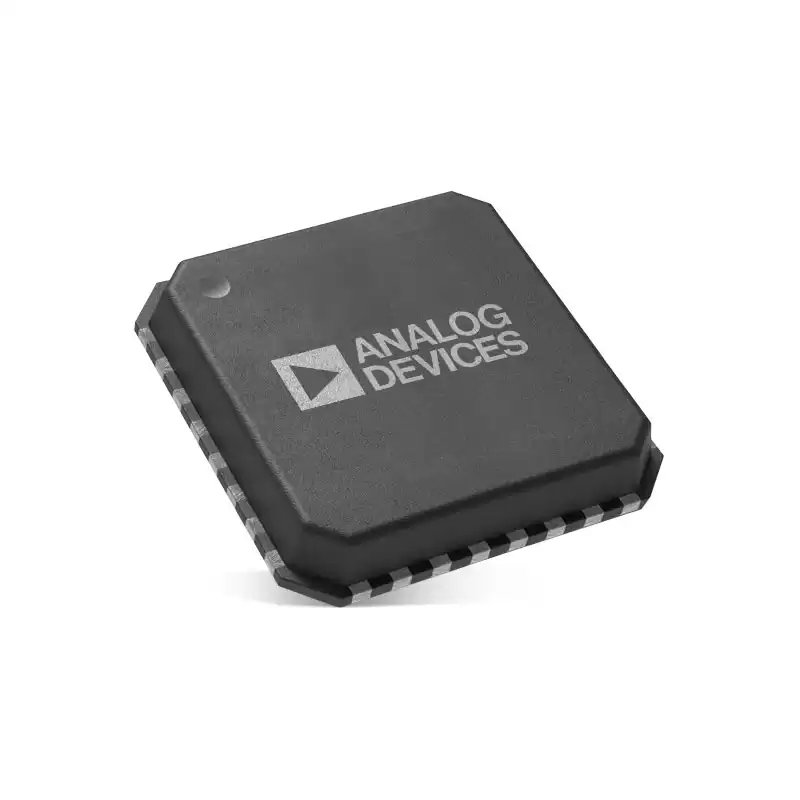

HMC1056LP4BE ADI RF Mixer
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
RF Mixer |
| Series |
HMC1056 |
| Mounting Style |
SMD/SMT |
| RF Frequency |
8 GHz to 12 GHz |
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+85 C
|
Package Quantity
|
500 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.000847 oz
|
Introduction
The HMC1056LP4BE is a chip manufactured by Analog Devices Inc. It is a high-performance, wideband, voltage-controlled amplifier (VCA) designed for various RF and microwave applications.
The HMC1056LP4BE chip offers a wide frequency range and excellent linearity, making it suitable for applications that require precise gain control in RF and microwave systems.
This chip features a voltage-controlled attenuator (VCA) with a wide dynamic range, allowing for accurate and flexible gain adjustment. It provides high linearity and low insertion loss, ensuring minimal signal distortion and improved system performance.
The HMC1056LP4BE chip operates with a single positive power supply, typically ranging from 5V to 15V. It incorporates internal bias circuitry and requires minimal external components, simplifying the overall circuit design.
Application
The HMC1056LP4BE chip is widely used in various industries for precise gain control in RF and microwave applications. It finds applications in wireless infrastructure, test and measurement equipment, radar systems, and communications systems. With its wide frequency range, excellent linearity, and voltage-controlled attenuator, the chip enables accurate and flexible gain adjustment. Its high-performance characteristics ensure minimal signal distortion and improved system performance. The HMC1056LP4BE chip operates with a single power supply, simplifying system design. Its compact LP4BE package and industry-standard pinout facilitate easy integration into diverse system designs. It is a trusted solution for industries seeking precise gain control in demanding RF and microwave applications.
