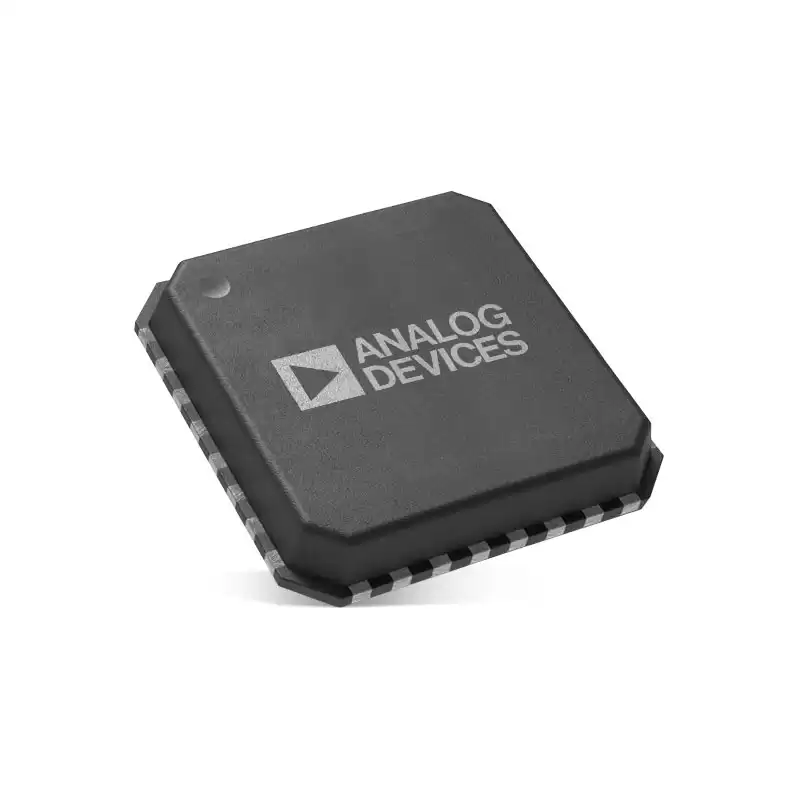

HMC1118LP3DE ADI RF Switch ICs
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
RF Switch ICs |
| Series |
HMC1118 |
| Mounting Style |
SMD/SMT |
| Package / Case |
LFCSP-16 |
| Minimum Frequency |
9 kHZ |
| Maximum Frequency |
13 GHz |
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+85 C
|
Packaging
|
Cut Tape
|
Product Type
|
RF Switch ICs
|
Package Quantity (Bag/Roll/Tray/Tube)
|
500 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.000847 oz
|
Introduction
The HMC1118LP3DE features a compact 3 mm x 3 mm surface-mount package and operates using a single supply voltage of 5 V. The chip also incorporates an integrated bypass mode that allows for easy control of the LNA using a single control pin.
Overall, the HMC1118LP3DE is a high-performance and reliable LNA that offers excellent performance and flexibility for a wide range of RF and microwave applications.
Application
The HMC1118LP3DE is widely used in various industries, including wireless communication, aerospace, military, and test and measurement. It is commonly used in applications such as cellular base stations, satellite communication systems, point-to-point radio links, and radar systems. The high-performance, low noise figure, and wide frequency range of the LNA make it an ideal component for signal amplification and conditioning in these applications. Additionally, the compact size and low power consumption of the HMC1118LP3DE make it well-suited for use in portable and battery-powered devices.
