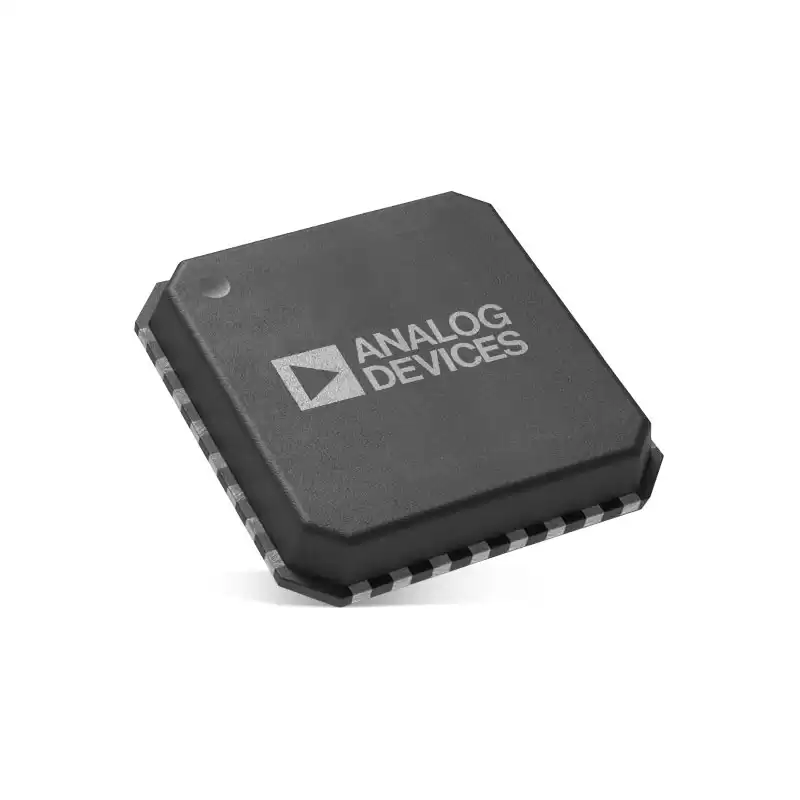

HMC444LP4 ADI RF Amplifier
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
RF Amplifier |
| Series |
HMC444 |
| Mounting Style |
SMD/SMT |
| Package / Case |
QFN-24 |
| Operating Frequency |
9.9 GHz to 11.2 GHz |
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+85 C
|
Product Type
|
RF Amplifier
|
Package Quantity (Bag/Roll/Tray/Tube)
|
50 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.032741 oz
|
Introduction
The HMC444LP4 offers excellent phase noise and spurious performance, making it ideal for use in applications such as synthesizers, phase-locked loops, and frequency converters. The frequency divider is designed to operate over a frequency range of 5 GHz to 22 GHz and can divide input frequencies by factors of 2, 4, 8, and 16.
The HMC444LP4 features a compact 4 mm x 4 mm surface-mount package and operates using a single supply voltage of 3 V to 5 V. The chip also incorporates an integrated enable/disable control that allows for easy control of the frequency divider using a single control pin.
Application
The HMC444LP4 is widely used in various industries, including wireless communication, aerospace, military, and test and measurement. It is commonly used in applications such as synthesizers, phase-locked loops, and frequency converters. The high-performance, low phase noise, and spurious performance of the frequency divider make it an ideal component for frequency synthesis and signal generation in these applications. Additionally, the compact size and low power consumption of the HMC444LP4 make it well-suited for use in portable and battery-powered devices. Overall, the HMC444LP4 is a versatile and reliable frequency divider that can be used in a wide range of applications across different industries, where high frequency division and low phase noise are crucial.
