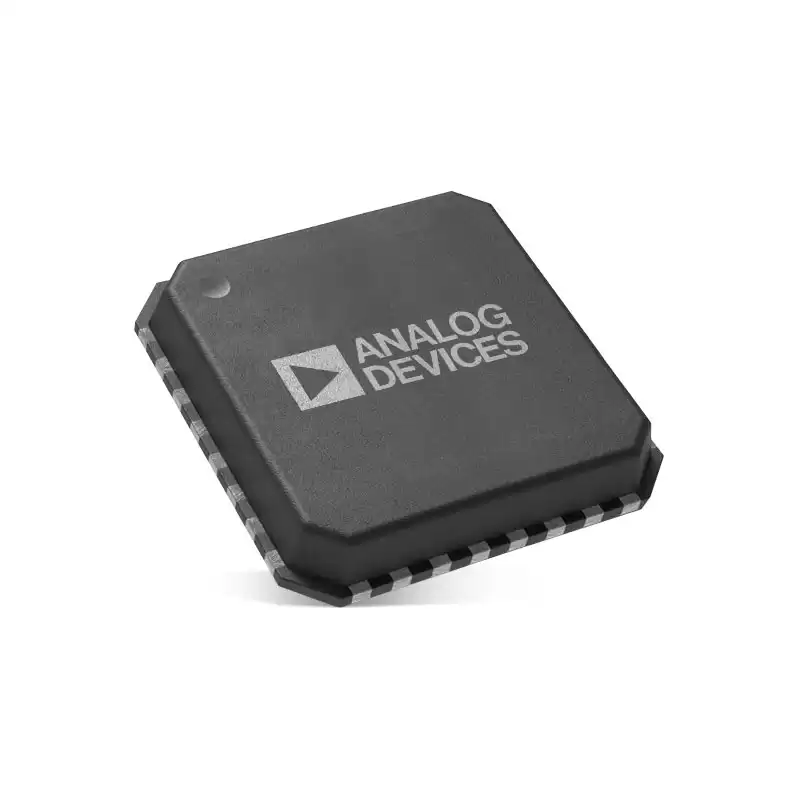

HMC542BLP4E ADI Attenuators
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
Attenuators |
| Series |
HMC542B |
| Mounting Style |
SMD/SMT |
| Maximum Frequency |
4 GHz |
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+85 C
|
Package Quantity
|
500 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.032741 oz
|
Introduction
The HMC542BLP4E is a chip manufactured by Analog Devices Inc. It is a high-performance, wideband frequency doubler designed for various RF and microwave applications.
The HMC542BLP4E chip offers a wide frequency range and excellent harmonic suppression, making it suitable for applications that require frequency doubling with minimal distortion.
This chip features an integrated frequency doubler that generates an output signal at twice the input frequency. It provides high conversion efficiency and low spurious signal generation, ensuring reliable and accurate frequency doubling.
The HMC542BLP4E chip operates with a single positive power supply, typically ranging from 3.3V to 5V. It incorporates internal bias circuitry and requires minimal external components, simplifying the overall circuit design.
With its compact LP4E package and industry-standard pinout, the HMC542BLP4E chip facilitates ease of integration into RF and microwave systems. It is suitable for applications such as wireless infrastructure, test and measurement equipment, radar systems, and communications systems that require frequency doubling with high performance.
Application
The HMC542BLP4E chip is widely used in various industries for accurate frequency doubling in RF and microwave applications. It finds applications in wireless infrastructure, test and measurement equipment, radar systems, and communications systems. With its wide frequency range and excellent harmonic suppression, the chip enables reliable and distortion-free frequency doubling. Its high-performance features ensure minimal spurious signal generation and improved system performance. The HMC542BLP4E chip operates with a single power supply, simplifying system design. Its compact LP4E package and industry-standard pinout facilitate easy integration into diverse system designs. It is a trusted solution for industries seeking accurate frequency doubling in demanding RF and microwave applications.
